Item number: 0214208
4 Variants

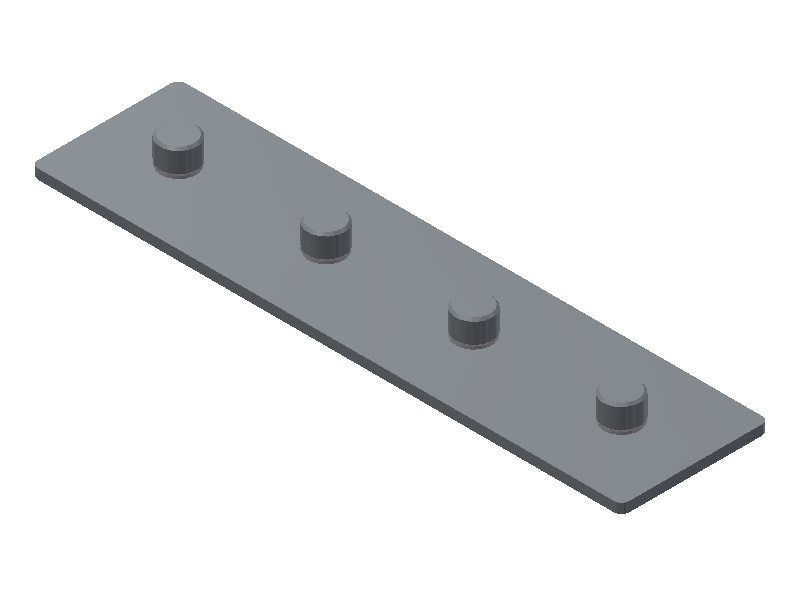

EVG 40/160 JX Straight Connector Plate
Profile is connected end to end.
Can be used to brace L connectors on wide profile.
Forms a rigid connection.
*Note: Includes screws and channel nuts.
Login or create account to access all our content and features!
Variants
0214205
0214206
0214207
0214208
Dimensions DWG
Diameter
6.5 mm
Length
160 mm
Length
140 mm
Length
100 mm
Length
60 mm
Length
20 mm
Width
40 mm
Width
20 mm
General
Weight, max.
186 g
