Item number: 0213008
5 Variants

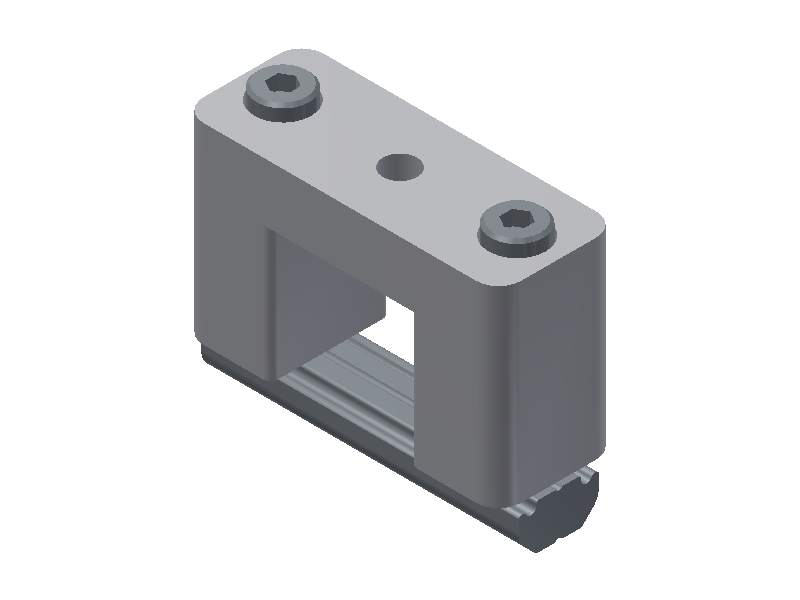

KBV 18-18 L Cross Joint Connector
Login or create account to access all our content and features!
Variants
0213007
0213008
0213009
0213010
0213011
Features
- Bridge style clamp for frame profile cross mounting.
- Allows for full adjustability in two dimensions simultaneously.
Dimensions DWG
Height
18 mm
Height
18 mm
Length
18 mm
Length
18 mm
Length
25 mm
Length
40 mm
Width
25 mm
Width
40 mm
General
Weight
52 - 52 g
