Item number: 0242590
3 Variants

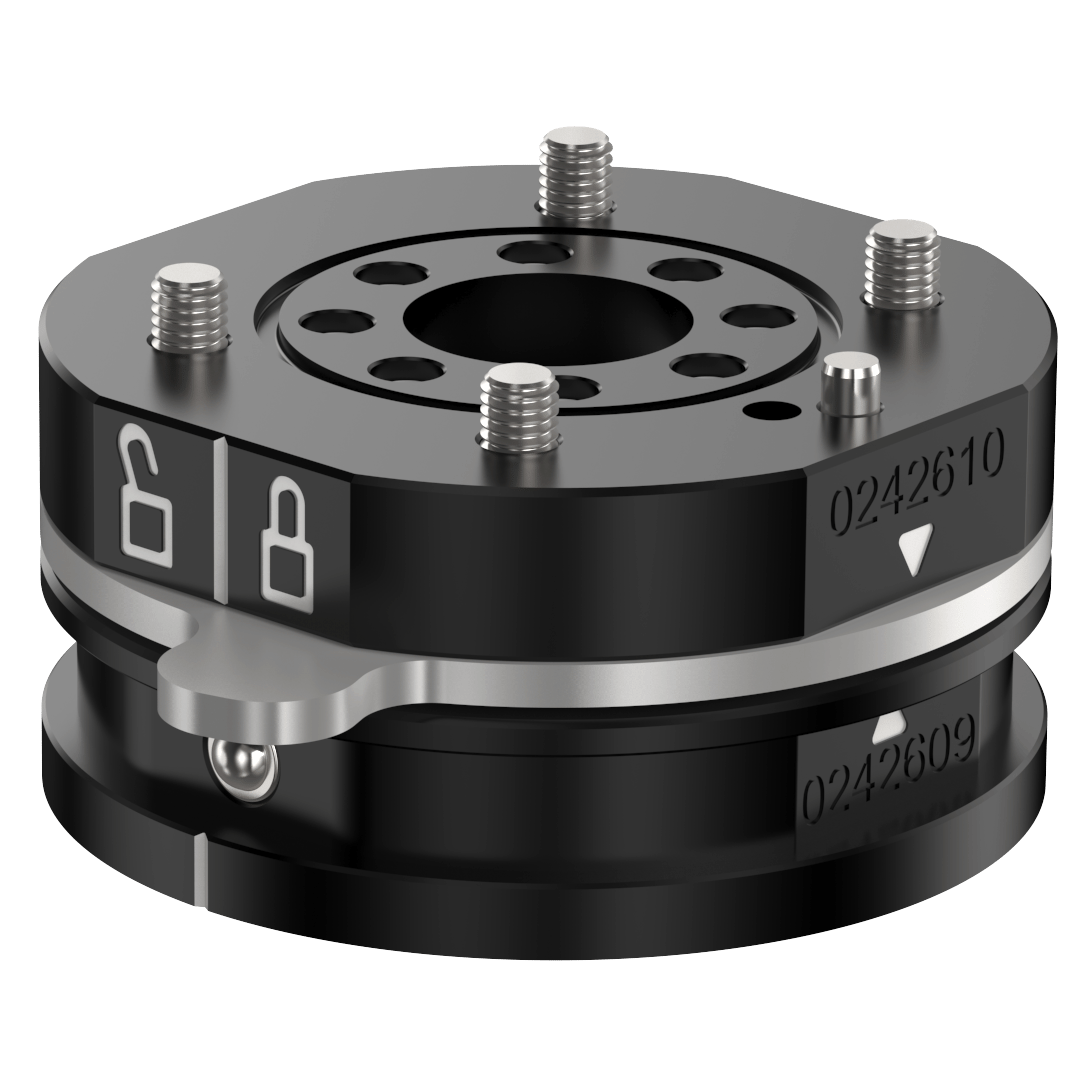

piCOBOT® Tool Changer Complete
piCOBOT® Tool Changer Complete enables flexible changes of end-effectors when a single cobot or robot equipped with one Piab piCOBOT® vacuum pump unit are used...
Read more
Login or create account to access all our content and features!
Variants
- 0242590
- 0242610
- 0242609
Features
- Suitable for both piCOBOT® and piCOBOT® L.
- Change the tool – keep the pump unit – less investment.
- Designed specifically for vacuum with a large orifice enabling high vacuum flow
- Equipped with a lever to lock or unlock the adapter plate of an end-effector, either manually or automatically, when combined with a piCOBOT® docking station (purchased separately).
Automotive
- Kitting picking of parts
Logistics
- Bin picking / Random bin picking
- Boxes and containers
- Kitting
- Robot pick and place and packing
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Robot pick and place and packing
General
Material
Al , Nitrile (NBR) , SS
Tightening torque, max.
1.4 Nm
Weight, min.
363 g
Dimension
Diameter
70 mm
Length (Height total)
33.3 mm
Mechanical data
Load, max.
16 kg
