Número do item: 0209185
73 Variantes

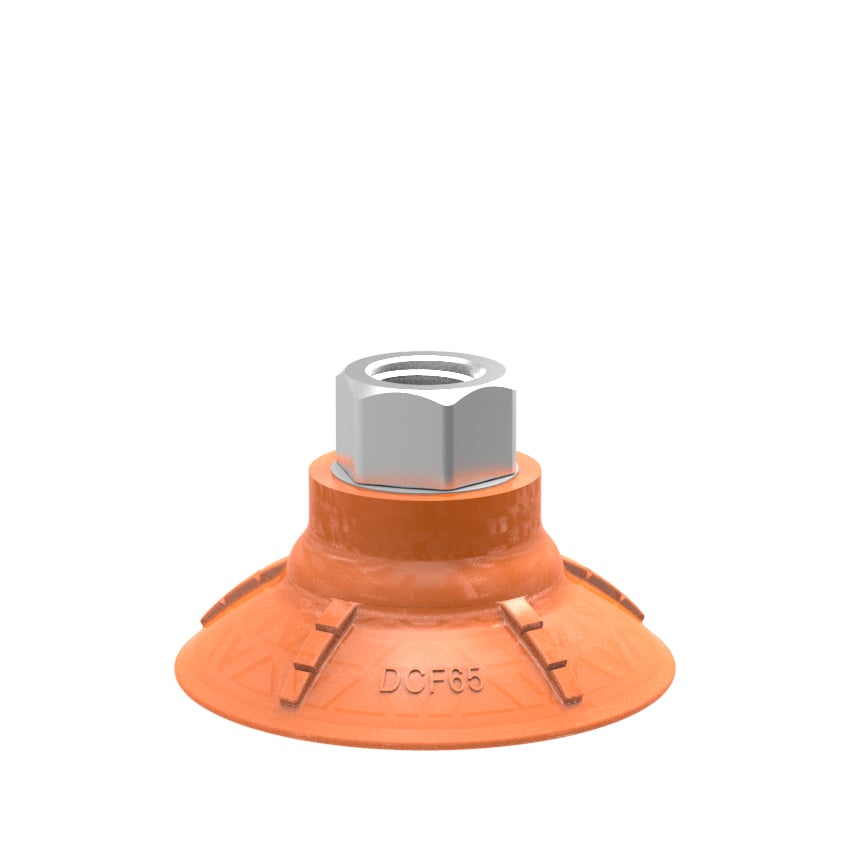

Suction cup DCF65P Polyurethane 60 G3/8" female with mesh filter, 17 mm thread
Piab’s DCF suction cups are optimized for oily metal sheets, featuring a deep concave design and flexible lip for secure grip and reliable sealing—even on curved or uneven surfaces. The DCF cups handle high shear forces and are ideal for fast de-stacking and handling in press lines. Made from DURAFLEX®, they offer excellent wear resistance and elastic memory, ensuring long-lasting, consistent performance.
Faça login ou crie uma conta para acessar todo o nosso conteúdo e recursos!
Tamanho
Acessório
M10x1.5 maleSS
Número do item: 0210594
M10x1.5 maleFiltro de tela, SS
Número do item: 0207654
M14x1 femaleAl
Número do item: 0242507
G 3/8" Long femaleAl
Número do item: 0210589
G 3/8" Long femaleFiltro de tela, Al
Número do item: 0209185
G 1/4" maleFiltro de tela, Al
Número do item: 0207678
G 1/4" maleAl
Número do item: 0210593
G 3/8" male, 1/8" NPSF femaleFiltro de tela, Al
Número do item: 0206536
G 3/8" maleAl
Número do item: 0210590
G 3/8" male, 1/8" NPSF femaleAl
Número do item: 0210606
G 1/4" femaleAl
Número do item: 0210592
G 1/4" femaleFiltro de tela, Al
Número do item: 0206794
G 3/8" femalePA
Número do item: 0210171
G 3/8" femaleAl
Número do item: 0210588
G 3/8" femaleFiltro de tela, Al
Número do item: 0206537
G 3/8" femaleFiltro de tela, PA
Número do item: 0206538
3/8" NPT femaleBrass
Número do item: 0210591
3/8" NPT femaleFiltro de tela, Al
Número do item: 0206535
3/8" NPT femaleFiltro de tela, Brass
Número do item: 0210615
T-slot Al
Número do item: 0210595
T-slot Filtro de tela, Al
Número do item: 0206539
Não é compatível com o ajuste ou tamanho selecionado. A escolha desta opção ajustará o tamanho/acessório.
Características
- Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
- Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
- Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
- Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
