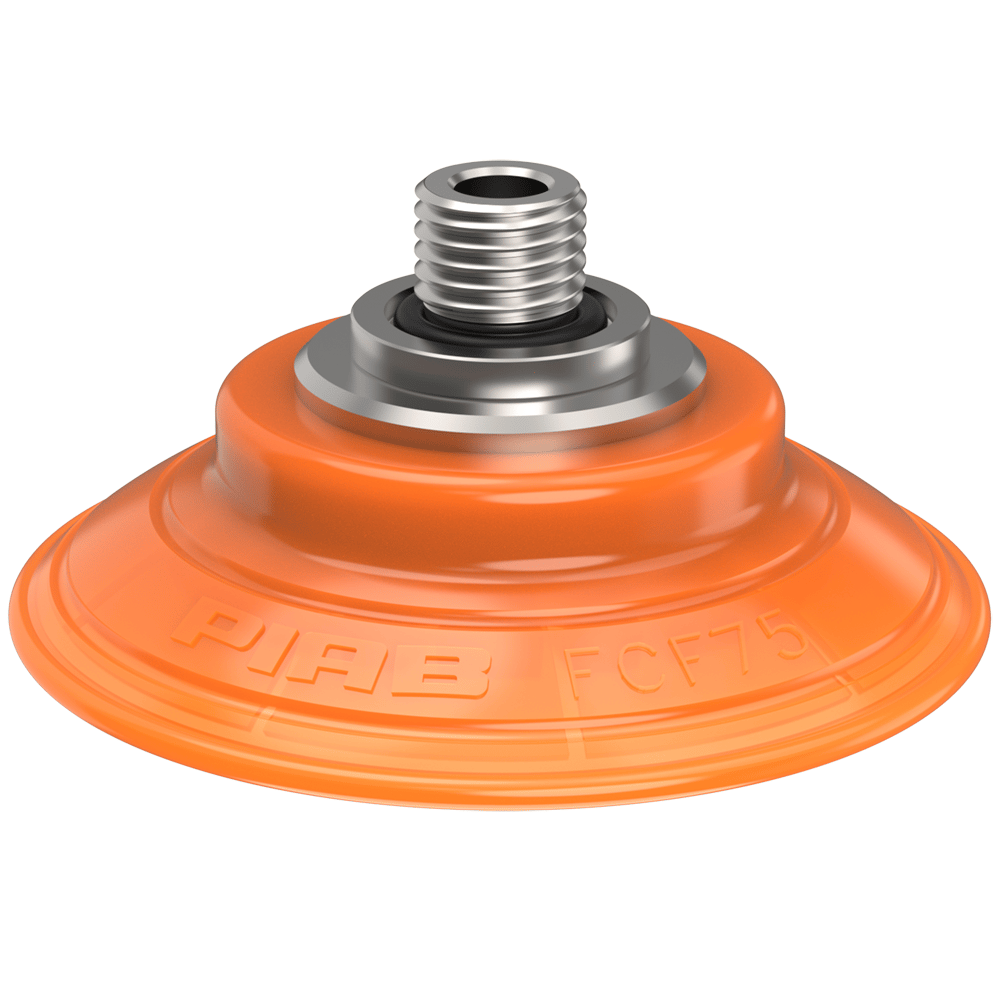

Suction Cup FCF75P.5R.G96W-Fitting G1/4" Male - 1
품목 번호: 02.13.910
9 변형

Suction Cup FCF75P.5R.G96W-Fitting G1/4" Male

The FCF-P design is suitable for oily surfaces, slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines. The...
더 읽기
로그인하거나 계정을 생성하여 모든 콘텐츠와 기능에 액세스하세요!
다운로드이메일로 공유

변형

  • 흡입 컵 FCF75P 폴리우레탄 55/60, G3/8" 수, 메쉬 필터 포함
    FCF75P.5R.G45M
  • Suction cup FCF75P Polyurethane 55/60, G3/8" female
    FCF75P.5R.G45W
  • Suction cup FCF75P Polyurethane 55/60, M10x1.5 male
    FCF75P.5R.M10M
  • Suction cup FCF75P Polyurethane 55/60, 3/8" NPT female
    FCF75P.5R.N47W
  • Suction cup FCF75P Polyurethane 55/60, G3/8" female, plastic thread
    FCF75P.5RC.G56WC
  • Suction cup FCF75P Polyurethane 55/60, G3/8" female, 17 mm thread
    FCF75P.5R.G65W
  • Suction cup FCF75P Polyurethane 55/60, T-slot, with mesh filter
    FCF75P.4R.T1M
  • Suction cup FCF75P Polyurethane 55/60, G1/4" female
    FCF75P.5R.G75W
  • Suction Cup FCF75P.5R.G96W-Fitting G1/4" Male
    02.13.910

특징

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "FCF" design is suitable for slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines.
  • The suction cups have support cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
