New

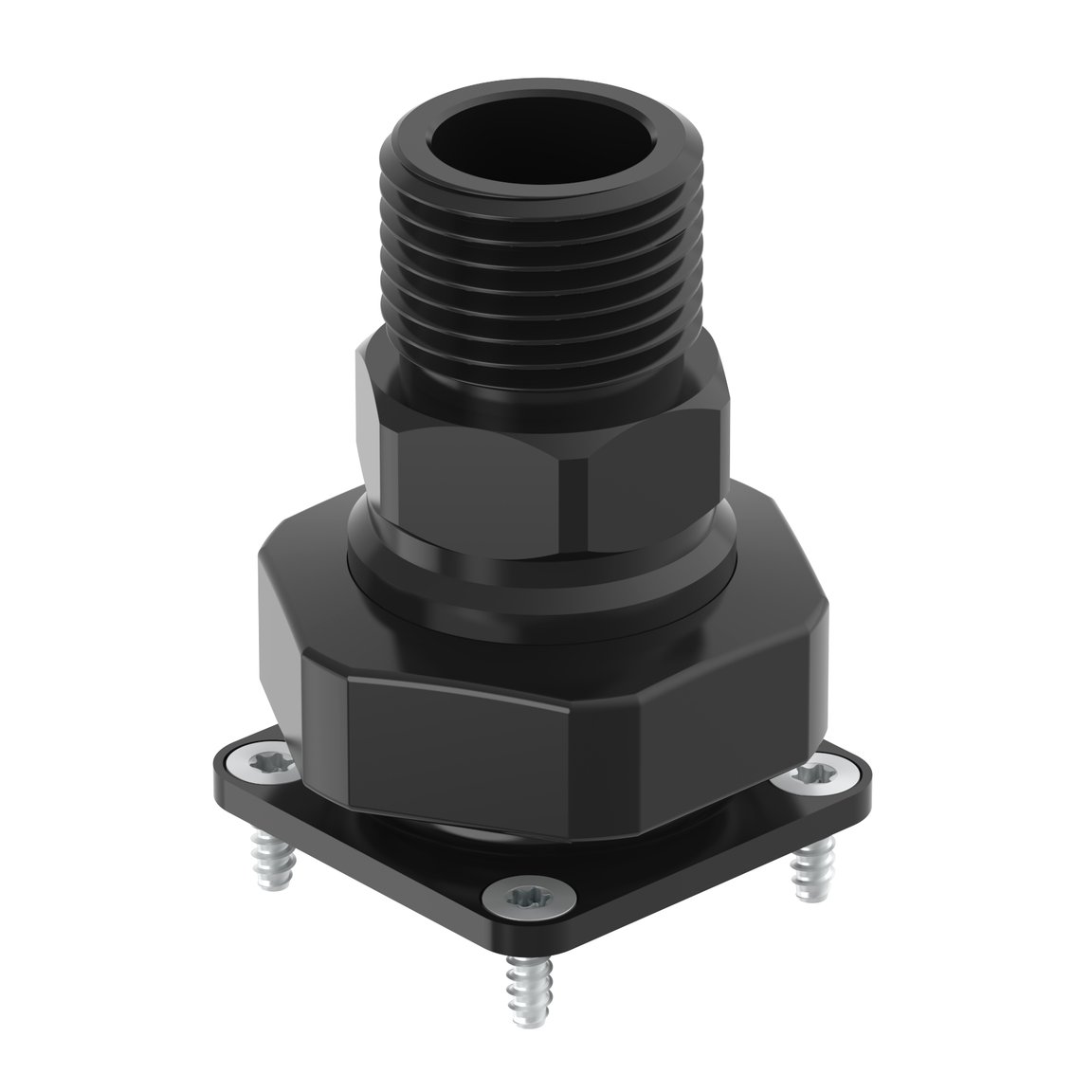

Swivel adapter G3/4" cpl. - NBR, EPDM, FKM - 1
New

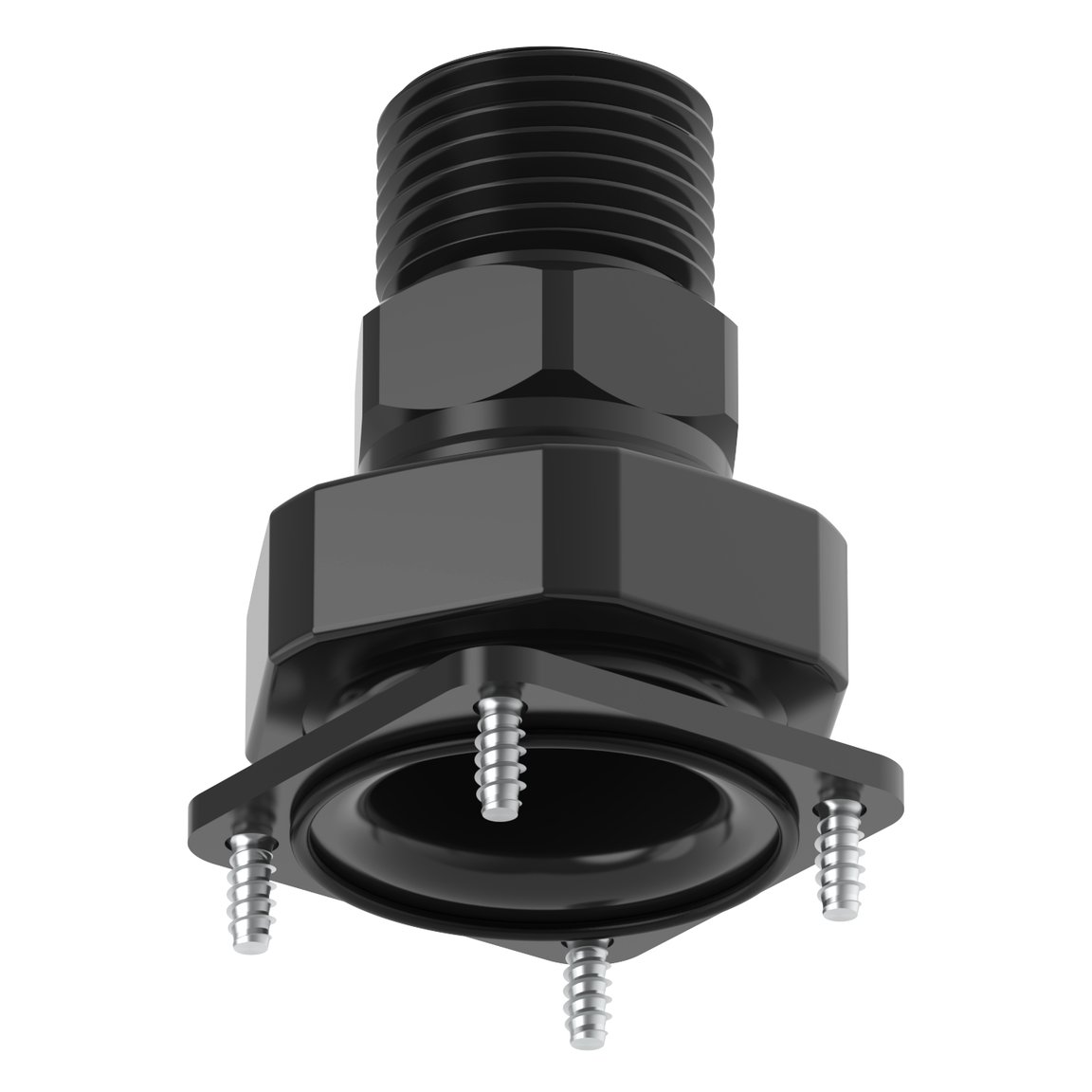

Swivel adapter G3/4" cpl. - NBR, EPDM, FKM - 2
Item number: 0250287
6 Variants

Swivel adapter G3/4" cpl. - NBR, EPDM, FKM

The Swivel Adapters for piCLASSIC™ Neo allows flexible positioning for both vacuum connections and exhaust air connections.It enables a vacuum filter to be used with the pump, minimizing downtime and service efforts. The adapter is rotatable until fixed with the locking nut, supporting installation efforts in tight spaces or hard-piped systems.
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Swivel adapter G3/4" cpl. - NBR, EPDM, FKM
    0250287
  • Swivel adapter G1" cpl. - NBR, EPDM, FKM
    0250289
  • Swivel adapter G3/4" male - NBR, EPDM, FKM
    0250283
  • Swivel adapter 3/4" NPT male - NBR, EPDM, FKM
    0250285
  • Swivel adapter G1" male - NBR, EPDM, FKM
    0250286
  • Swivel adapter 3/4" NPT cpl. - NBR, EPDM, FKM
    0250288

Features

  • Rotatable / Swivel function before locking for easy positioning and installation.
  • Enables a vacuum filter to be used with the pump, up to G1" size from Piab.
  • Available as complete (“cpl”) adapter (including connection plate) or complementary adapter (“male”) (without connection plate) for piCLASSIC™ Neo.
  • “Swivel adapter male” is compatible with piCLASSIC™ Neo vacuum port when the pump has been pre-configured for swivel adapter as vacuum connection.
  • “Swivel adapter cpl.” can be mounted on piCLASSIC™ Neo vacuum port when the pump has not been pre-configured for swivel adapter as vacuum connection in the piCLASSIC™ Neo configurator, or on any piCLASSIC™ Neo exhaust port.
