Item number: 0243813
3 Variants

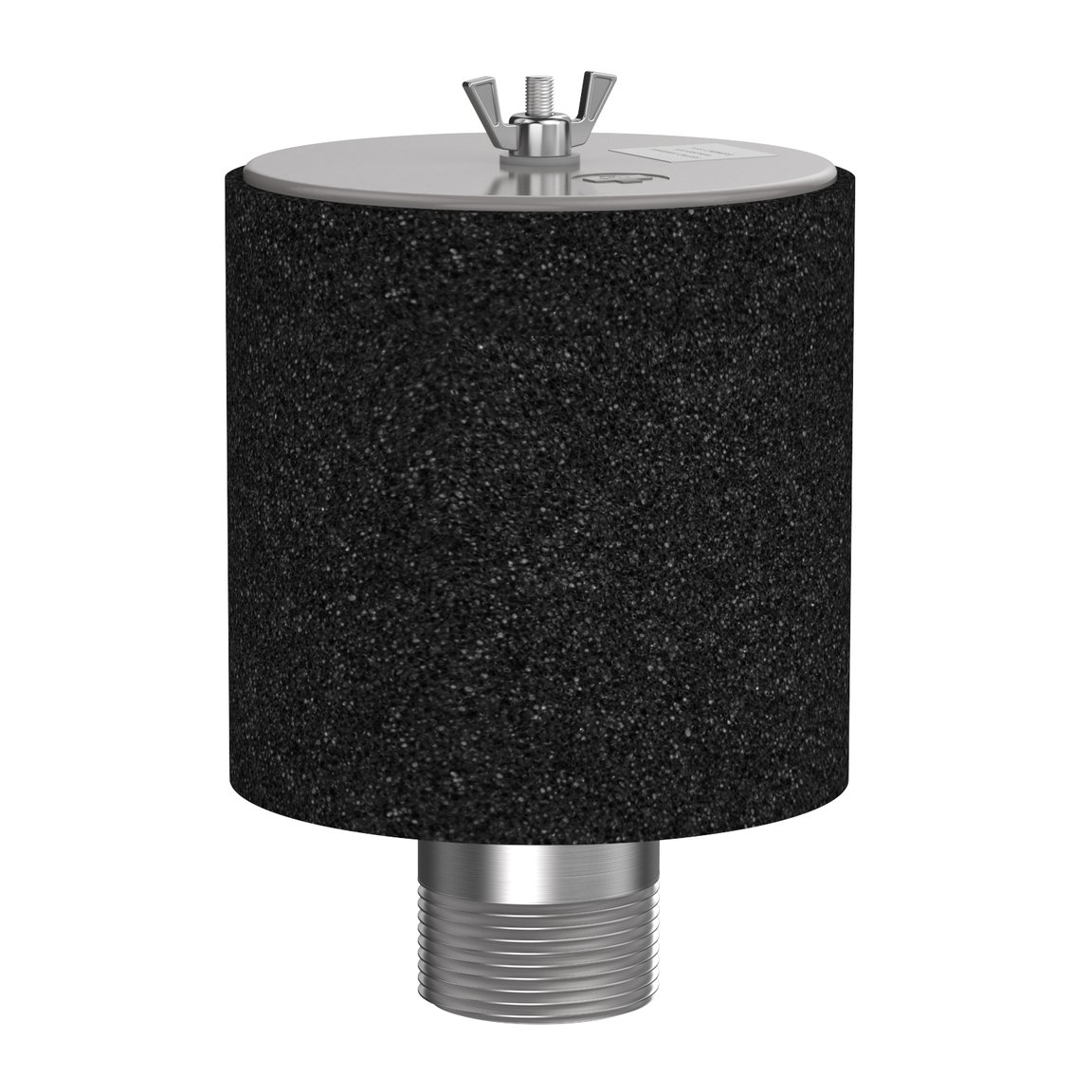

Air inlet filter 3/4" Standard
Air inlet filters prevent atmospheric and air-carried dust & particles from entering the conveying system through the adjustable air inlets of the feed adapters, resulting in a contained material transport through the system. At the same time, they prevent the conveyed material from leaking out from the feed adapters' adjustable air inlets, e.g. when fluidization is used. When an Air Inlet filter is added to Piab’s feed adapter, it prevents cross-contamination. It is compatible with all Piab feed adapter types, the electrical Pipeline emptying unit, the Air carrying unit, or can be mounted on other air inlets in the setup.
Login or create account to access all our content and features!
Variants
- 0243813
- 0243814
- 0243815
Features
- Suitable for general industrial applications.
- Exposed element for optimal air flow & low restriction.
- Heavy gauge base with low pressure drop outlet pipe and center bracket design.
- Corrosive-resistant gray powder coat carbon steel.
- Simple filter replacement element.
- Temperature range (continuous): -26°C [ -15°F ] to 104°C [ +220°F ]
- Polyester: ≥ 99% removal efficiency standard to 5 micron.
