3.9 N
6.9 N
8 N
Select variant
-
0206205Suction cup F-BX25 Silicone detectable, FCM
-
0207071Suction cup F-BX25 Silicone G1/4" male SS, detectable, FCM
-

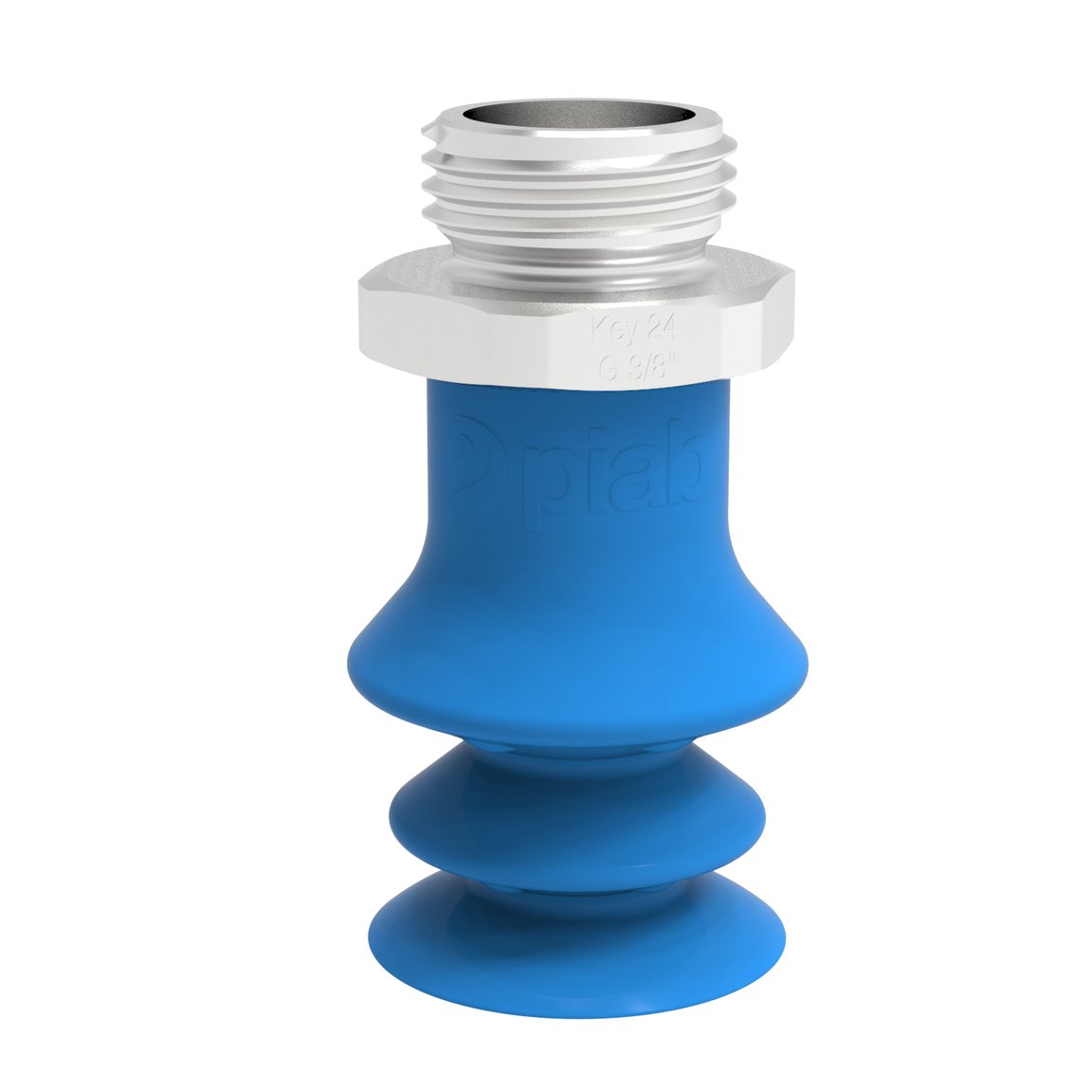

0207072 Suction cup F-BX25 Silicone G3/8" male SS, detectable, FCM
-
0207073Suction cup F-BX25 Silicone 1/4" NPT male SS, detectable, FCM
-
0207074Suction cup F-BX25 Silicone 3/8" NPT male SS, detectable, FCM
-
0207075Suction cup F-BX25 Silicone G1/4" male composite, detectable, FCM
-
0207076Suction cup F-BX25 Silicone G3/8" male composite, detectable, FCM
-
0207077Suction cup F-BX25 Silicone 1/4" NPT male composite, detectable, FCM
-
0207078Suction cup F-BX25 Silicone 3/8" NPT male composite, detectable, FCM
-
Description
-
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for frozen and raw food.
- Excellent grip on food with irregular surfaces and different heights, even at fast speeds and accelerations
- Available with male threaded food grade, detectable plastic fittings or acid proof stainless steel fittings.
- Easy to clean with hygienic design. No dust/dirt pockets.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled food product
-
Specifications
General
ApplicationFood contact materials (FDA & EU), detectableSuction cup shapeMultibellowsMaterialSILDETFCM, ASTM316LSuction cup modelF-BXTightening torque, max.13 NmWeight27.9 gVolume5.1 cm³Suction cup modelF-BX25Movement, vertical max.15.5 mmCurve radius, min.9 mmFitting
Fitting optionNoneFitting size3/8"Fitting styleMaleFitting typeG-threadDimension
Height42 mmOuter diameter, actuated26 mmOuter diameter26 mmPerformance - lifting forces
F-BX25
10 -kPa20 -kPa40 -kPa2.9 N4.6 N7.3 NMaterial
NameSILDETFCMColourBlueTemperature-40 - 200 °CHardness40 °Shore ASILDETFCMAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++ -
Industries
Logistics
- Kitting
Packaging
- Direct food contact
-
