Suction cup BL30-2 Chloroprene, G1/4" male, with mesh filter - 1
Item number: BL30-2.10.04AB
22 Variants

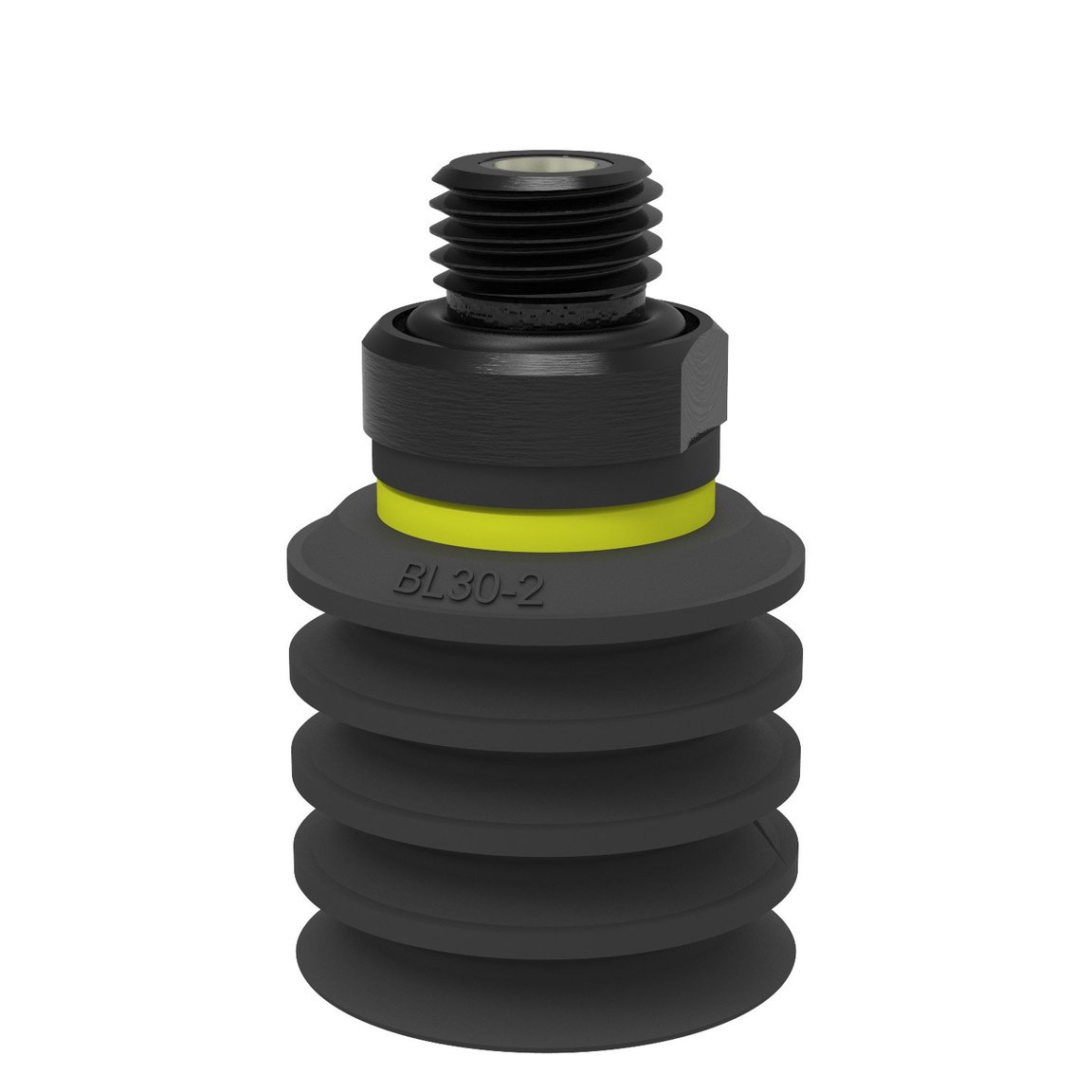

Suction cup BL30-2 Chloroprene, G1/4" male, with mesh filter

The same applications as for short bellows but can cope with greater differences in levels due to the longer lifting movement. Not suitable for use with deep va...
Login or create account to access all our content and features!
DownloadsShare via email

Variants

  • Suction cup BL30-2 Chloroprene, 1/8" NPSF female
    BL30-2.10.04AA
  • Suction cup BL30-2 Chloroprene, G1/4" male, with mesh filter
    BL30-2.10.04AB
  • Suction cup BL30-2 Chloroprene, 1/4" NPT male, with mesh filter
    BL30-2.10.04AC
  • Suction cup BL30-2 Chloroprene, G3/8" male, with mesh filter
    BL30-2.10.04AD
  • Suction cup BL30-2 Chloroprene, 3/8" NPT male, with mesh filter
    BL30-2.10.04AE
  • Suction cup BL30-2 Chloroprene, 1/8" NPSF female, with mesh filter
    BL30-2.10.04AG
  • Suction cup BL30-2 Chloroprene, 1/8" NPSF female, with dual flow control valve
    BL30-2.10.04DA
  • Suction cup BL30-2 Chloroprene, G1/4" male, with dual flow control valve
    BL30-2.10.04DB
  • Suction cup BL30-2 Silicone, 1/8" NPSF female
    BL30-2.20.04AA
  • Suction cup BL30-2 Silicone, G1/4" male, with mesh filter
    BL30-2.20.04AB
  • Suction cup BL30-2 Silicone, 1/4" NPT male, with mesh filter
    BL30-2.20.04AC
  • Suction cup BL30-2 Silicone, G3/8" male, with mesh filter
    BL30-2.20.04AD
  • Suction cup BL30-2 Silicone, 3/8" NPT male, with mesh filter
    BL30-2.20.04AE
  • Suction cup BL30-2 Silicone, 5x1/8" NPSF female
    BL30-2.20.04AF
  • Suction cup BL30-2 Silicone, 1/8" NPSF female, with mesh filter
    BL30-2.20.04AG
  • Suction cup BL30-2 Silicone, 1/8" NPSF female, with dual flow control valve
    BL30-2.20.04DA
  • Suction cup BL30-2 Silicone, G1/4" male, with dual flow control valve
    BL30-2.20.04DB
  • Suction cup BL30-2 Silicone, 1/4" NPT male, with dual flow control valve
    BL30-2.20.04DC
  • Suction cup BL30-2 Silicone, 1/8" NPSF female, PA
    BL30-2.20.04CA
  • Suction cup BL30-2 Chloroprene, 1/8" NPSF female, PA
    BL30-2.10.04CA
  • Suction cup BL30-2 Chloroprene
    BL30-2.10
  • Suction cup BL30-2 Silicone
    BL30-2.20

Features

  • Suitable for level adjustment.
  • Lifting movement to separate small and thin objects.
  • Less suitable when the lifting force is parallel to the surface of the object.
  • Optional reinforcement rings made of polyamide.
