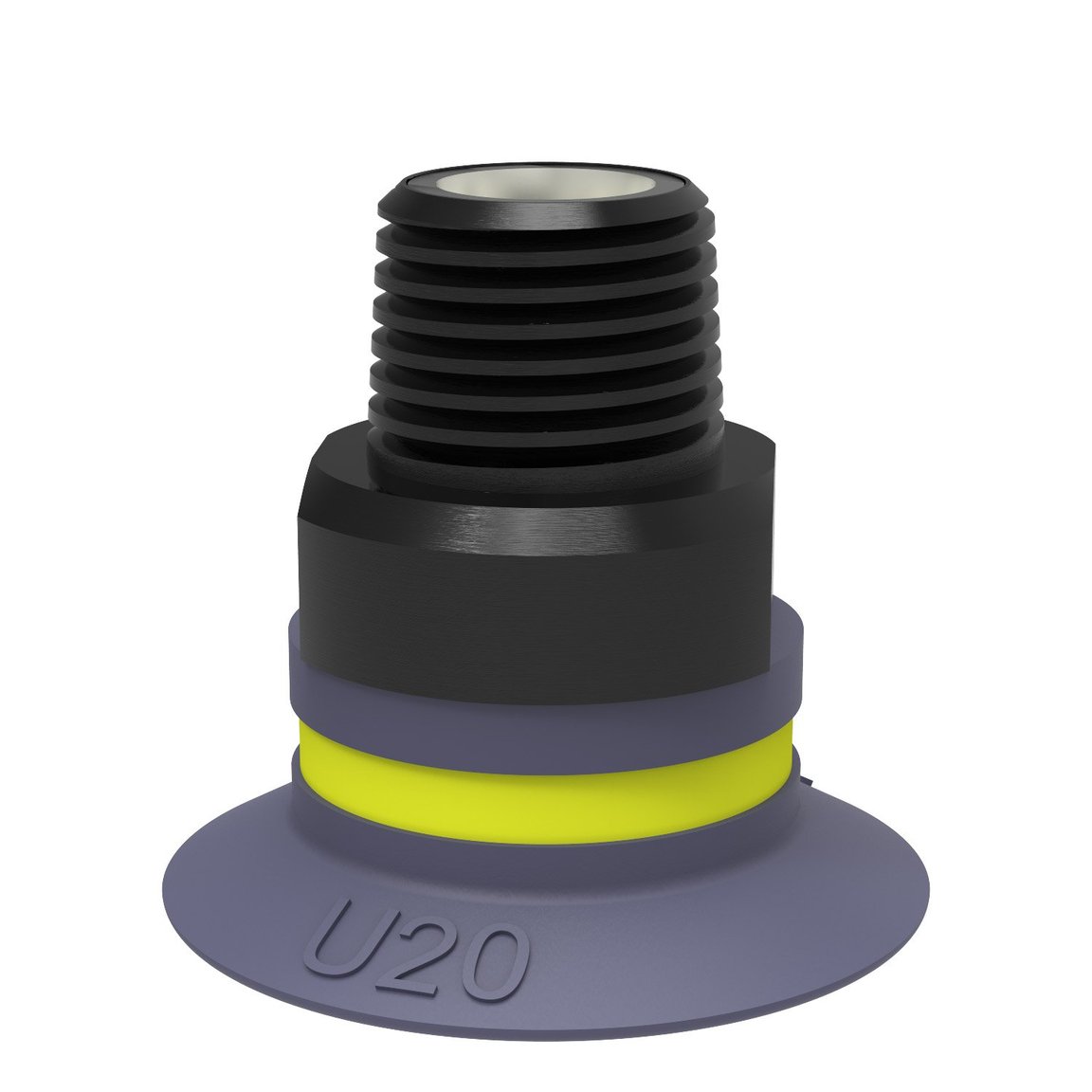

Item no: 9906870
Suction cup U20 HNBR, G1/8" male, with mesh filter and dual flow control valve
For handling objects with flat or slightly curved surfaces.
Read more-
Description
For handling objects with flat or slightly curved surfaces.
-
Features
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
-
Specifications
General
ApplicationHighLowTempCup, MarkFree, PlasticInjectionMoldedParts, GlassHandlingSuction cup shapeUniversalMaterialHNBRLeakage flow, max.0.06 Nl/sSuction cup modelUValve restriction0.7 mmWeight1.2 gVolume1 cm³Suction cup modelU20Movement, vertical max.2.5 mmCurve radius, min.13 mmFitting
Fitting optionDFCV, FMFitting size1/8"Fitting styleMaleFitting typeG-threadDimension
Height19.5 mmOuter diameter22 mmPerformance - lifting forces
U20
20 -kPa60 -kPa90 -kPa5.9 N8.8 N9.8 NMaterial
NameHNBR50ColourBlueTemperature-30 - 140 °CHardness50 °Shore AHNBR50Alcohol++Concentrated acids+Ethanoln/aHydrolysis++Methanoln/aOil+++Oxidation+++Petrol+++Wear resistance+++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
