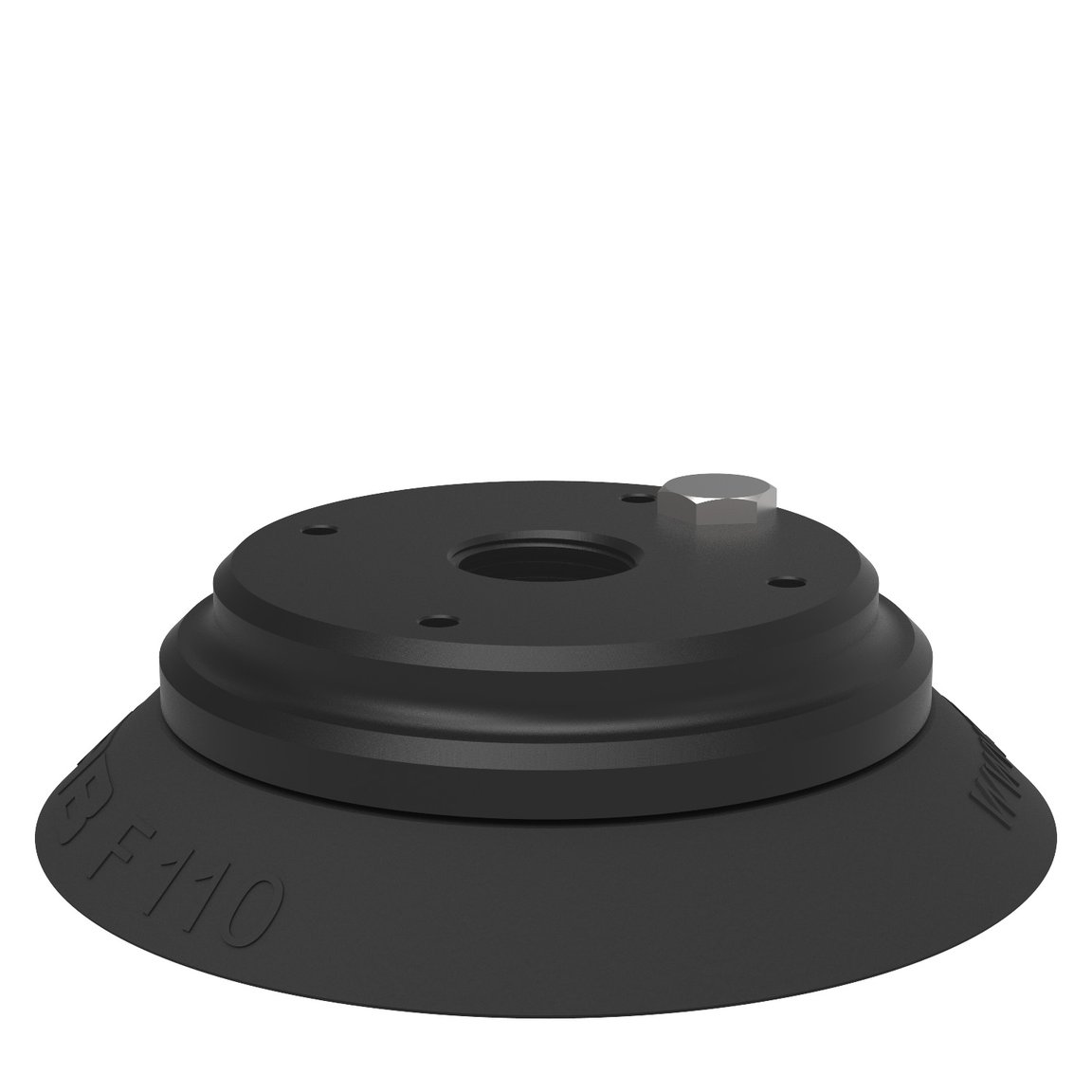

Suction cup F110 Nitrile-PVC, G1/2" female Al, with mesh filter

Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.

Check availability

Request quote

Description

Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
Specifications
General

Application

Dry sheet metal

Suction cup shape

Flat

Material

Nitrile-PVC (NPV)

Suction cup model

F

Weight

66 g

Volume

70 cm³

Suction cup model

F110

Movement, vertical max.

4 mm

Curve radius, min.

250 mm

Fitting

Fitting option

Filter mesh

Fitting size

1/2"

Fitting style

Female

Fitting type

G-thread

Dimension

Height

32 mm

Outer diameter

112 mm

Performance - lifting forces

F110

20 -kPa

60 -kPa

90 -kPa

140 N

420 N

560 N

140 N

250 N

300 N

Material

Name

NPV

Colour

Black

Temperature

0 - 90 °C

Hardness

50 °Shore A

NPV

Alcohol

++

Concentrated acids

+

Ethanol

n/a

Hydrolysis

++

Methanol

n/a

Oil

+++

Oxidation

++

Petrol

+++

Wear resistance

+++

Weather and ozone

++

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
Resources

CAD

Suction cup F110 Nitrile-PVC, G1/2" female Al, with mesh filter

Data sheet

Suction cup F110 Nitrile-PVC, G1/2" female Al, with mesh filter

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

XLF – Safe solution for sheet handling

Vacuum Automation - Improve your productivity and energy efficiency

Certificates

RoHS Compliance Statement Suction cups

Certificate of conformaty - EC1935/2004.

White papers

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
Accessories/Spare parts
Accessories
- 3150038PSuction cup F110 Nitrile-PVC with washer
- 3150038SSuction cup F110 Silicone with washer
- 3150038TSuction cup F110 HNBR with washer
- 3150132SSuction cup F110 Silicone
- 3150132TSuction cup F110 HNBR
- 0100557Fitting 110 G3/8" female, with mesh filter
- 0100559Fitting 110, 3/8" NPSF female, with mesh filter
- 0100563Fitting 110, G1/2" female, with cone valve
- 3250007Fitting G1/2" female Al, with mesh filter
Spare parts
- 3150132PSuction cup F110 Nitrile-PVC
- 0100561Fitting 110, G1/2" female, with mesh filter
