Item no: 0205723

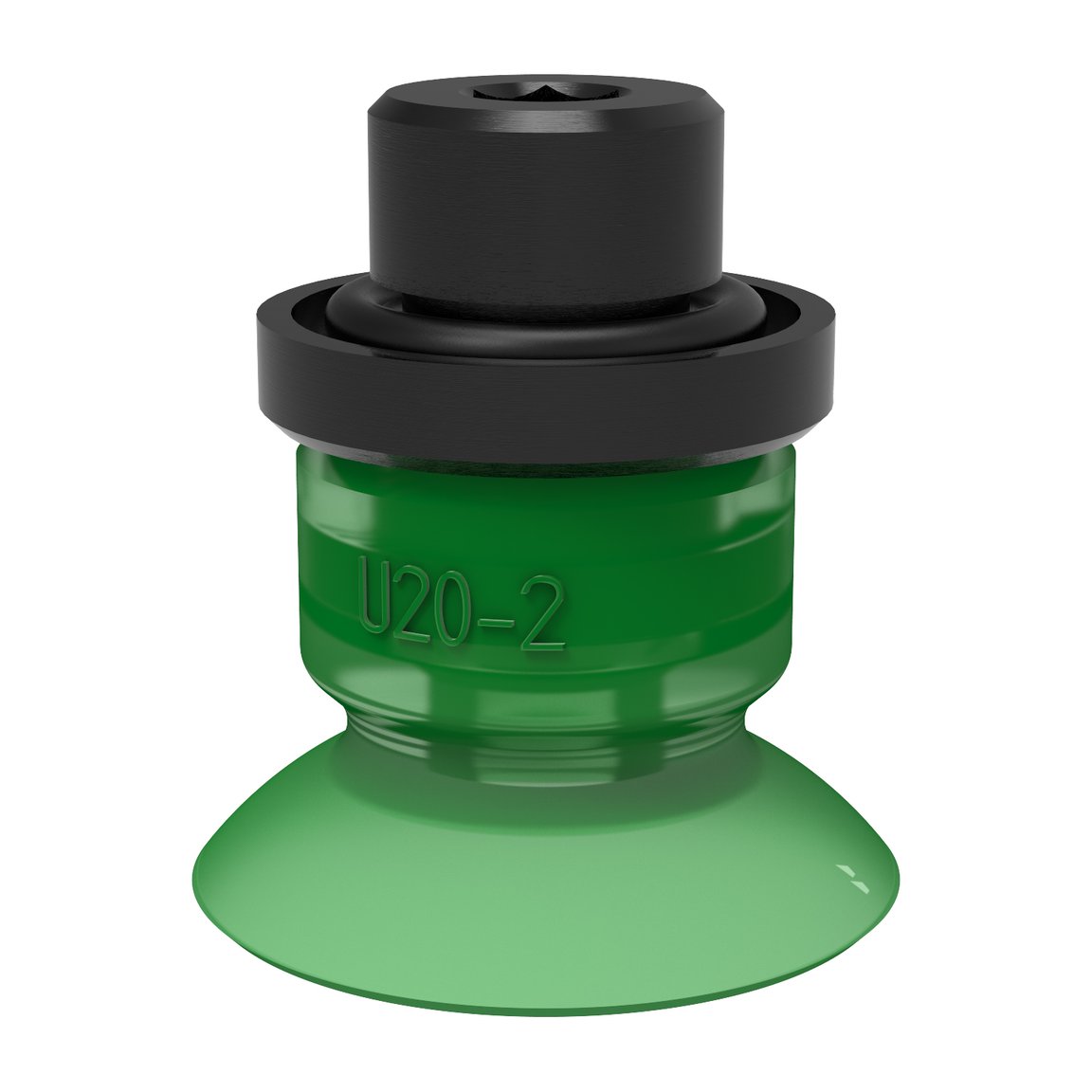

Suction cup U20-2P Polyurethane 60, 1/8" Male
The U-P suction cup is designed for handling paper in bookbinding applications. It is made of DURAFLEX® and has 2-3 times longer lifetime than conventional cups in the market. For increased flexibility the cup is available in the three different qualities of 40, 50 & 60 Shore, which make it possible to run different paper qualities with increased speed and more reliable production.
Read more-
Description
The U-P suction cup is designed for handling paper in bookbinding applications. It is made of DURAFLEX® and has 2-3 times longer lifetime than conventional cups in the market. For increased flexibility the cup is available in the three different qualities of 40, 50 & 60 Shore, which make it possible to run different paper qualities with increased speed and more reliable production.
-
Features
- Long life time suction cup
- Suitable for several book binding applications
- Easy to handle different paper qualities due to the possibilities to order the U20-2P in three different shore
- DURAFLEX® are suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
-
Specifications
General
ApplicationMarkFree, BagOpeningThinPaperSuction cup shapeUniversalMaterialPU60, AL, NBRSuction cup modelU-PWeight4.2 gVolume0.7 cm³Suction cup modelU20-2P PU40Movement, vertical max.5 mmCurve radius, min.9 mmFitting
Fitting optionNoneFitting size1/8"Fitting styleMaleFitting typeG-threadDimension
Height22.9 mmOuter diameter20.5 mmPerformance - lifting forces
U20-2P PU40
20 -kPa60 -kPa90 -kPa1.5 N3 N6 NMaterial
NamePU60ColourGreenTransparentTemperature10 - 50 °CHardness60 °Shore APU60Alcoholn/aConcentrated acids+Ethanol+Hydrolysis+Methanol-Oil+++Oxidation-Petrol+Wear resistance+++Weather and ozone+++Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
