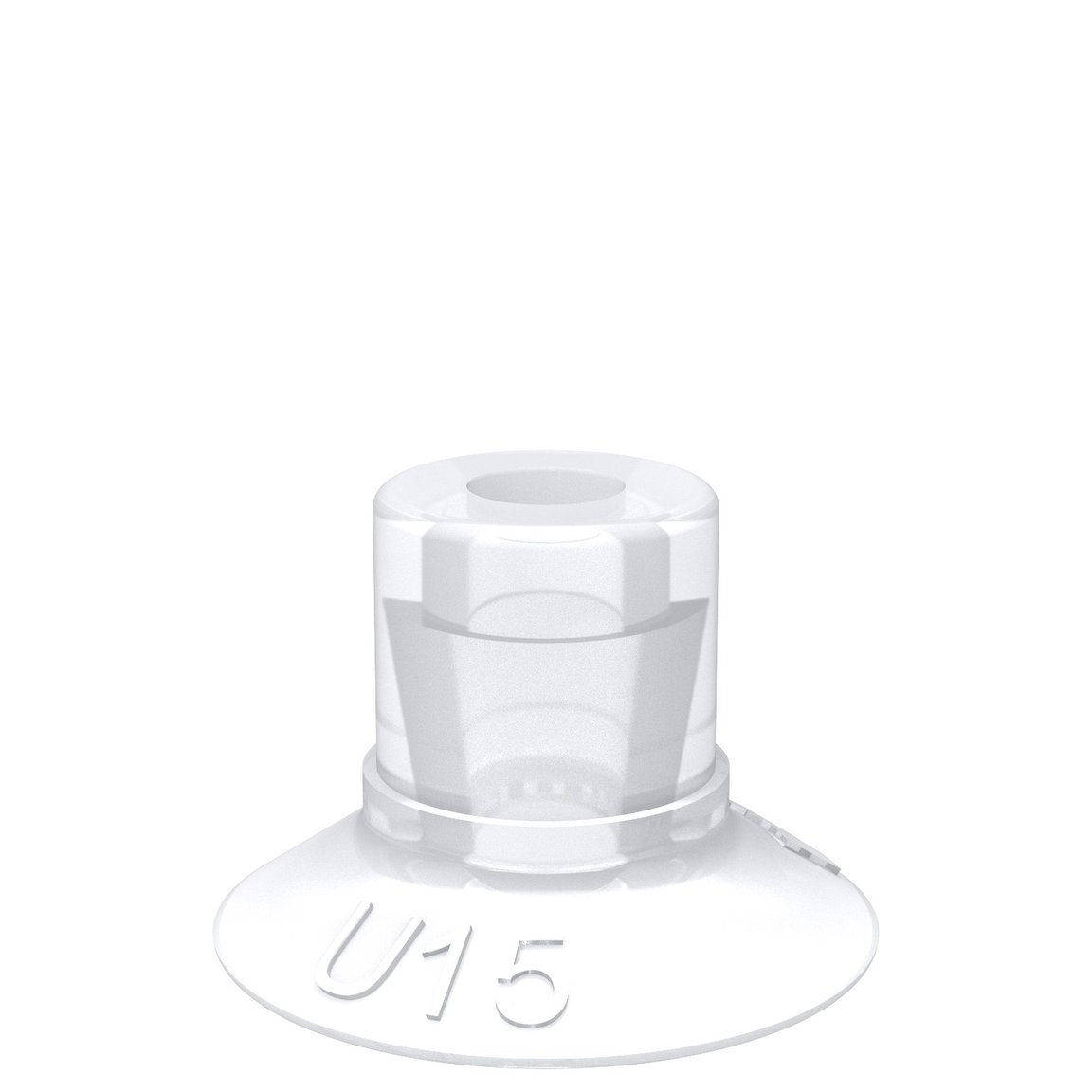

Suction cup U15 Silicone FCM

The material is approved by FDA (FDA 21 CFR 177.2600.) and meets EU's regulation EU 1935/2004. This cup is transparent with no addition of pigments. For handling objects with flat or slightly curved surfaces.

Check availability

Request quote

Description

The material is approved by FDA (FDA 21 CFR 177.2600.) and meets EU's regulation EU 1935/2004. This cup is transparent with no addition of pigments. For handling objects with flat or slightly curved surfaces.
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
Specifications
General

Application

Food contact materials (FDA & EU), non-detectable

Suction cup shape

Universal

Material

Silicone (SIL FDA)

Suction cup model

U

Weight

0.7 g

Volume

0.5 cm³

Suction cup model

U15

Movement, vertical max.

1.5 mm

Curve radius, min.

8 mm

Fitting

Fitting option

None

Fitting size

None

Fitting style

None

Fitting type

None

Dimension

Height

11.5 mm

Outer diameter

16.5 mm

Performance - lifting forces

U15

20 -kPa

60 -kPa

90 -kPa

3.5 N

8.4 N

11 N

4 N

7.2 N

8.1 N

Material

Name

SILFDA

Colour

Transparent

Temperature

-40 - 200 °C

Hardness

50 °Shore A

SILFDA

Alcohol

++

Concentrated acids

-

Ethanol

n/a

Hydrolysis

+

Methanol

n/a

Oil

-

Oxidation

+++

Petrol

-

Wear resistance

++

Weather and ozone

+++

Dimensional drawings
