Item no: 0128152

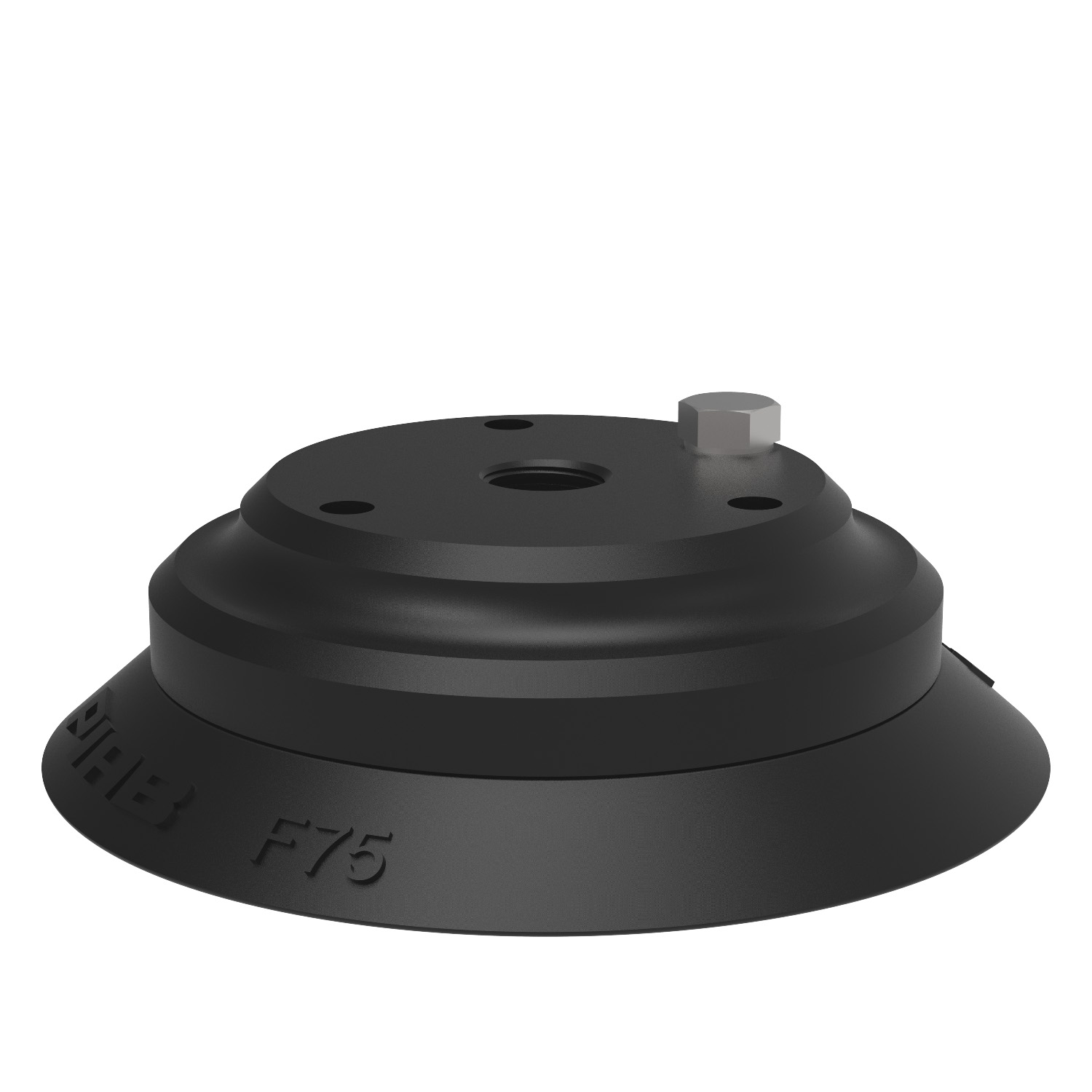

Suction cup F75 Nitrile-PVC, 1/8" NPSF female Al, with mesh filter
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
Read more-
Description
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
-
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
-
Specifications
General
ApplicationDry sheet metalSuction cup shapeFlatMaterialNitrile-PVC (NPV)Suction cup modelFWeight23 gVolume20 cm³Suction cup modelF75Movement, vertical max.3 mmCurve radius, min.150 mmFitting
Fitting optionFilter meshFitting size1/8"Fitting styleFemaleFitting typeNPSF-threadDimension
Height26 mmOuter diameter77 mmPerformance - lifting forces
F75
20 -kPa60 -kPa90 -kPa60 N110 N140 NMaterial
NameNPVColourBlackTemperature0 - 90 °CHardness50 °Shore ANPVAlcohol++Concentrated acids+Ethanoln/aHydrolysis++Methanoln/aOil+++Oxidation++Petrol+++Wear resistance+++Weather and ozone++Dimensional drawings
