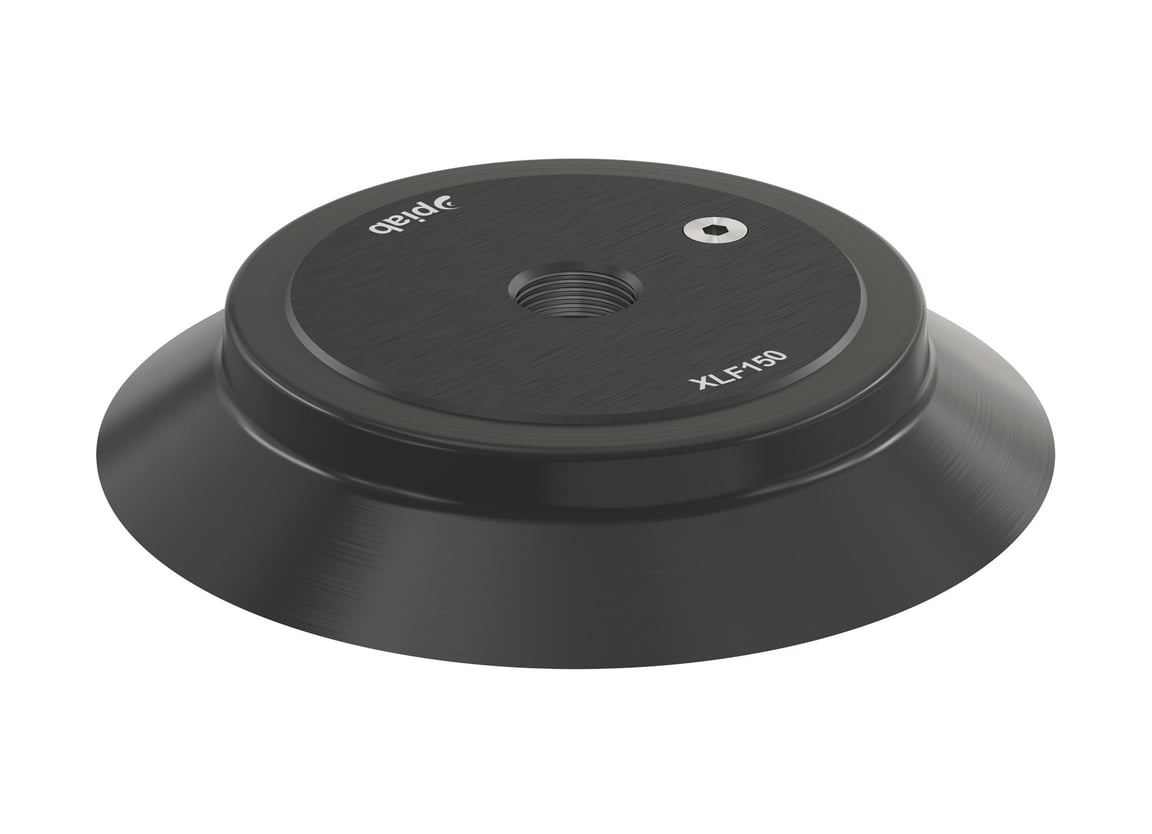

XLF150 Extra Large Flat cup, G1/2" female
Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface. Friction pattern increases safety and capability to handle tilted or standing glass/metal sheets. Double lip design increases safety against over-load or tear on the outer lip. Auxiliary port, suitable for vacuum sensing or efficient blow-off/release.
Read moreFeatures
- Suitable for handling large and heavy sheets, such as glass and metal, with a flat or slightly concave surface.

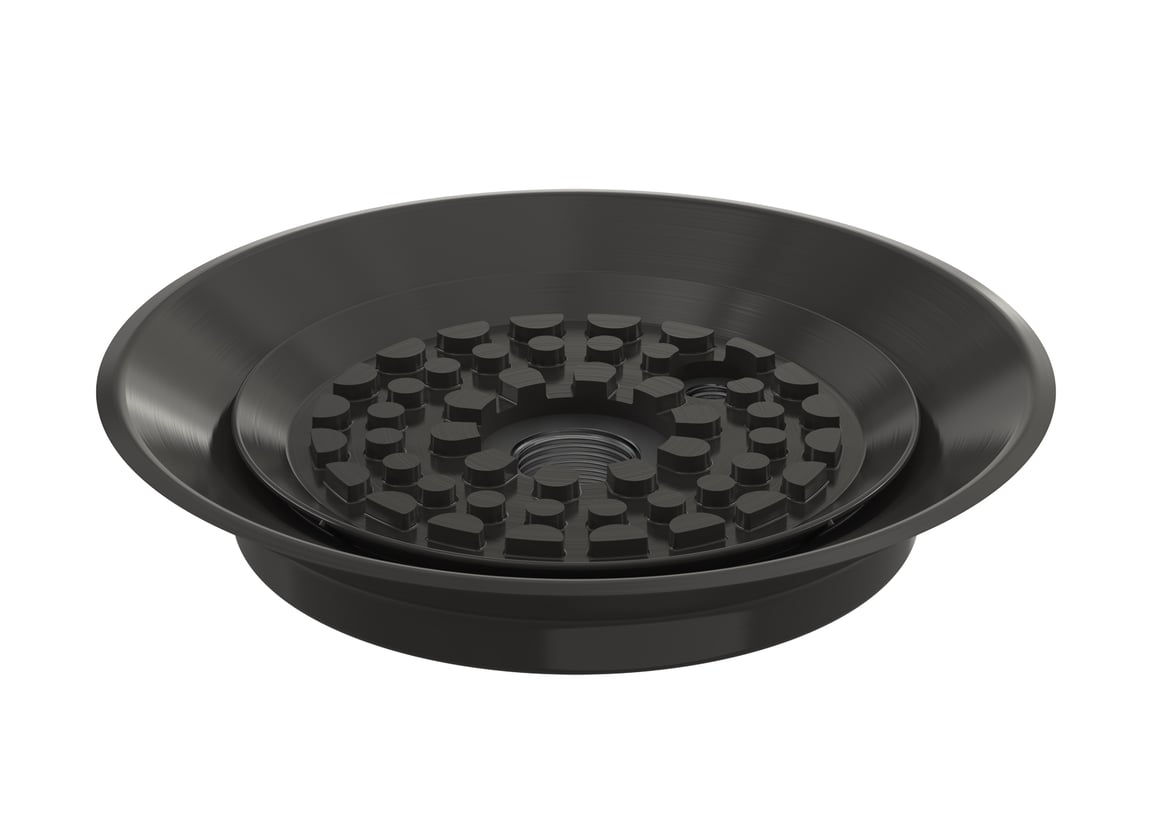

- Friction pattern increases safety and capabillity to handle tilted or standing glass/metal sheets.
- Double lip design increases safety against over-load or tear on the outer lip.
- Durable and abrasive resistant material reduces the risk for marks.
- Flat mounting plate facilitates customized mounting interfaces.
- Auxiliary port, suitable for vacuum sensing or efficient blow-off/release.
-
Industries
Metal sheets
Glass
-
Specifications
General
Suction cup shapeFlatApplicationMarkFree, DrySheetMetal, GlassHandlingSuction cup designRoundCharacteristicsGlassHandling, MarkFree, DrySheetMetalSuction cup modelXLFWeight362 gVolume145 cm³Suction cup modelXLF150 Inner lipSpecificationInner lipMovement, vertical max.8 mmCurve radius, min.500 mmSuction cup modelXLF150 Outer lipSpecificationOuter lipFitting optionNoneFitting size1/2"Fitting styleFemaleFitting typeG-threadHeight27 mmOuter diameter, actuated157.7 mmOuter diameter153 mmPerformance - lifting forces
XLF150 Inner lip
20 -kPa60 -kPa90 -kPa281 N425 N663 NXLF150 Outer lip
20 -kPa60 -kPa90 -kPa520 N770 N1130 N281 N425 N663 NMaterial
NameColourBlackTemperature0 - 90 °CHardness60 °Shore AAlcohol++Concentrated acids+Ethanoln/aHydrolysis++Methanoln/aOil+++Oxidation++Petrol+++Wear resistance+++Weather and ozone++Dimensional drawings
