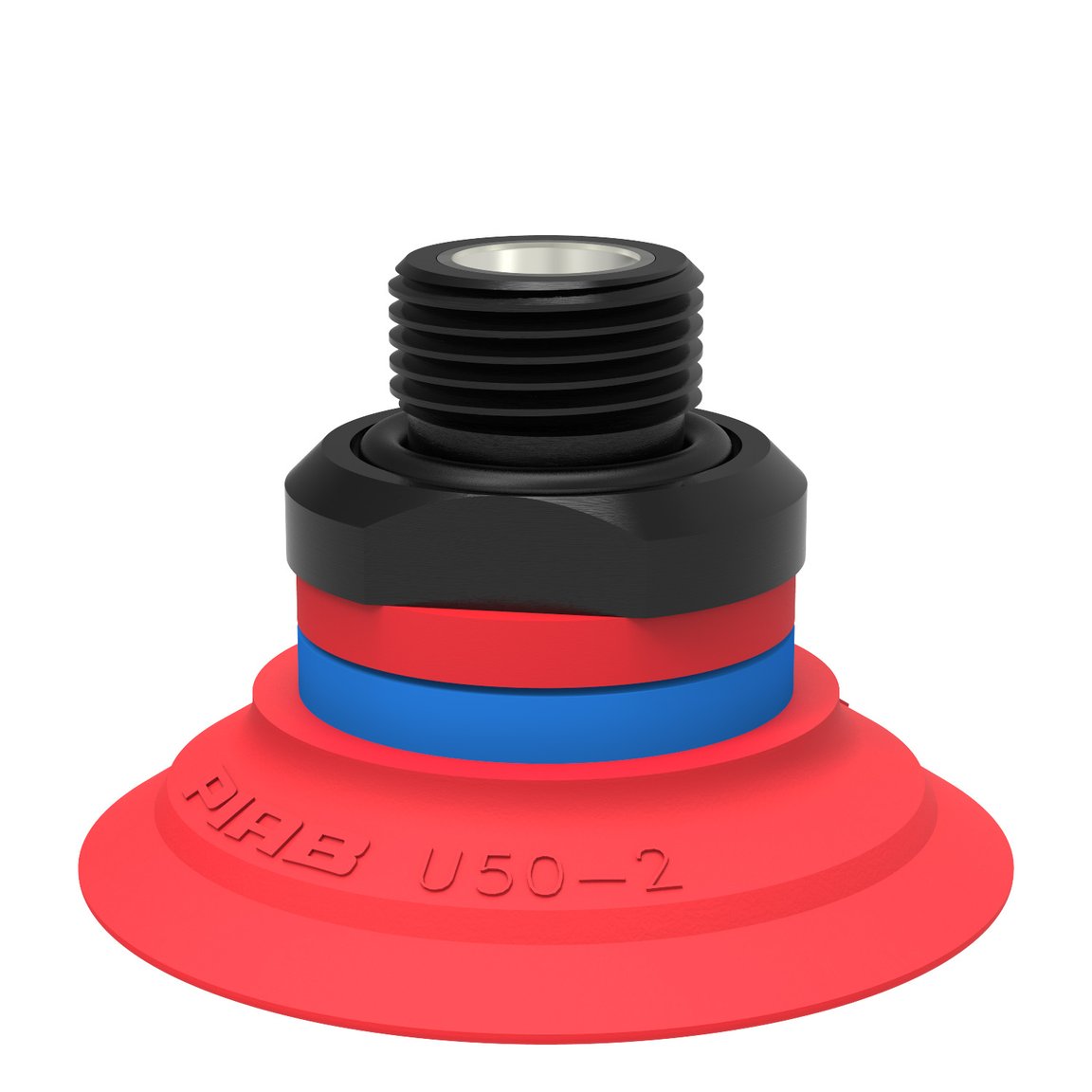

Suction cup U50-2 Silicone, G3/8" male, with mesh filter

Select variant

Suction cup U50-2 Silicone, G3/8" male, with mesh filter

Item no: 0101807

Suction cup U50-2 Silicone, G3/8" male, with mesh filter

For handling objects with flat or slightly curved surfaces.

Read more

Check availability

Request quote

Description

For handling objects with flat or slightly curved surfaces.
Features
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
Specifications
General

Application

Plastic injection molded parts

Suction cup shape

Universal

Material

Silicone (SIL)

Suction cup model

U

Weight

10 g

Volume

12 cm³

Suction cup model

U50-2

Movement, vertical max.

6 mm

Curve radius, min.

35 mm

Fitting

Fitting option

Filter mesh

Fitting size

3/8"

Fitting style

Male

Fitting type

G-thread

Dimension

Height

33.5 mm

Outer diameter

51.4 mm

Performance - lifting forces

U50-2

20 -kPa

60 -kPa

90 -kPa

35 N

73 N

92 N

20 N

37 N

44 N

Material

Name

SIL

Colour

Red

Temperature

-40 - 200 °C

Hardness

50 °Shore A

SIL

Alcohol

++

Concentrated acids

-

Ethanol

n/a

Hydrolysis

+

Methanol

n/a

Oil

-

Oxidation

+++

Petrol

-

Wear resistance

++

Weather and ozone

+++

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
Resources

CAD

Suction cup U50-2 Silicone, G3/8" male, with mesh filter

Data sheet

Suction cup U50-2 Silicone, G3/8" male, with mesh filter

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

XLF – Safe solution for sheet handling

Vacuum Automation - Improve your productivity and energy efficiency

Certificates

RoHS Compliance Statement Suction cups

Certificate of conformaty - EC1935/2004.

White papers

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
