5.9 N
12 N
16 N
Select variant
-
0101144Suction cup U20 Chloroprene
-
0101145Suction cup U20 Silicone
-
0101373Suction cup U20 Chloroprene, M5 female
-
0101374Suction cup U20 Chloroprene, G1/8" male, with mesh filter
-
0101375Suction cup U20 Chloroprene, 1/8" NPT male, with mesh filter
-
0101376Suction cup U20 Chloroprene, G1/8" male/M5 female
-
0101377Suction cup U20 Chloroprene, 5xM5 female
-
0101378Suction cup U20 Chloroprene, G1/8" male/M5 female, with mesh filter
-
0101379Suction cup U20 Chloroprene, M5 female, with dual flow control valve
-
0101380Suction cup U20 Chloroprene, G1/8" male, with mesh filter and dual flow control valve
-
0101382Suction cup U20 Chloroprene, G1/8" male/M5 female, with dual flow control valve
-
0101384Suction cup U20 Silicone, M5 female
-
0101385Suction cup U20 Silicone, G1/8" male, with mesh filter
-
0101386Suction cup U20 Silicone, 1/8" NPT male, with mesh filter
-
0101387Suction cup U20 Silicone, G1/8" male/M5 female
-
0101388 Suction cup U20 Silicone, 5xM5 female
-
0101389Suction cup U20 Silicone, G1/8" male/M5 female, with mesh filter
-
0101390Suction cup U20 Silicone, M5 female, with dual flow control valve
-
0101391Suction cup U20 Silicone, G1/8" male, with mesh filter and dual flow control valve
-
0101394Suction cup U20 Silicone, 5xM5 female, with dual flow control valve
-
0110328Suction cup U20 Silicone, G1/8" male/M5 female, PA
-
0110956Suction cup U20 Chloroprene, G1/8" male/M5 female, PA
-
0128711Suction cup U20 HNBR
-
9906867Suction cup U20 HNBR, M5 female
-
9906868Suction cup U20 HNBR, M5 female, with dual flow control valve
-
9906869Suction cup U20 HNBR, G1/8" male, with mesh filter
-
9906870Suction cup U20 HNBR, G1/8" male, with mesh filter and dual flow control valve
-
9906871Suction cup U20 HNBR, G1/8" male/M5 female
-
9906872Suction cup U20 HNBR, G1/8" male/M5 female, with dual flow control valve
-
9906873Suction cup U20 HNBR, 1/8" NPT male, with mesh filter
-
9906874Suction cup U20 HNBR, 1/8" NPT male, with mesh filter and dual flow control valve
-
9906890Suction cup U20 HNBR, 5xM5 female
-
9906891Suction cup U20 HNBR, 5xM5 female, with dual flow control valve
-
9907052Suction cup U20 HNBR, G1/8" male/M5 female, with mesh filter

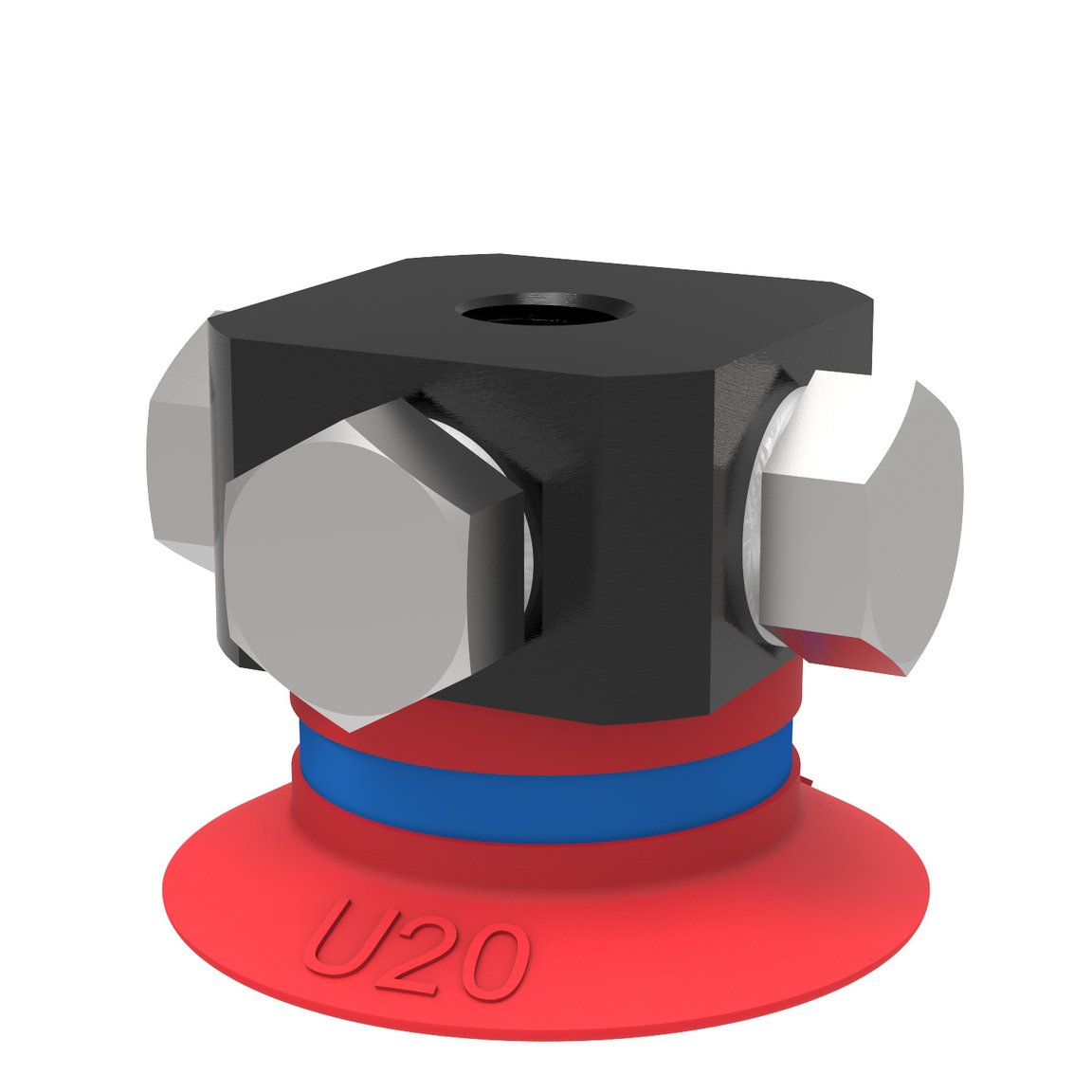

Item no: 0101388
Suction cup U20 Silicone, 5xM5 female
For handling objects with flat or slightly curved surfaces.
Read more-
Description
For handling objects with flat or slightly curved surfaces.
-
Features
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
-
Specifications
General
ApplicationGlass handlingSuction cup shapeUniversalMaterialSilicone (SIL)Suction cup modelUWeight1.2 gVolume1 cm³Suction cup modelU20Movement, vertical max.2.5 mmCurve radius, min.13 mmFitting
Fitting optionNoneFitting size5×M5Fitting styleFemaleFitting typeM-threadDimension
Height17 mmOuter diameter22 mmPerformance - lifting forces
U20
20 -kPa60 -kPa90 -kPa5.9 N8.8 N9.8 NMaterial
NameSILColourRedTemperature-40 - 200 °CHardness50 °Shore ASILAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
