9 N
19.5 N
25 N
Select variant
-
0101131Suction cup F25 Chloroprene
-
0101293 VC 1-25-C8 Flat Vacuum Cup (with adapter)
-
0101299Suction cup F25 Chloroprene, G1/8" male, with mesh filter and dual flow control valve
-
0101295Suction cup F25 Chloroprene, G1/8" male/M5 female
-
0101297Suction cup F25 Chloroprene, G1/8" male/M5 female, with mesh filter
-
0101301Suction cup F25 Chloroprene, G1/8" male/M5 female, with dual flow control valve
-
0109842Suction cup F25 Chloroprene, G1/8" male/M5 female, PA
-
0101292Suction cup F25 Chloroprene, M5 female
-
0101296Suction cup F25 Chloroprene, 5xM5 female
-
0101294Suction cup F25 Chloroprene, 1/8" NPT male, with mesh filter
-
0101132Suction cup F25 Silicone
-
0101304Suction cup F25 Silicone, G1/8" male, with mesh filter
-
0101306Suction cup F25 Silicone, G1/8" male/M5 female
-
0101308Suction cup F25 Silicone, G1/8" male/M5 female, with mesh filter
-
0101312Suction cup F25 Silicone, G1/8" male/M5 female, with dual flow control valve
-
0110335Suction cup F25 Silicone, G1/8" male/M5 female, PA
-
0101303Suction cup F25 Silicone, M5 female
-
0101307Suction cup F25 Silicone, 5xM5 female
-
0101311Suction cup F25 Silicone, 1/8" NPT male, with dual flow control valve
-
0101305Suction cup F25 Silicone, 1/8" NPT male, with mesh filter
Item no: 0101293

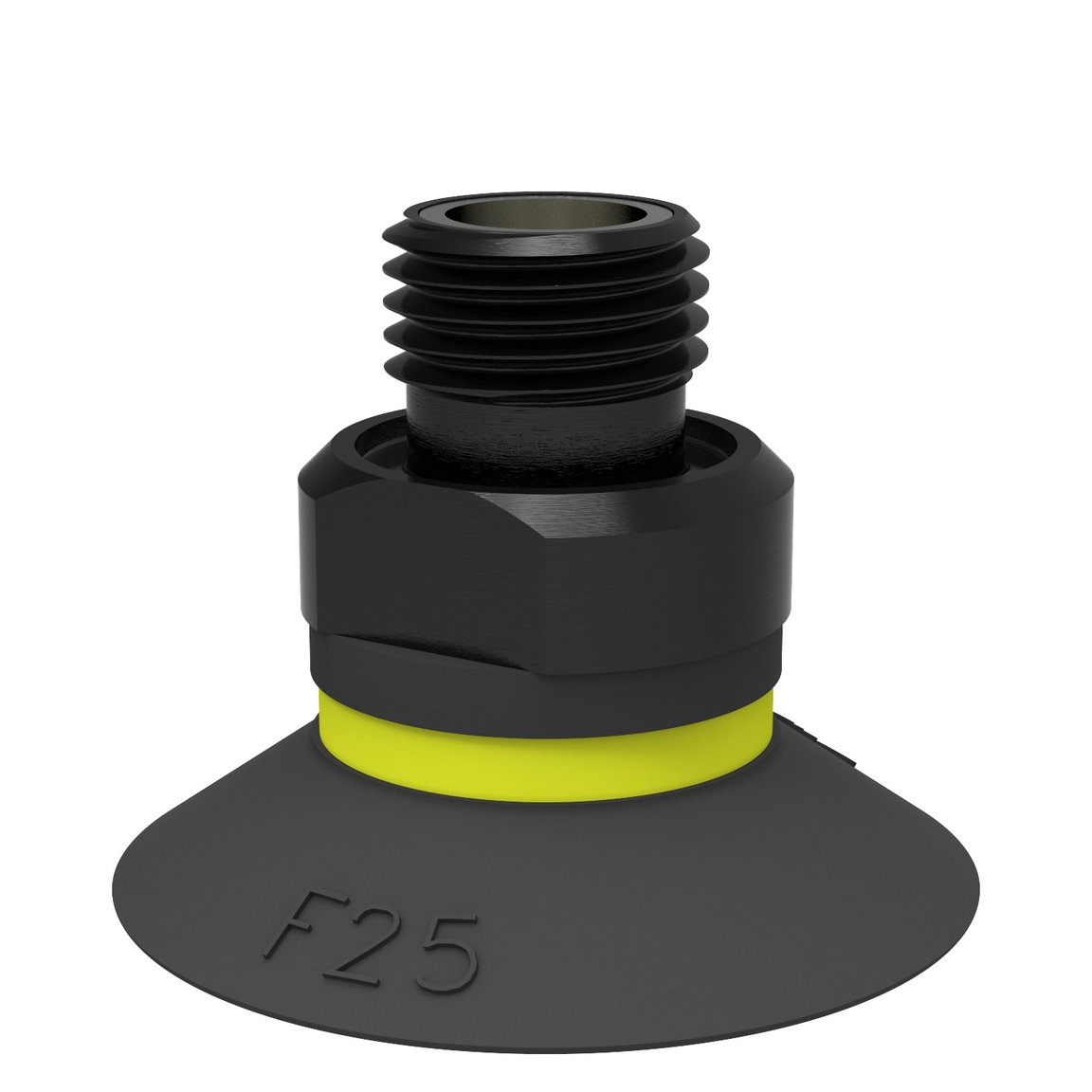

VC 1-25-C8 Flat Vacuum Cup (with adapter)
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
Read more-
Description
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
-
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
-
Specifications
General
Item number, alternativeE12012553ApplicationDry sheet metalMaterialChloroprene (CR)Weight1.8 gSuction cup modelF25Movement, vertical max.1.2 mmCurve radius, min.22 mmDimensions DWG
Diameter25 mmThreadG1/8 inPerformance - lifting forces
F25
20 -kPa60 -kPa90 -kPa8 N9 N10 NMaterial
NameCRColourBlackTemperature-40 - 110 °CHardness50 °Shore ACRAlcohol++Concentrated acids-Ethanoln/aHydrolysis++Methanoln/aOil+Oxidation++Petrol+Wear resistance+++Weather and ozone++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
