Item no: 0101278

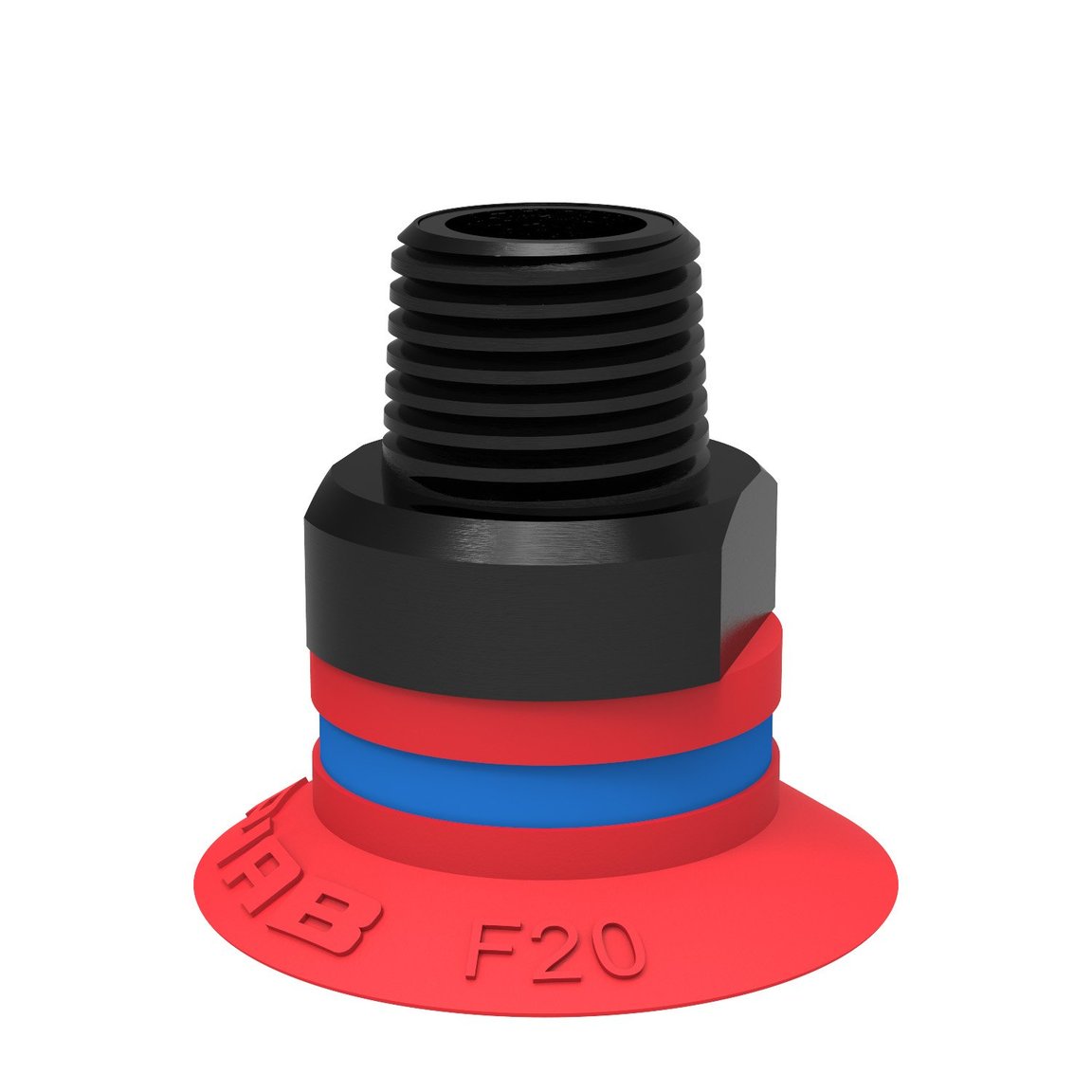

Suction cup F20 Silicone, 1/8" NPT male, with dual flow control valve
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
Read more-
Description
Suitable for flat objects such as cardboard, sheet metal, glass and porous materials. The cleats stop deformation by preventing suction of the object into the cup. The suction cup has good stability and very little movement. Also suitable when the lifting force is parallel to the surface as the cleats increase friction.
-
Features
- Suitable for flat objects.
- Good stability and little inherent movement.
- Recommended when the lifting force is parallel to the surface of the object.
- Cleats prevent thin, sensitive objects from being deformed and gives extra friction when the lifting force is parallel.
-
Specifications
General
ApplicationDry sheet metalSuction cup shapeFlatMaterialSilicone (SIL)Leakage flow, max.0.06 Nl/sSuction cup modelFValve restriction0.7 mmWeight1.2 gVolume1 cm³Suction cup modelF20Movement, vertical max.1.2 mmCurve radius, min.18 mmFitting
Fitting optionDFCV, FMFitting size1/8"Fitting styleMaleFitting typeNPT-threadDimension
Height20 mmOuter diameter22 mmPerformance - lifting forces
F20
20 -kPa60 -kPa90 -kPa5 N8 N8.5 NMaterial
NameSILColourRedTemperature-40 - 200 °CHardness50 °Shore ASILAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
