14 N
26 N
31 N
Select variant
-
0101125Suction cup D30-2 Chloroprene
-
0101126Suction cup D30-2 Silicone
-
0101237Suction cup D30-2 Chloroprene, M5 female
-
0101238Suction cup D30-2 Chloroprene, G1/8" male, with mesh filter
-
0101239Suction cup D30-2 Chloroprene, 1/8" NPT male, with mesh filter
-
0101240Suction cup D30-2 Chloroprene, G1/8" male/M5 female
-
0101242Suction cup D30-2 Chloroprene, G1/8" male/M5 female, with mesh filter
-
0101244Suction cup D30-2 Chloroprene, G1/8" male, with mesh filter and dual flow control valve
-
0101246 Suction cup D30-2 Chloroprene, G1/8" male/M5 female, with dual flow control valve
-
0101248Suction cup D30-2 Silicone, M5 female
-
0101249Suction cup D30-2 Silicone, G1/8" male, with mesh filter
-
0101250Suction cup D30-2 Silicone, 1/8" NPT male, with mesh filter
-
0101251Suction cup D30-2 Silicone, G1/8" male/M5 female
-
0101252Suction cup D30-2 Silicone, 5xM5 female
-
0101253Suction cup D30-2 Silicone, G1/8" male/M5 female, with mesh filter
-
0101256Suction cup D30-2 Silicone, 1/8" NPT male, with dual flow control valve
-
0110332Suction cup D30-2 Silicone, G1/8" male/M5 female, PA

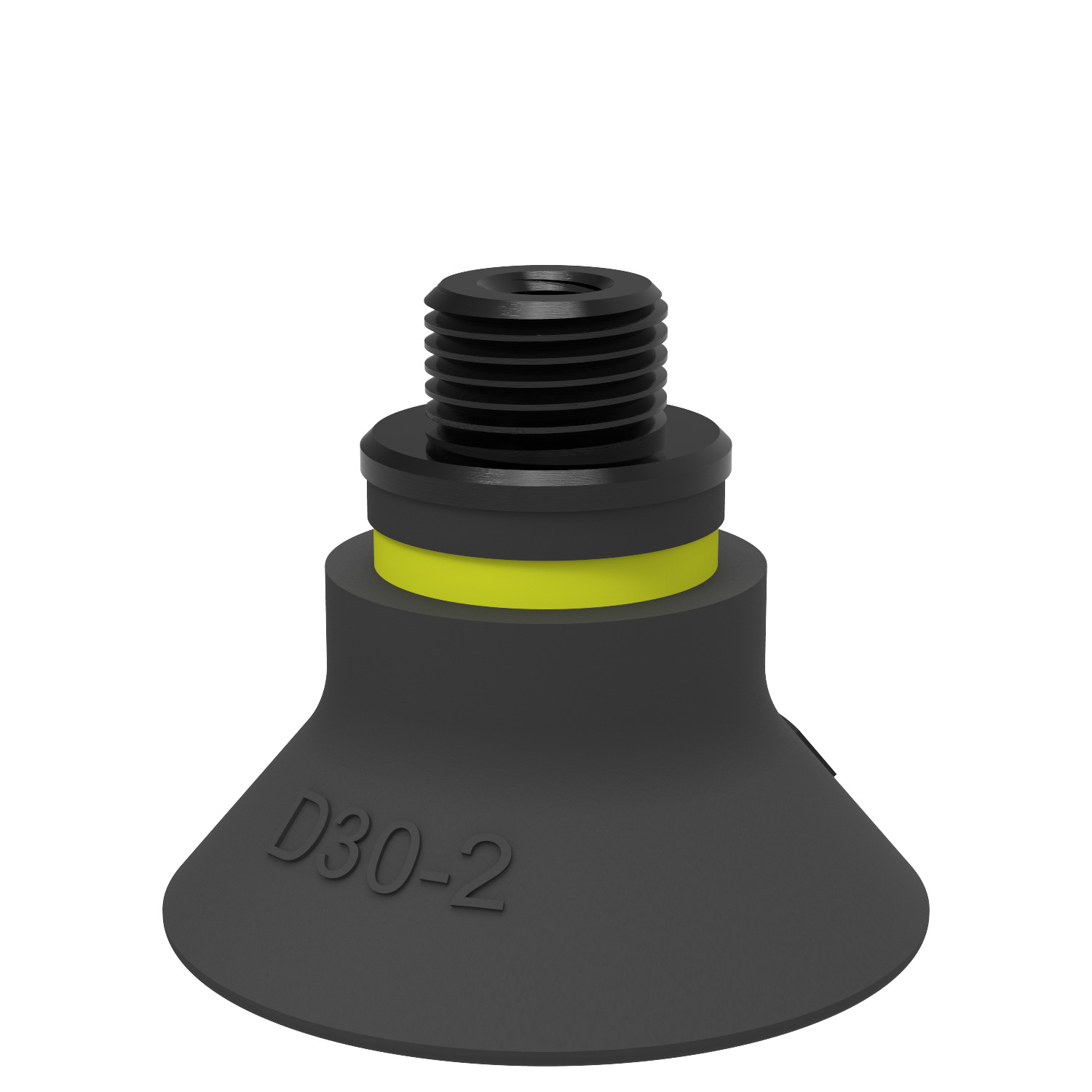

Item no: 0101246
Suction cup D30-2 Chloroprene, G1/8" male/M5 female, with dual flow control valve
Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on flat surfaces.
Read more-
Description
Used for curved and irregular surfaces. Can lift even over corners and edges. Not suitable for use on flat surfaces.
-
Features
- Suitable for objects with curved or irregular surfaces.
- Grips around corners and edges.
-
Specifications
General
ApplicationPlasticInjectionMoldedParts, DrySheetMetalSuction cup shapeDeepMaterialChloroprene (CR)Leakage flow, max.0.06 Nl/sSuction cup modelDValve restriction0.7 mmWeight4 gVolume5 cm³Suction cup modelD30-2Movement, vertical max.5 mmCurve radius, min.13 mmFitting
Fitting optionDual flow control valveFitting size18, M5Fitting styleFemale/MaleFitting typeG, MDimension
Height26.7 mmOuter diameter32 mmPerformance - lifting forces
D30-2
20 -kPa60 -kPa90 -kPa11.2 N16.8 N17.8 NMaterial
NameCRColourBlackTemperature-40 - 110 °CHardness50 °Shore ACRAlcohol++Concentrated acids-Ethanoln/aHydrolysis++Methanoln/aOil+Oxidation++Petrol+Wear resistance+++Weather and ozone++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
