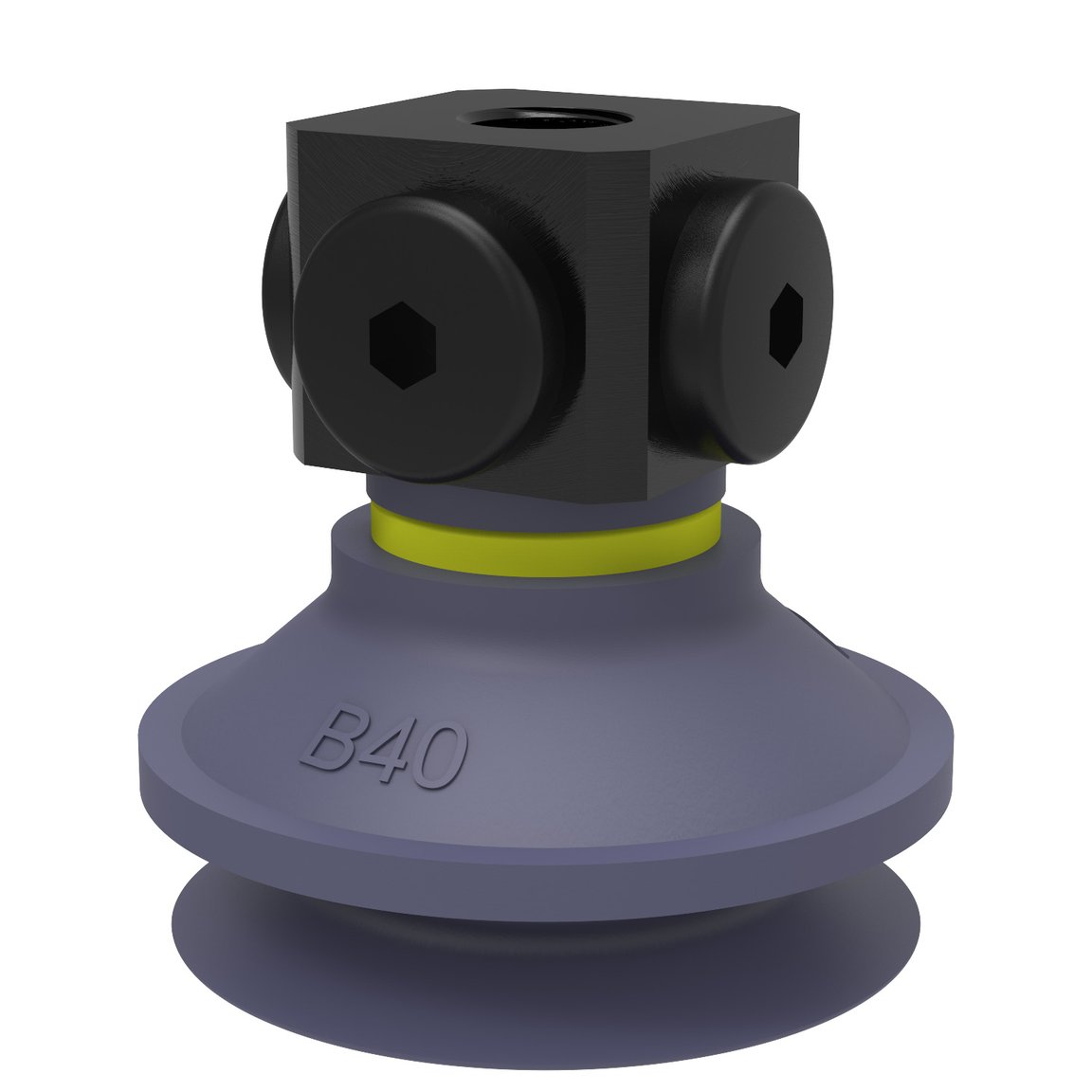

Suction cup B40 HNBR, 5x1/8" NPSF female

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.

• Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
• The lifting movement can be used to separate small and thin objects.
• Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.

Accessories

• 3251008Fitting 1/4" NPT male, with dual flow control valve
• 3250093Fitting 1/4" NPT male, with mesh filter
• 3250005Fitting 1/8" NPSF female, 30–40
• 3150197Fitting 1/8" NPSF female, 30–40, PA
• 3251006Fitting 1/8" NPSF female, 30–40, with dual flow control valve
• 0101153Fitting 1/8" NPSF female, 30–40, with mesh filter
• 3251010Fitting 3/8" NPT male, with dual flow control valve
• 3250089Fitting 3/8" NPT male, with mesh filter
• 3251011Fitting 5x1/8" NPSF female, 30–40, with dual flow control valve
• 3250091Fitting G1/4" male, 30–40, with mesh filter
• 3251007Fitting G1/4" male, 30–40, with mesh filter and dual flow control valve
• 0200714Fitting G1/8" male, 40, with mesh filter
• 3251009Fitting G3/8" male, 30–40, with mesh and dual flow control valve
• 3250086Fitting G3/8" male, 30–40, with mesh filter
• 0101105Suction cup B40 Chloroprene
• 0101106Suction cup B40 Silicone

Spare parts

• 0100261Fitting 5x1/8" NPSF female, 30–40
• 0108081Suction cup B40 HNBR
