Select variant
Item no: 3250069

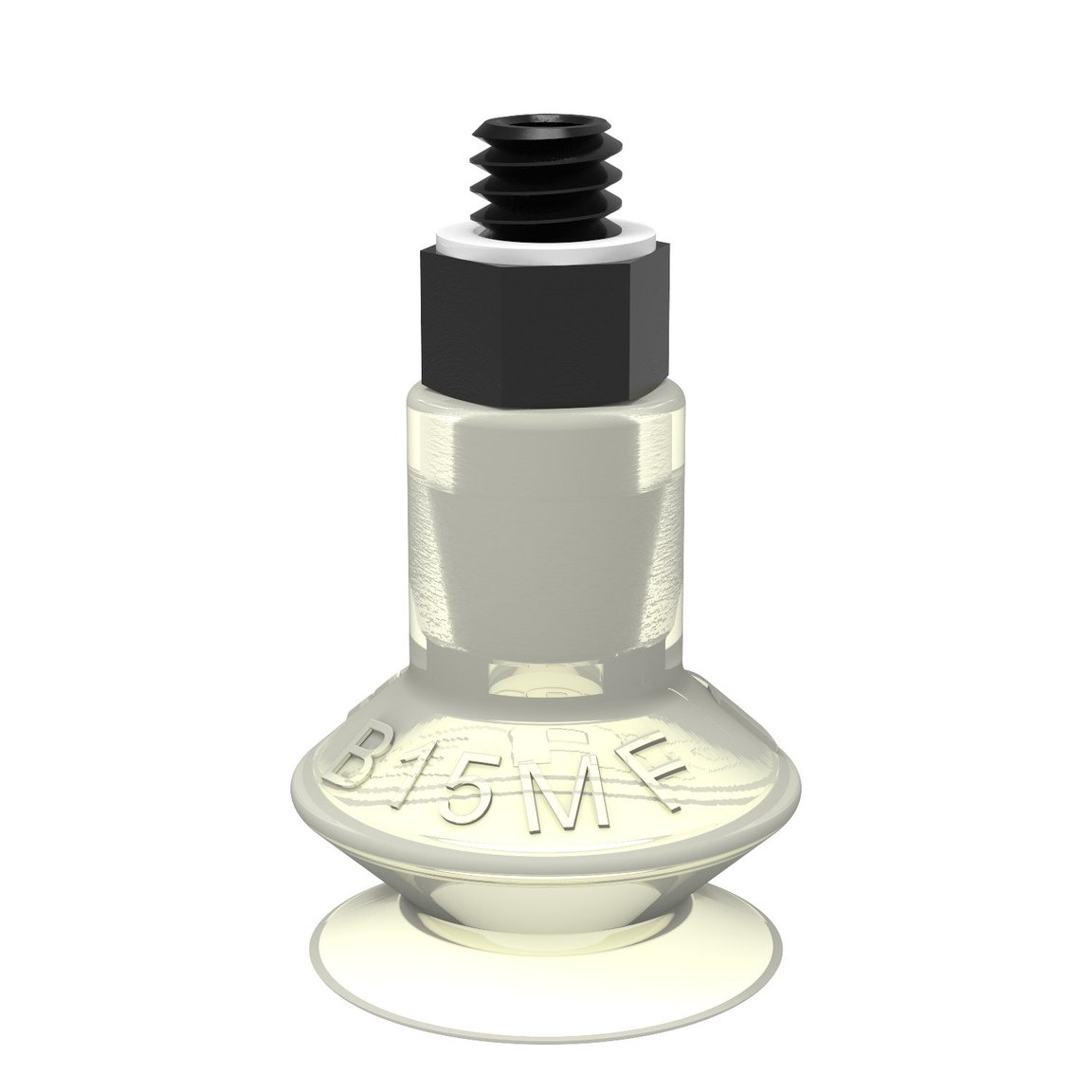

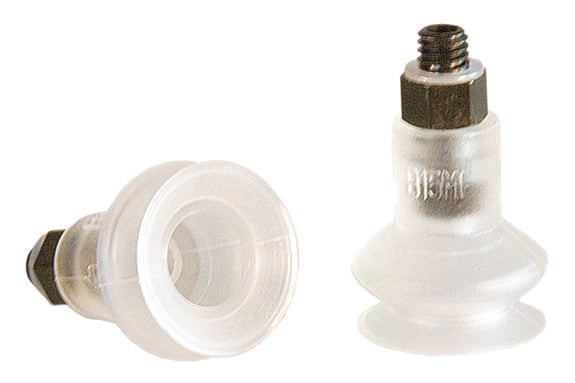

Suction cup B15MF Thermoelastic polyurethane, M5 male
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.
Read more-
Description
The same applications as for short bellows. Also suitable for smooth objects requiring a very clean surface. Only light weight objects should be handled when the lifting force is parallel to the surface.
-
Features
- Suction cup of TPU, a mark free material that leaves no trace on the object being handled.
- Suitable for level adjustment.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface.
-
Specifications
General
ApplicationMark FreeSuction cup shapeBellowsMaterialThermoplastic Polyurethane (TPE-U)Suction cup modelB-MFWeight1.3 gVolume1.1 cm³Suction cup modelB15MFMovement, vertical max.2 mmCurve radius, min.11 mmFitting
Fitting optionNoneFitting sizeM5Fitting styleMaleFitting typeM-threadDimension
Height28 mmOuter diameter16 mmPerformance - lifting forces
B15MF
20 -kPa60 -kPa90 -kPa4.5 N7 N10 NMaterial
NameTPUColourWhiteTransparentTemperature-20 - 80 °CHardness81 °Shore ATPUAlcohol++Concentrated acids-Ethanoln/aHydrolysis-Methanoln/aOil+++Oxidation++Petrol-Wear resistance+++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
