294 N
686 N
883 N
Select variant
-
0101928Suction cup B150 Silicone, G1/2" female, with mesh filter
-
0101929Suction cup B150 Silicone, G3/4" female, with mesh filter
-
0101931Suction cup B150 Nitrile-PVC, G1/2" female, with mesh filter
-
0101932Suction cup B150 Nitrile-PVC, G3/4" female, with mesh filter
-
3150031PSuction cup B150 Nitrile-PVC, G1/2" female Al, with mesh filter
-
3150031S Suction cup B150 Silicone, G1/2" female Al, with mesh filter
-
3150109S Suction cup B150 Silicone
-
3150109P Suction cup B150 Nitrile-PVC

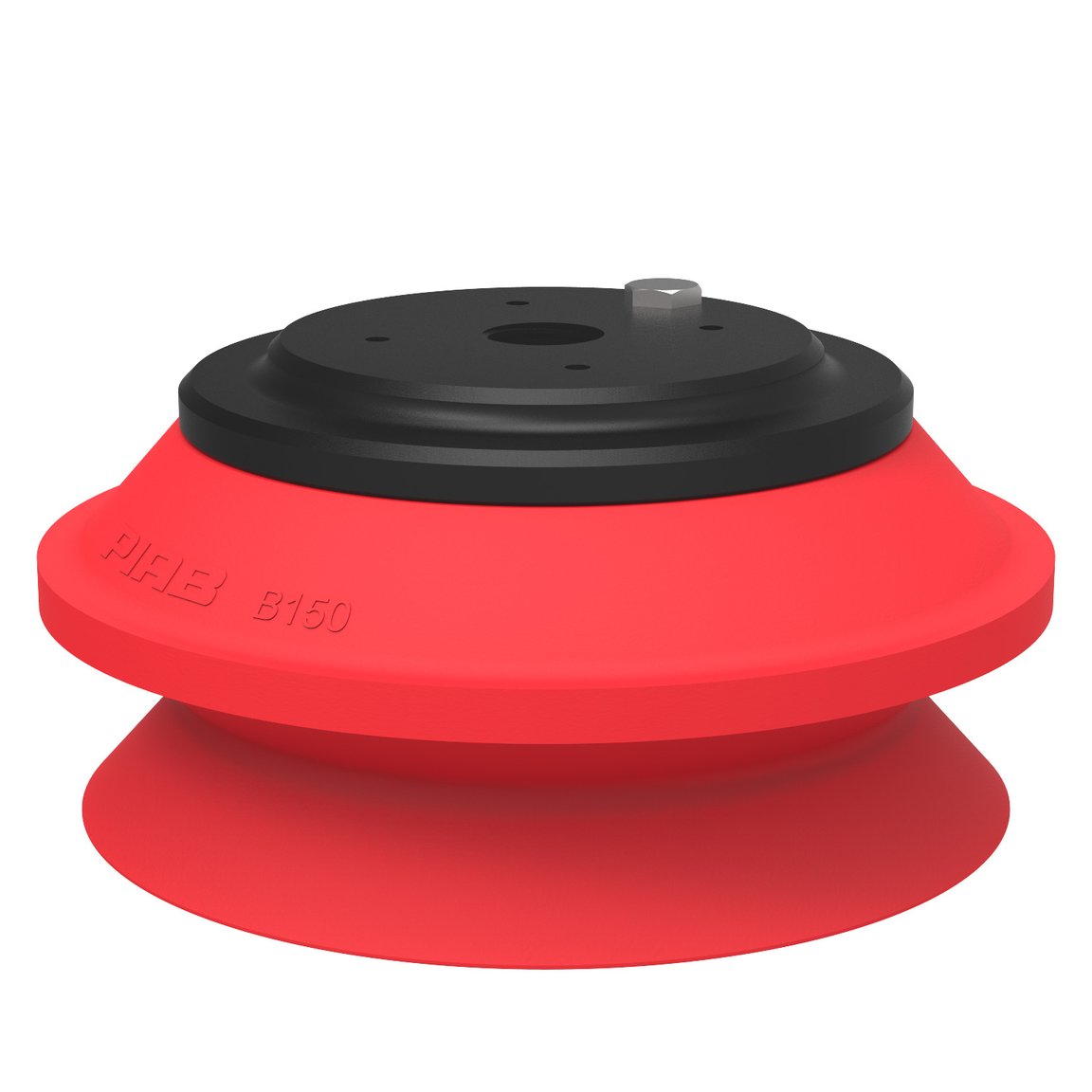

Item no: 3150031S
Suction cup B150 Silicone, G1/2" female Al, with mesh filter
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
Read more-
Description
Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR and nitrile-PVC.
-
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
-
Specifications
General
ApplicationPlasticInjectionMoldedParts, DrySheetMetalSuction cup shapeBellowsMaterialSilicone (SIL)Suction cup modelBWeight265 gVolume650 cm³Suction cup modelB150Movement, vertical max.46.6 mmCurve radius, min.75 mmFitting
Fitting optionFilter meshFitting size1/2"Fitting styleFemaleFitting typeG-threadDimension
Height78.3 mmOuter diameter155 mmPerformance - lifting forces
B150
20 -kPa60 -kPa90 -kPaMaterial
NameSILColourRedTemperature-40 - 200 °CHardness50 °Shore ASILAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
