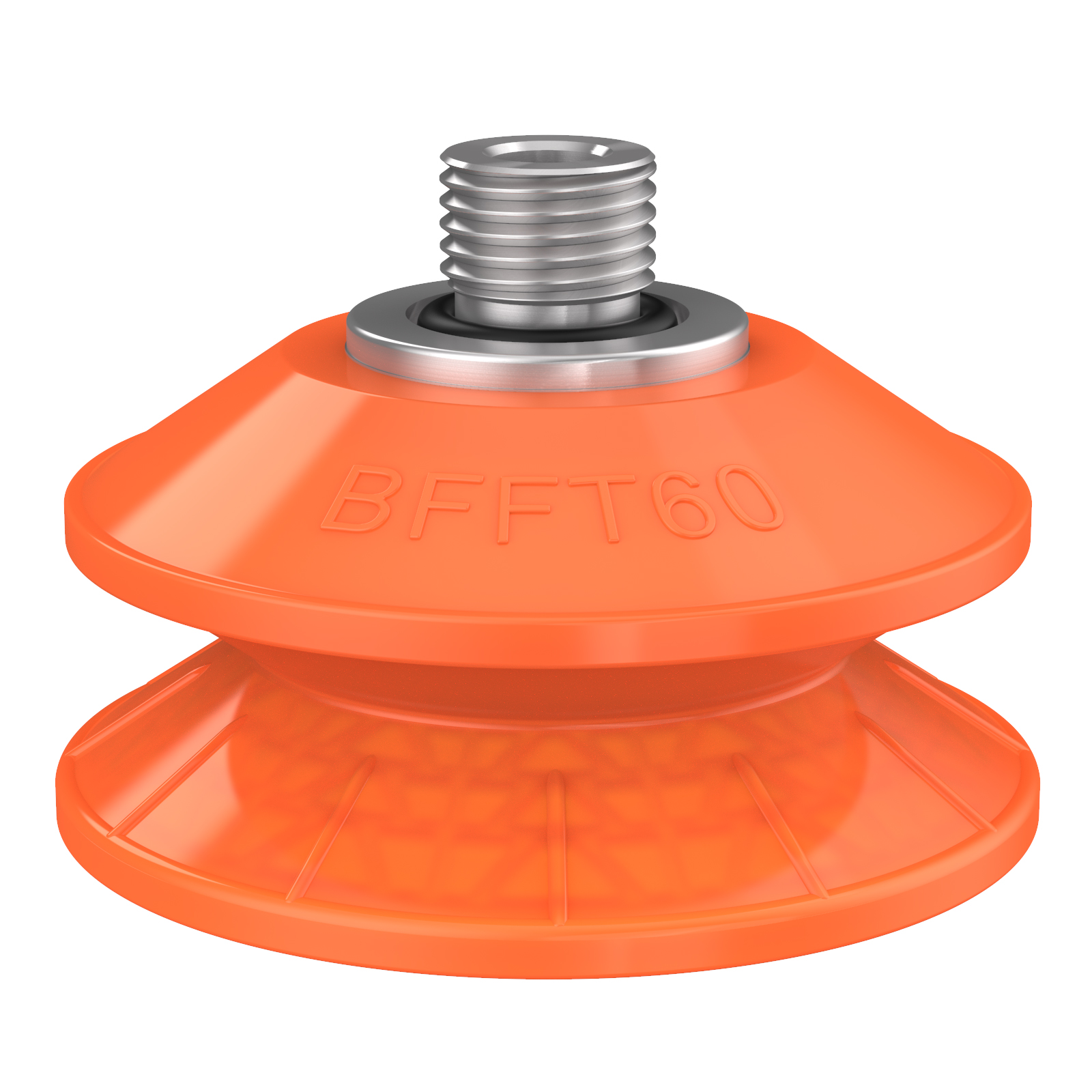

Suction cup BFFT60P-2 Polyurethane 60/60/30 G1/4" male with mesh filter

Check availability

Request quote

Description
Features
- The BFFT60P-2 is an enhanced version with a slightly steadier bellow giving better performance related to BAF values, better capability to cope with shear forces and high-speed applications.
- Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.
- Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
- The "BFFT" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed, for example in de-stacking applications.
- The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
Specifications
General

Application

DrySheetMetal, OilySheetMetal

Suction cup shape

Bellows

Material

Polyurethane (PU60)

Suction cup model

BFFT

Weight

57.9 g

Volume

34 cm³

Suction cup model

BFFT60P-2 Dry metal sheet

Specification

Dry metal sheet

Movement, vertical max.

13 mm

Curve radius, min.

30 mm

Suction cup model

BFFT60P-2 Oily metal sheet

Specification

Oily metal sheet

Fitting

Fitting option

Filter mesh

Fitting size

1/4"

Fitting style

Male

Fitting type

G-thread

Dimension

Height

31.8 mm

Height 2 (Actuated)

18.3 mm

Outer diameter, actuated

65 mm

Outer diameter

62 mm

Performance - lifting forces

BFFT60P-2 Dry metal sheet

20 -kPa

60 -kPa

90 -kPa

50 N

130 N

142.9 N

44.6 N

82.5 N

92.6 N

BFFT60P-2 Oily metal sheet

60 -kPa

90 -kPa

129 N

141 N

63.4 N

87.6 N

Material

Name

PU60

PU60

PU30

Colour

Orange

GreenTransparent

Yellow

Temperature

10 - 50 °C

10 - 50 °C

10 - 50 °C

Hardness

60 °Shore A

60 °Shore A

30 °Shore A

PU60

PU60

PU30

Alcohol

n/a

n/a

n/a

Concentrated acids

+

+

+

Ethanol

+

+

+

Hydrolysis

+

+

+

Methanol

-

-

-

Oil

+++

+++

+++

Oxidation

-

-

-

Petrol

+

+

+

Wear resistance

+++

+++

+++

Weather and ozone

+++

+++

+++

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
Industries
Automotive
- Press-transfer
- Door on / off ergo tools
- Glass assembly & installation
- Gas tank assembly and installation
Resources

CAD

Suction cup BFFT60P-2 Polyurethane 60/60/30 G1/4" male with mesh filter

Data sheet

Suction cup BFFT60P-2 Polyurethane 60/60/30 G1/4" male with mesh filter

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

Vacuum Automation - Improve your productivity and energy efficiency

Certificates

RoHS Compliance Statement Suction cups

Certificate of conformaty - EC1935/2004.

White papers

The road to state-of-the-art car production starts in the press shop

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
