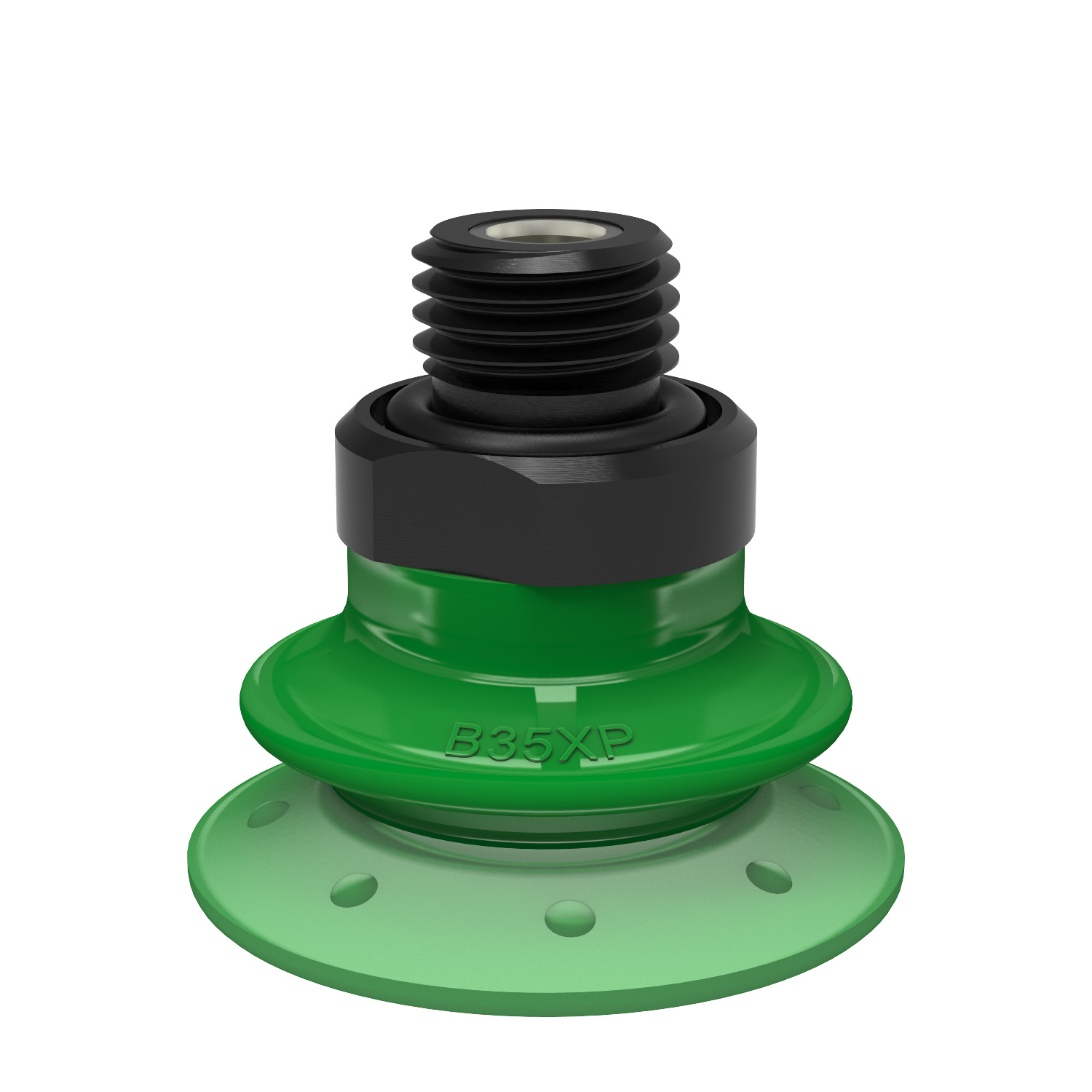

Suction cup B35XP Polyurethane 60, G1/4" male with mesh filter

Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.

Check availability

Request quote

Description

Suitable for uneven and porous surfaces such as cardboard, etc. DURAFLEX® suction cups are manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material of the DURAFLEX® is mark-free.
Features
- Suitable for limited level adjustment with good stability.
- Excellent gripping performance on corrugated and porous or surface leaking objects such as cardboard, textured plastic parts and composite material (raw surface)
- In the two-coloured suction cup the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable for accelerations and speed, at the same time, soft and flexible.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane.
- The material DURAFLEX® is mark free.
Specifications
General

Suction cup shape

Bellows

Application

DrySheetMetal, GlassHandling

Suction cup model

B-XP

Weight

6.6 g

Volume

4.4 cm³

Suction cup model

B35XP PU60

Movement, vertical max.

9.5 mm

Curve radius, min.

17.5 mm

Fitting

Fitting option

Filter mesh

Fitting size

1/4"

Fitting style

Male

Fitting type

G-thread

Dimension

Height

33.6 mm

Outer diameter

37 mm

Performance - lifting forces

B35XP PU60

20 -kPa

60 -kPa

90 -kPa

19 N

48 N

66 N

17 N

33 N

50 N

Material

Name

Colour

Temperature

10 - 50 °C

Hardness

60 °Shore A

Alcohol

n/a

Concentrated acids

+

Ethanol

+

Hydrolysis

+

Methanol

-

Oil

+++

Oxidation

-

Petrol

+

Wear resistance

+++

Weather and ozone

+++

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
Industries
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Plastics
- Plastic part removal
Packaging
- Boxes and containers
- Slip sheet feeding
- Case / carton erecting, case / carton opening closing
- Rotary carton feeding
- Tray forming, tray unloading and loading
- Robot pick and place and packing
- Card / lid feeding and sorting
Resources

CAD

Suction cup B35XP Polyurethane 60, G1/4" male with mesh filter

Data sheet

Suction cup B35XP Polyurethane 60, G1/4" male with mesh filter

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

Vacuum Automation - Improve your productivity and energy efficiency

Certificates

Silicone free DURAFLEX® and TPU

Statement TSE

RoHS Compliance Statement Suction cups

White papers

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
Accessories/Spare parts
Accessories
Spare parts
- 0205192Suction cup B35XP Polyurethane 60
- 3250091Fitting G1/4" male, 30–40, with mesh filter
