- Suction cup OC60x140 Nitrile, G3/8" female
Select variant
Item no: 3350011

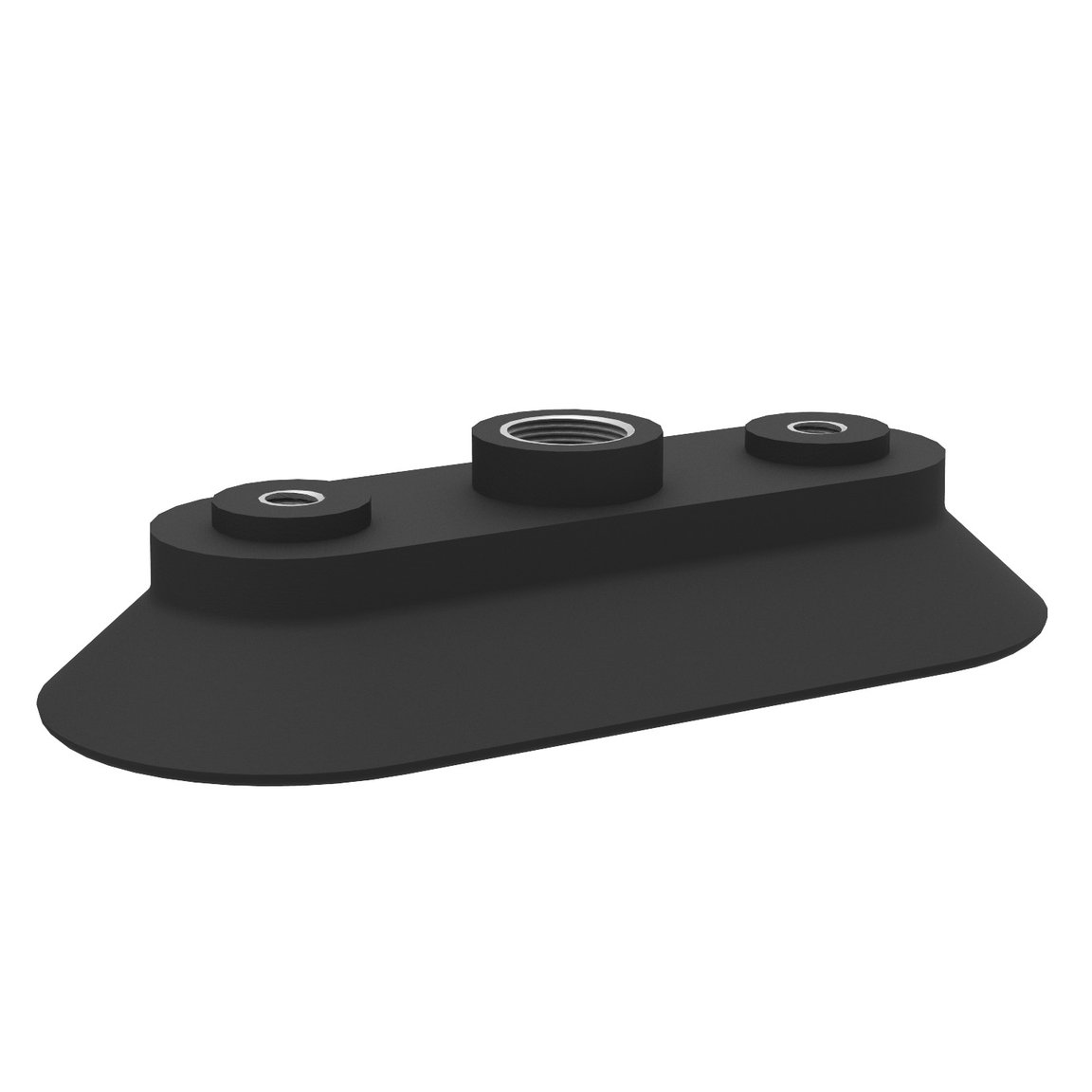

Suction cup OC60x140 Nitrile, G3/8" female
Suitable for handling oblong objects with flat or curved surface.
Read more-
Description
Suitable for handling oblong objects with flat or curved surface.
-
Features
- Suitable for handling oblong objects with flat or curved surface.
- Good stability and little inherent movement.
- Thick, durable lip.
-
Specifications
General
ApplicationDry sheet metalSuction cup shapeOval ConcaveMaterialNitrile (NBR)Suction cup modelOCWeight160 gVolume52 cm³Suction cup modelOC60x140Movement, vertical max.7.5 mmCurve radius, min.200 mmFitting
Fitting optionNoneFitting size3/8"Fitting styleFemaleFitting typeG-threadDimension
Height30 mmOuter diameter138 mmWidth61 mmPerformance - lifting forces
OC60x140
20 -kPa60 -kPa90 -kPa186 N373 N510 NDimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
Resources
Data sheet
-
FAQ
How do I know which lifting forces I need?It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).
How do I know which suction cup to choose?Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.
How should Piab suction cups be stored?Please see our storage guidelines:
Storage guidelines of suction cups and rubber products (pdf)
I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.
What is DURAFLEX®?DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
