Item number: 0213949
5 Variants

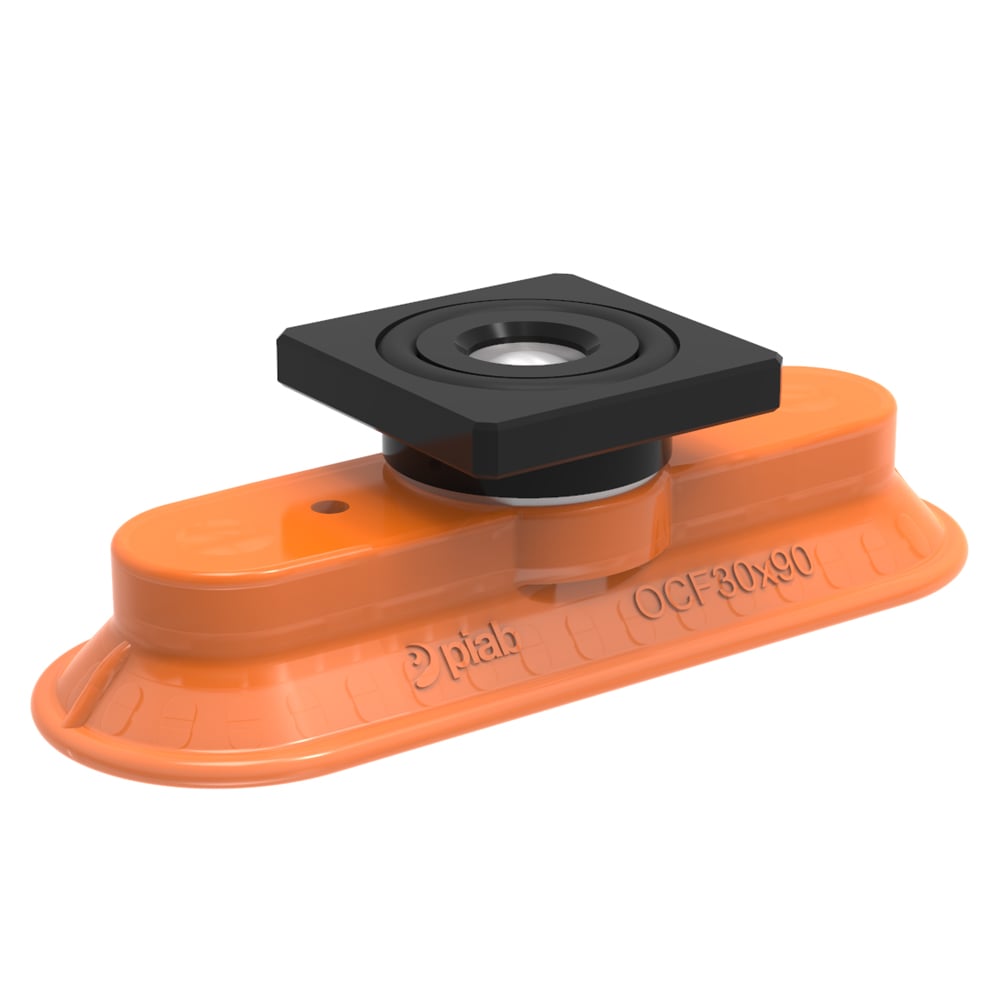

Suction cup OCF30x90 Polyurethane 55/60, T-slot with mesh filter
Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can wi...
Read more
Login or create account to access all our content and features!
Select variant
- 0121786
- 0122456
- 0122459
- 0213949
- 0213934
Features
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0,1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The "OCF" design is suitable for oblong objects with slightly curved or flat surfaces.
- Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal , Dry sheet metal
Suction cup model
OCF-P
Volume
17 cm³
Weight, min.
24 g
Fitting
Material
Al
Fitting option
Filter mesh
Fitting size
None
Fitting style
T-slot
Fitting type
None
Dimension
Height
29.5 mm
Length
92.5 mm
Width
32.5 mm
Performance - lifting forces
OCF-P
60 -kPa
111 N
107 N
90 -kPa
157 N
160 N
Performance - lifting forces
OCF-P
Material
Name
Polyurethane (PU55)
Colour
Orange
Temperature
10 - 50 °C
Hardness
55 °Shore A
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Petrol
+
Wear resistance
+++
+++
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Petrol
+
Wear resistance
+++
+++
Dimensional drawings
This activity requires login. Please login or register to receive the full benefits of piab.com.
CAD
CAD
Datasheet
PDF
Certificates
PDF
PDF
PDF
White papers
PDF
