Item no: 0121865
5 VARIANTS

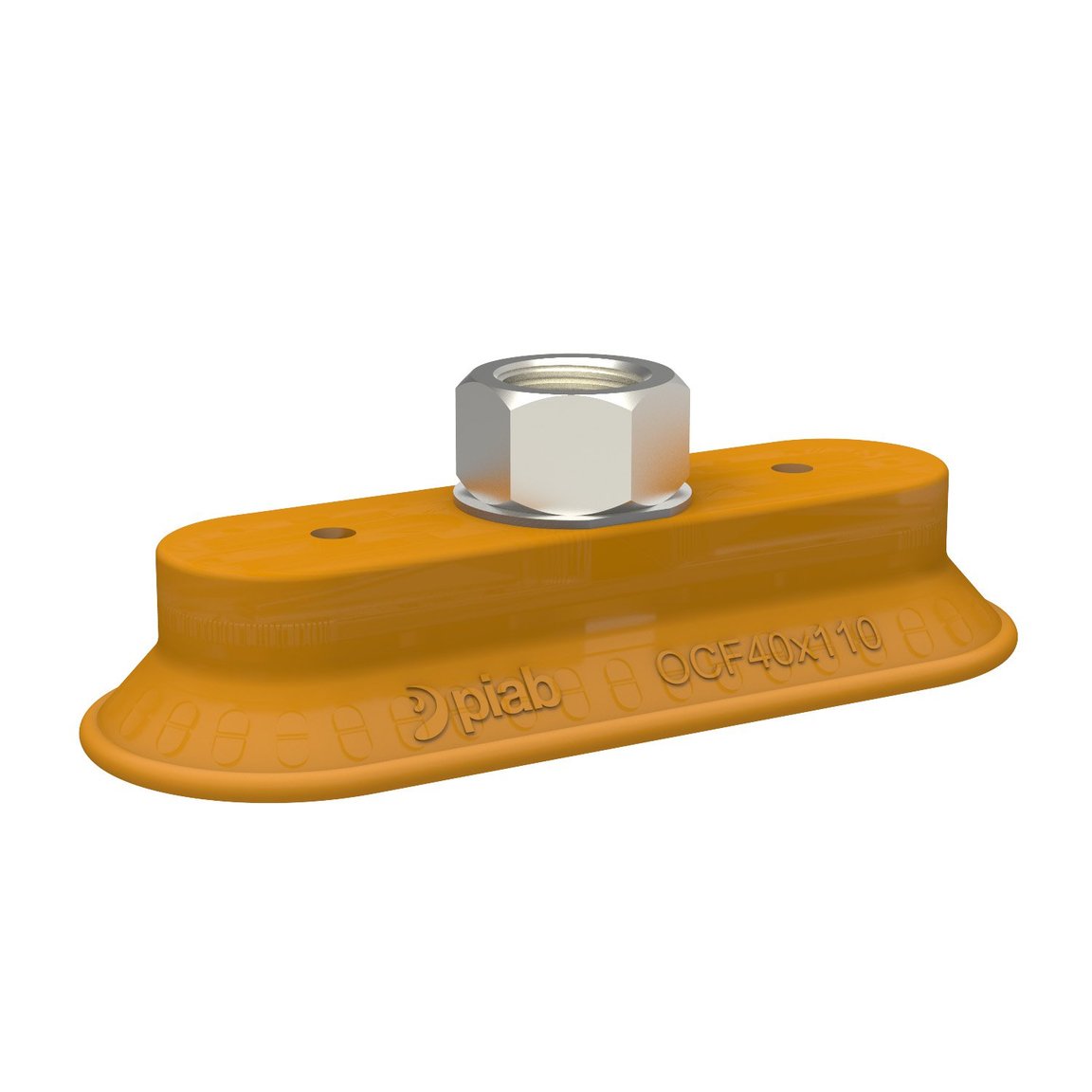

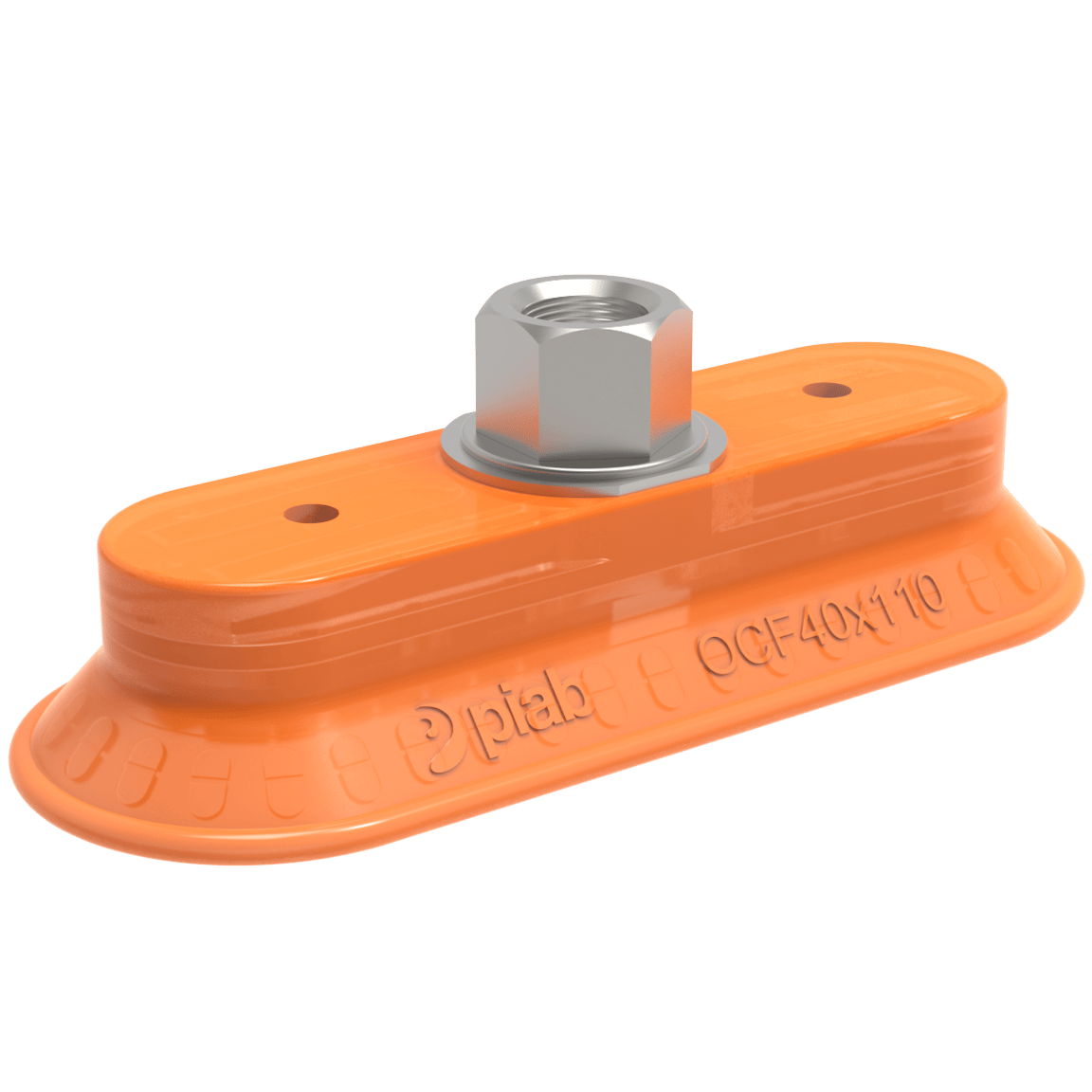

Suction cup OCF40x110P Polyurethane 55/60, 3/8" NPT female
Special designed friction cups for oily surfaces, such as sheets in metal forming processes. Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups. The OCF-P design is suitable for oblong objects with slightly domed and flat surfaces, such as those encountered with body parts in the automotive industry. The suction cups have support cleats that prevent thin objects from being disfigured. DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Read moreFeatures
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0,1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The "OCF" design is suitable for oblong objects with slightly curved or flat surfaces.
- Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
-
Industries
Automotive
- De-stacking
- Bodysides & framing
- Door on / off ergo tools
- Glass assembly & installation
- Gas tank assembly and installation
-
Specifications
General
Suction cup shapeConcaveApplicationOily sheet metalSuction cup designOvalCharacteristicsOily sheet metalMaterialPolyurethane (PU)Suction cup modelOCF-PWeight55 gVolume34 cm³Suction cup modelOCF40X110P Dry metal sheetSpecificationDry metal sheetMovement, vertical max.5.3 mmCurve radius, min.42 mmSuction cup modelOCF40X110P Oily steel plateSpecificationOily steel plateFitting optionNoneFitting size3/8"Fitting styleFemaleFitting typeNPT-threadHeight35.5 mmLength113 mmWidth (1)43 mmPerformance - lifting forces
OCF40X110P Dry metal sheet
60 -kPa90 -kPa167 N232 NOCF40X110P Oily steel plate
60 -kPa90 -kPa185 N246 N54 N78 NMaterial
NameColourOrangeTemperature10 - 50 °C10 - 50 °CHardness55 °Shore A60 °Shore AAlcoholn/an/aConcentrated acids++Ethanol++Hydrolysis++Methanol--Oil++++++Oxidation--Petrol++Wear resistance++++++Weather and ozone++++++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
