49 N
117 N
171 N
Select variant
-
0102374Suction cup OC35x90P Polyurethane 40, G3/8" female
-
0102375Suction cup OC35x90P Polyurethane 40, 3/8" NPSF female
-
0103303Suction cup OC35x90P Polyurethane 60, 3/8" NPSF female
-
0103305Suction cup OC35x90P Polyurethane 60, G3/8" female
-
0115306Suction cup OC35x90P Polyurethane 40
-
0115307 Suction cup OC35x90P Polyurethane 40, adjustable thread insert G3/8" male with mesh filter
-
0115313Suction cup OC35x90P Polyurethane 60, adjustable thread insert G3/8" male with mesh filter

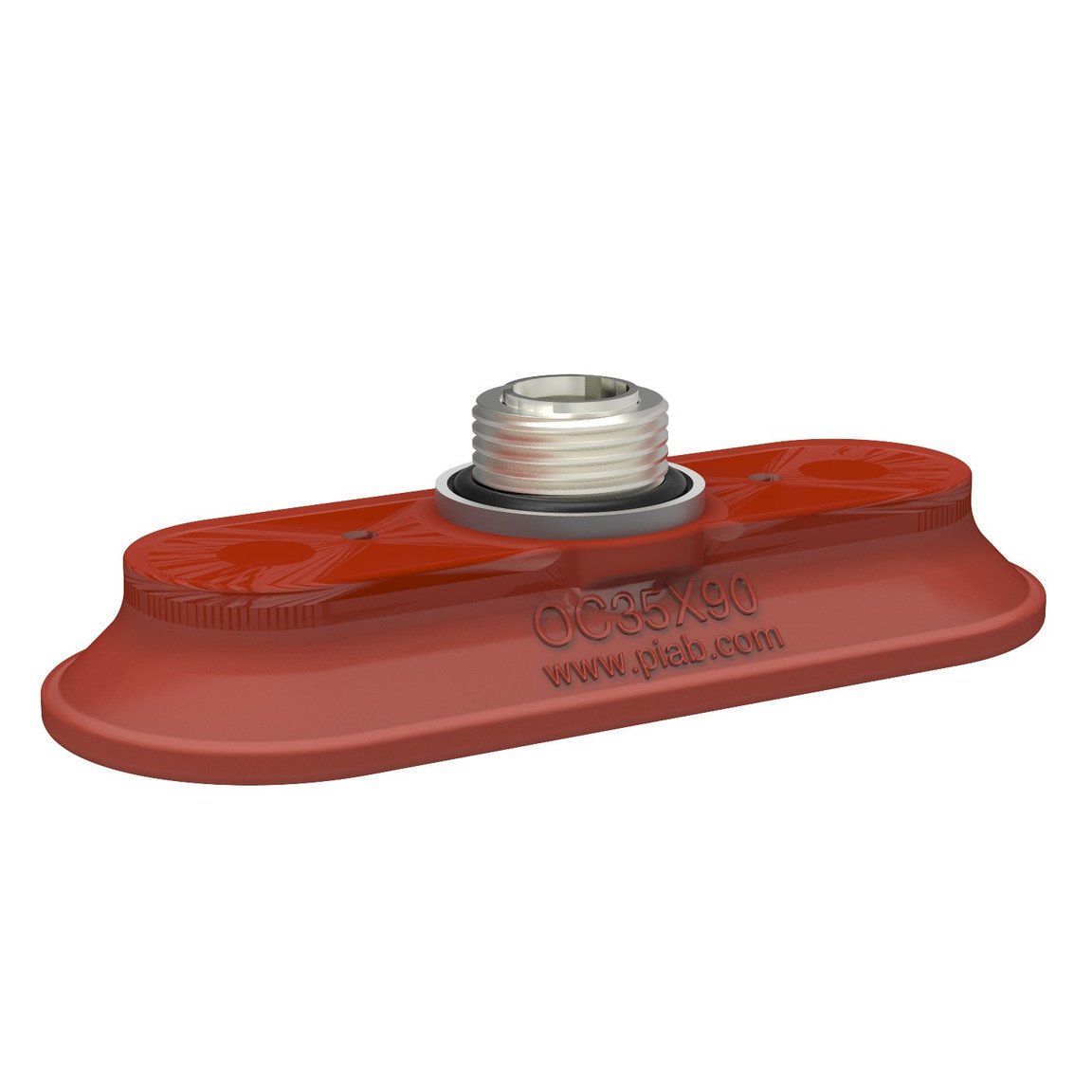

Item no: 0115307
Suction cup OC35x90P Polyurethane 40, adjustable thread insert G3/8" male with mesh filter
Suitable for oblong objects with slightly domed or flat and oily surfaces, such as those encountered in body parts in the automotive industry. DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Read more-
Description
Suitable for oblong objects with slightly domed or flat and oily surfaces, such as those encountered in body parts in the automotive industry. DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
-
Features
- Suitable for oblong objects with slightly domed or flat and oily surfaces, such as those encountered in body parts in the automotive industry.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
- Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
-
Specifications
General
ApplicationMark FreeSuction cup shapeOval ConcaveMaterialPolyurethane (PU40)Suction cup modelOC-PWeight27 - 40 gVolume20 cm³Suction cup modelOC35x90P PU40Movement, vertical max.3 mmFitting
Fitting optionFilter meshFitting size3/8"Fitting styleMaleFitting typeG-threadDimension
Height26 mmOuter diameter94 mmWidth37 mmPerformance - lifting forces
OC35x90P PU40
20 -kPa60 -kPa90 -kPa53 N112 N147 NMaterial
NamePU40ColourRedTransparentTemperature10 - 50 °CHardness40 °Shore APU40Alcoholn/aConcentrated acids+Ethanol+Hydrolysis+Methanol-Oil+++Oxidation-Petrol+Wear resistance+++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
