Item number: 0207599
9 Variants

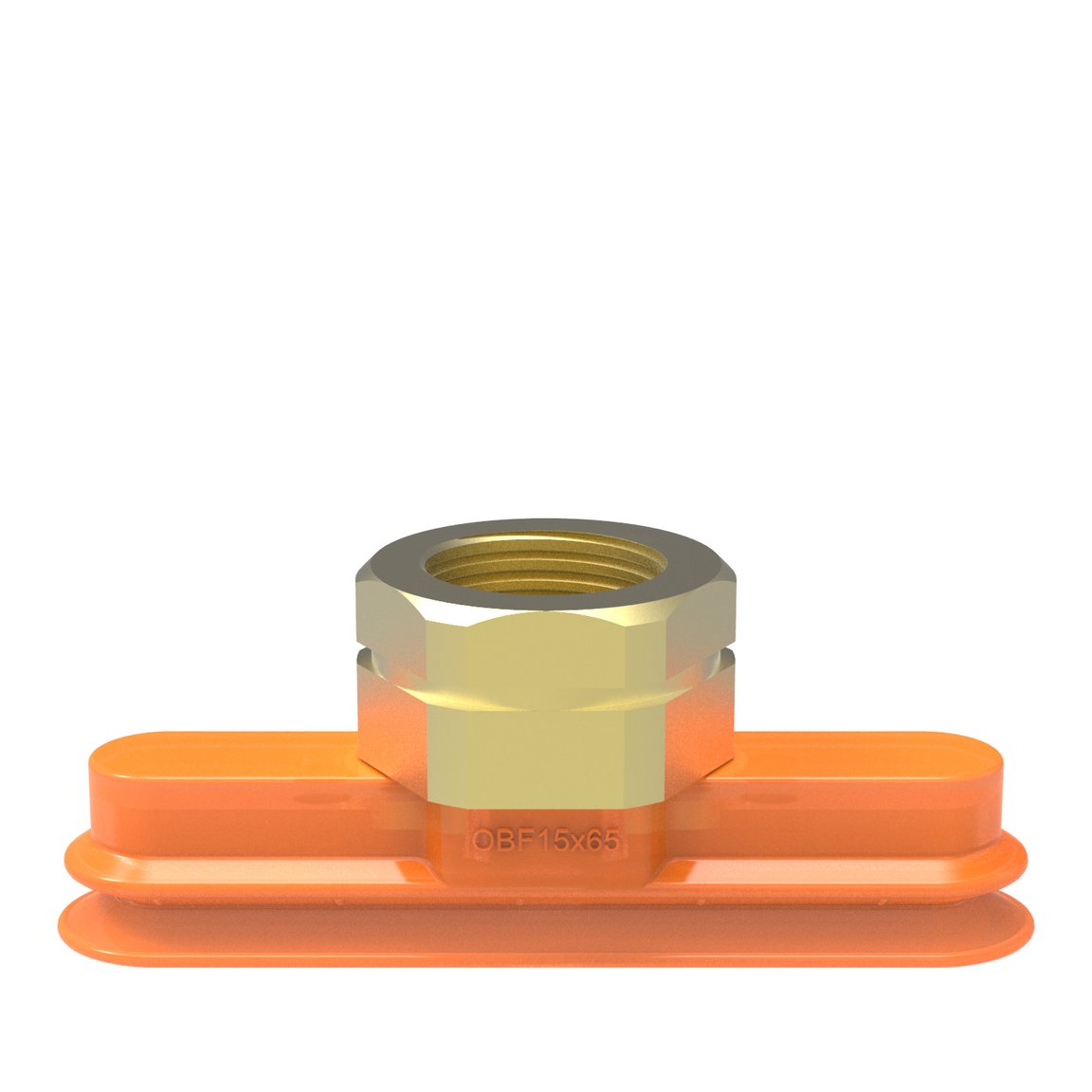

Suction cup OBF15x65P Polyurethane 60, NPT3/8" female
Login or create account to access all our content and features!
Select variant
0207607
0207609
0207605
0207615
0207613
0209502
0207611
0207599
0207603
Features
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0,1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The small "OBF" cups are suitable for narrow objects with curved or flat surfaces and small gripping areas, such as those encountered with body parts in the automotive industry.
- Can handle objects with minor height differences.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
OBF
Volume
2.6 cm³
Weight, min.
27 g
Fitting
Material
Brass
Fitting option
None
Fitting size
3/8"
Fitting style
Female
Fitting type
NPT-thread
Dimension
Height
27.1 mm
Length
66 mm
Length, actuated
66.5 mm
Width
15 mm
Width, actuated
15 mm
Performance - lifting forces
OBF15x65P Oily metal sheet
60 -kPa
31 N
7 N
90 -kPa
41 N
8 N
Performance - lifting forces
OBF15x65P Dry metal sheet
60 -kPa
41 N
31 N
90 -kPa
52 N
35 N
Material
Name
Polyurethane (PU60)
Colour
Orange
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Petrol
+
Wear resistance
+++
+++
Dimensional drawings
