Item number: 0205915
2 Variants

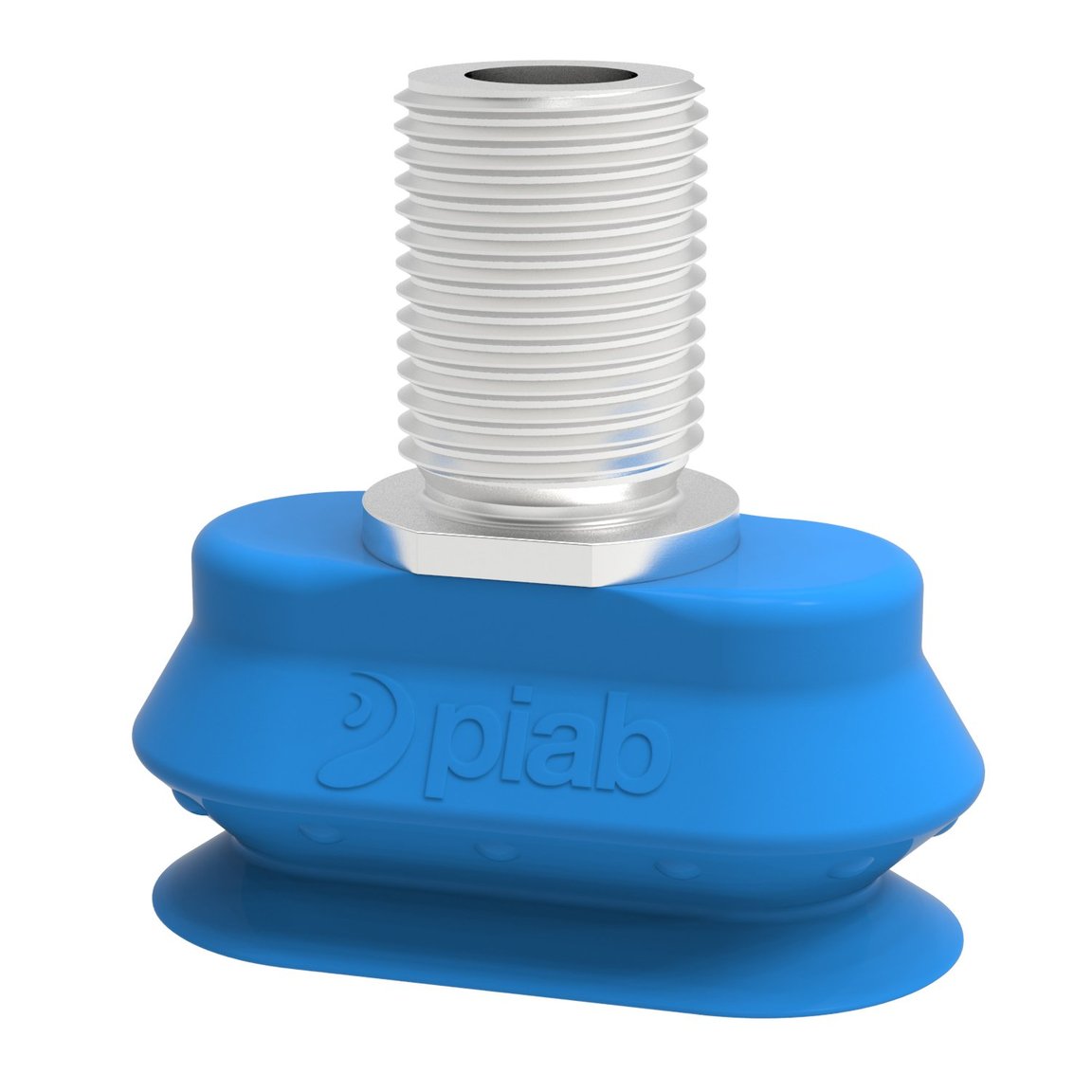

Suction cup F-OB 20x40 Silicone, G1/4" male SS, detectable, FCM
Login or create account to access all our content and features!
Select variant
0205918
0205915
Features
- The silicone material complies with FDA 21 CFR 177.2600 and EU 1935/2004.
- Long lasting high-end silicone material
- A low percentage metal additive (Fe) is mixed with the rubber material to make it detectable.
- Suitable for frozen and raw food.
- Excellent grip on oblong parts with irregular surfaces and different heights, even at fast speeds and accelerations
- Available with male threaded and integrated Acid proof Stainless steel fittings.
- Easy to clean with hygienic design. No dust/dirt pockets.
- Low vacuum level needed to collapse bellows. Reduces risk for damaging the handled food product
Food & beverage
Packaging
- Direct food contact
General
Material
Silicone (SIL)
Characteristics
Food contact materials (FDA & EU), detectable
Suction cup model
F-OB
Volume
5 cm³
Weight, min.
41.9 g
Fitting
Material
ASTM 316L , SS
Fitting option
None
Fitting size
1/4"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
41.2 mm
Length
40.8 mm
Width
20.8 mm
Mechanical data
Load, torque, max.
13 Nm
Performance - lifting forces
F-OB 20x40
10 -kPa
3.3 N
2.9 N
20 -kPa
6.9 N
6 N
40 -kPa
12 N
12.6 N
Material
Name
Silicone (SIL detectable FCM)
Colour
Blue
Temperature
-40 - 200 °C
Hardness
40 °Shore A
Material resistance
Alcohol
++
Concentrated acids
-
Ethanol
n/a
Hydrolysis
+
Methanol
n/a
Oil
-
Oxidation
+++
Petrol
-
Wear resistance
++
+++
