Item number: 0108675
6 Variants

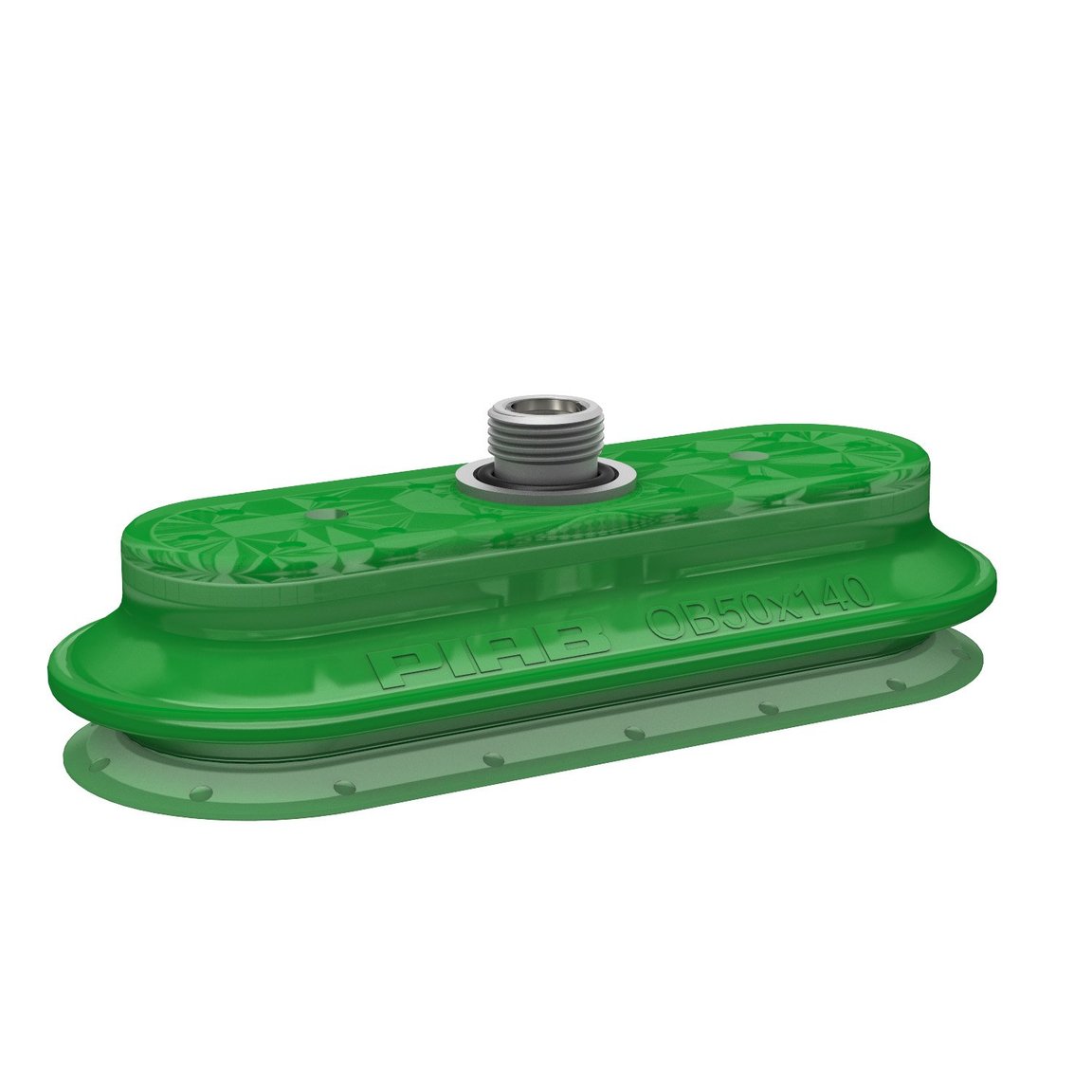

Suction cup OB50x140P Polyurethane 60, thread insert G3/8" male, with mesh filter
The oval suction cups are suitable for handling of long and narrow objects and surfaces when maximum lifting force is desired. Oval suction cups are specially s...
Read more
Login or create account to access all our content and features!
Select variant
0108674
0108675
0109858
0109859
0109914
0109915
Features
- Suitable for level adjustment. Can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- In the two coloured suction cup, the bellows and the sealing lip are of different hardnesses, which makes the suction cup strong and stable and, at the same time, soft and flexible.
- DURAFLEX® are suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Case / carton erecting, case / carton opening closing
- Robot pick and place and packing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
Plastics
- Plastic part removal
General
Material
Polyurethane (PU)
Characteristics
Mark free
Suction cup model
OB
Volume
95 cm³
Weight, min.
129 g
Fitting
Fitting option
Filter mesh
Fitting size
3/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
44.5 mm
Length
146 mm
Outer diameter, min.
146 mm
Width
59 mm
Performance - lifting forces
OB50x140P PU60
20 -kPa
77 N
122 N
60 -kPa
231 N
292 N
90 -kPa
368 N
396 N
Material
Name
Polyurethane (PU60)
Colour
GreenTransparent
Temperature
10 - 50 °C
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Petrol
+
Wear resistance
+++
+++
Dimensional drawings
