T-slot Holder - G3/8" male

T-slot Holder - G3/8" male - Universal

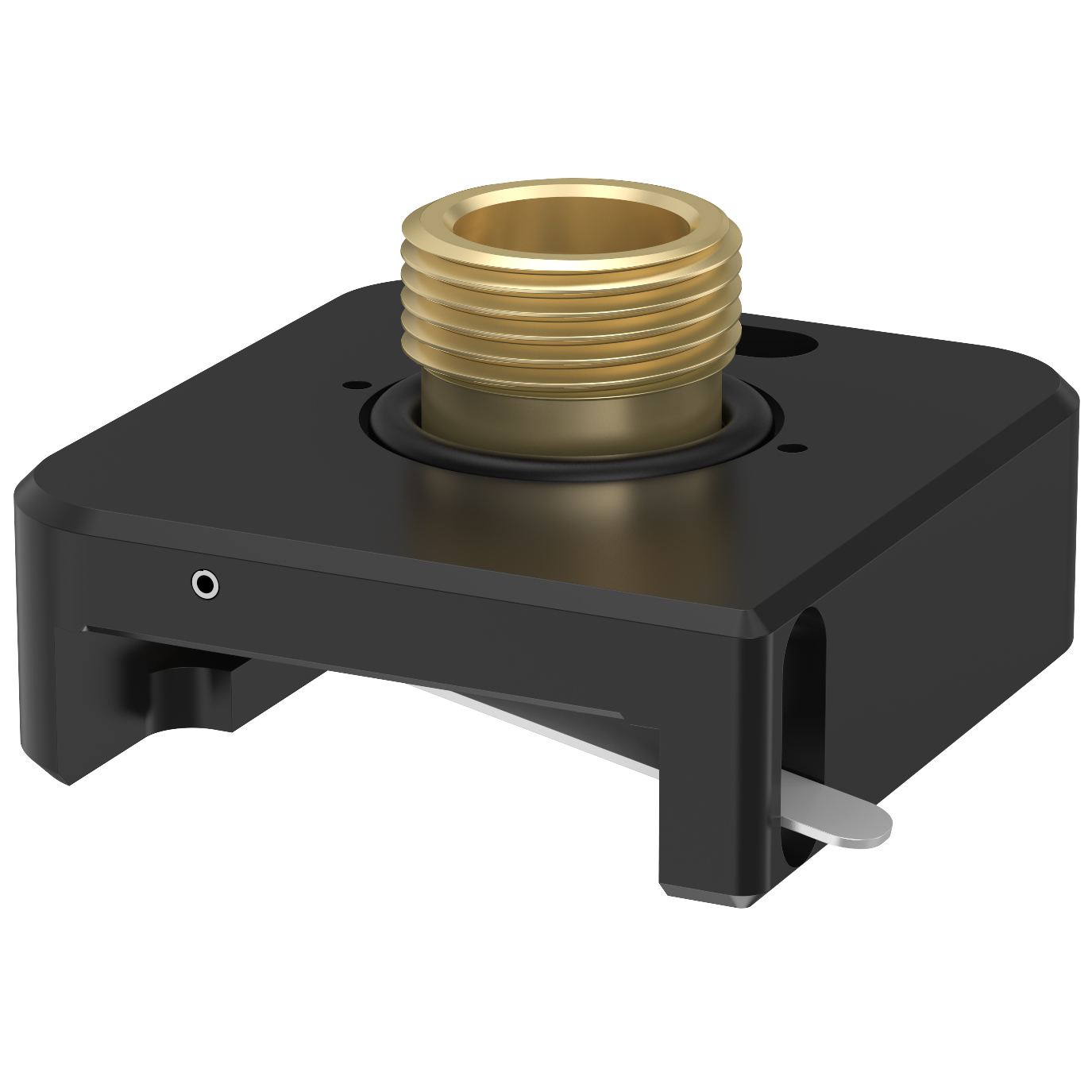

Piab T-slot holder for automotive end-of-arm tooling.

Description

Piab T-slot holder for automotive end-of-arm tooling.
Features
- Enables quick and tool-free change of suction cups with T-slot fittings.
- Fits the Piab T-slot adaptors in accordance with automotive standard for end-of-arm tooling.
- Enables non-rotating mounting, good when using oval suction cups.
- Made of anodized aluminum including o-ring to ensure air-tightness.
Specifications

General

Material

SS, AL, CUZN, NBRFKM

Weight, min.

55 g

Fitting

Fitting size

3/8"

Fitting style

M, T

Fitting type

G-thread

Pneumatic data

Volume, internal

1,5 cm³

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Resources

CAD

T-slot Holder - G3/8" male - Universal

Data sheet

T-slot Holder - G3/8" male - Universal

Manuals

Storage guidelines for suction cups and other rubber products

Brochures

Vacuum Automation - Improve your productivity and energy efficiency

White papers

Suction cups enable the vacuum to grip

The road to state-of-the-art car production starts in the press shop

Getting a grip on bags

Filling without spilling
FAQ

How do I know which lifting forces I need?

It depends on the weight of the product that should be lifted and how many suction cups that can be used for the object. Calculate the weight to be lifted per suction cup and then take the weight multiplied with the gravity force (g = 9,81) and you have the lifting force needed in Newton (N).

How do I know which suction cup to choose?

Our recommendation is to start at the application listing to find the products we recommend to different applications. If you have questions please do not hesitate to contact our partners to find the optimum solution.

How should Piab suction cups be stored?

Please see our storage guidelines:

Storage guidelines of suction cups and rubber products (pdf)

I have a variation of number of objects to be lifted - how can I make sure to not drop them or to use too much energy? How to optimize this type of system?

All suction cups not in contact with an object (open) will draw in a lot of air and demand a larger pump than actually necessary. By using different valves, such as piSAVE® sense, in the suction cups, the suction cups will be normally closed until they come in contact with the handled object. Only the cups needed in the specific lifting cycle will be open and flow air. Please see the video piSAVE® sense.

What is DURAFLEX®?

DURAFLEX® is a patented material specially developed to feature the elasticity of rubber and the wear resistance of polyurethane. The DURAFLEX® material is mark-free.
