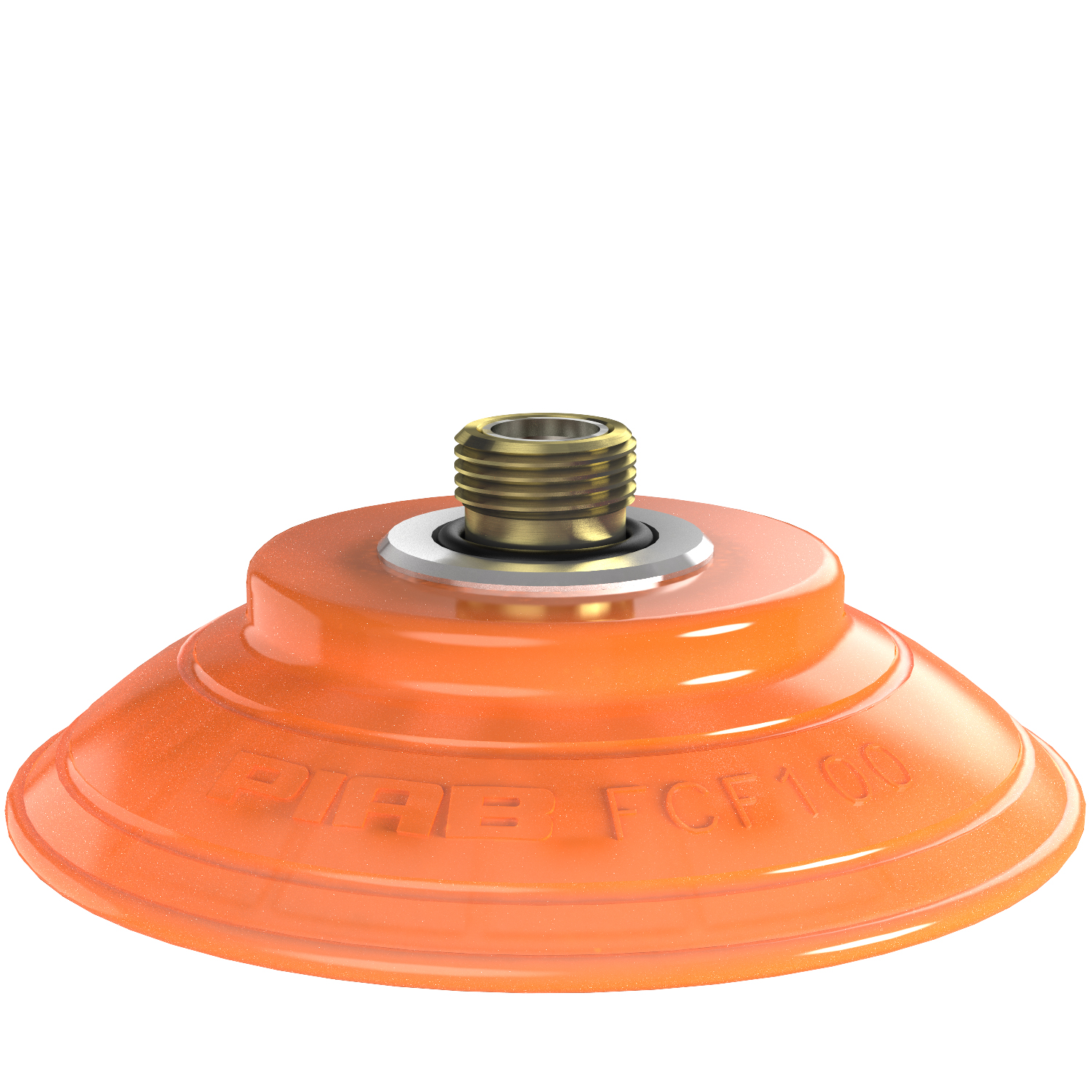

Suction cup FCF100P Polyurethane 55/60 G3/8" male, with mesh filter - 1
Номер товара: 0118430
9 Варианты

Suction cup FCF100P Polyurethane 55/60 G3/8" male, with mesh filter

Конструкция FCF-P подходит для маслянистых, плоских и слегка куполообразных поверхностей. Например, эти вакуумные присоски можно использовать для подачи металли...
Читать далее
Войдите или создайте учетную запись для доступа ко всем нашим материалам и функциям!

Варианты

  • Suction cup FCF100P Polyurethane 55/60 G3/8" male, with mesh filter
    0118430
  • Suction cup FCF100P Polyurethane 55/60, G3/8" female
    0118432
  • Suction cup FCF100P Polyurethane 55/60, M10x1.5 male
    0121385
  • Suction cup FCF100P Polyurethane 55/60, 3/8" NPT female
    0122285
  • Suction cup FCF100P Polyurethane 55/60, G3/8" female, plastic thread
    0124669
  • Suction cup FCF100P Polyurethane 55/60, G3/8" female, 17 mm thread
    0200690
  • Suction cup FCF100P Polyurethane 55/60, T-slot, with mesh filter
    0206931
  • Suction cup FCF100P Polyurethane 55/60, G1/4" female
    0206938
  • Suction cup FCF100P Polyurethane 55/60, G1/4" Male
    0213911

Особенности

  • Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
  • Normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet.
  • Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
  • The "FCF" design is suitable for slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines.
  • The suction cups have support cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
