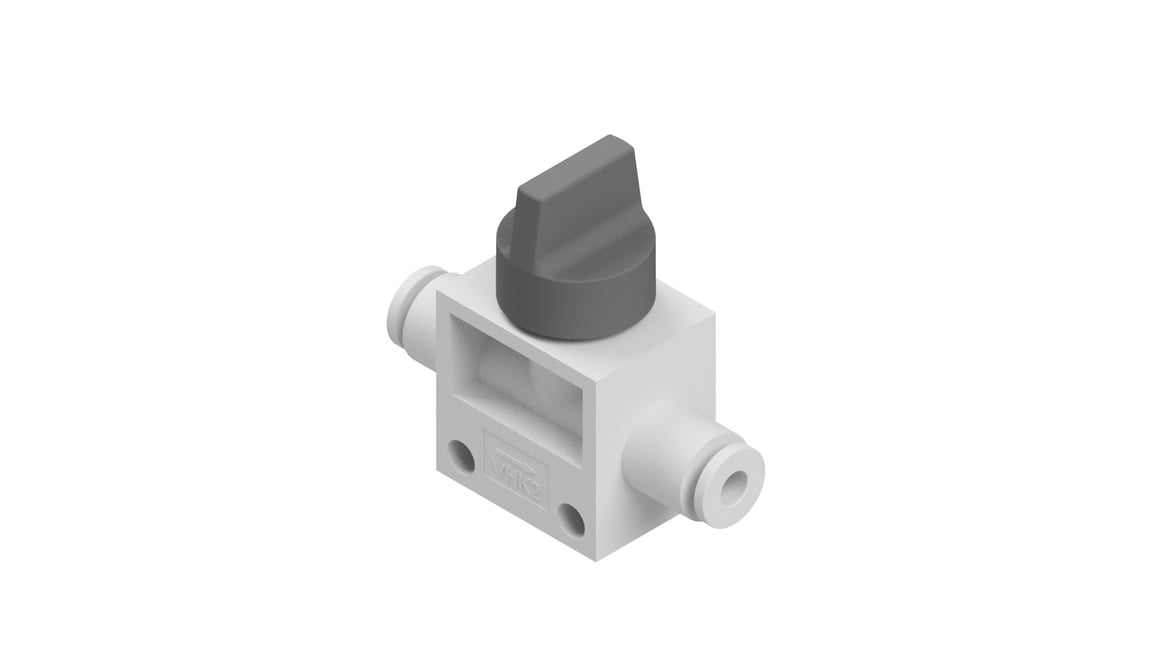

VHK2-04F-04F Shut Off Valve

Características

• Finger valve series VHK has a large effective area of 2.0 to 17.5mm². This series begins with a minimum tube O.D of ø4.
• The valve direction clearly indicates whether the valve is open or closed (shut to open is counter- clockwise).
• Classification of knob by color difference facilitates distinction between 2 port valves (gray) and 3 port valves (blue).
• The optional flame resistant model's knob, whether using the 2 or 3 port valve, is red.
• Finger valve, standard.
• 2 or 3 port available.
• Effective area: 2.0 to 17.5mm².
• Max. operating pressure: 1.0MPa.
• Fluid: air.
