Suction cup FC100 Nitrile-PVC 60, G3/8" male - 1
アイテム番号: 3250062P
23バリエーション

Suction cup FC100 Nitrile-PVC 60, G3/8" male

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened lip extends the life of the cup considerably. Also available in oval shape for oblong objects.
全てのコンテンツと機能にアクセスするためにログインまたはアカウント作成してください！
ダウンロードメールで共有

バリエーション

  • Suction cup FC100P Polyurethane 40
    0103297
  • Suction cup FC100P Polyurethane 60
    0103299
  • Suction cup FC100P Polyurethane 40, 1/8" NPSF female, with mesh filter
    0103731
  • Suction cup FC100P Polyurethane 60, 1/8" NPSF female, with mesh filter
    0103733
  • Suction cup FC100P Polyurethane 40, G3/8" female, with mesh filter
    0103734
  • Suction cup FC100P Polyurethane 60, G3/8" female, with mesh filter
    0103736
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female, with mesh filter
    0103737
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female, with mesh filter
    0103739
  • Suction cup FC100P Polyurethane 40, G1/2" female, with mesh filter
    0103740
  • Suction cup FC100P Polyurethane 60, G1/2" female, with mesh filter
    0103742
  • Suction cup FC100P Polyurethane 40, for tread insert

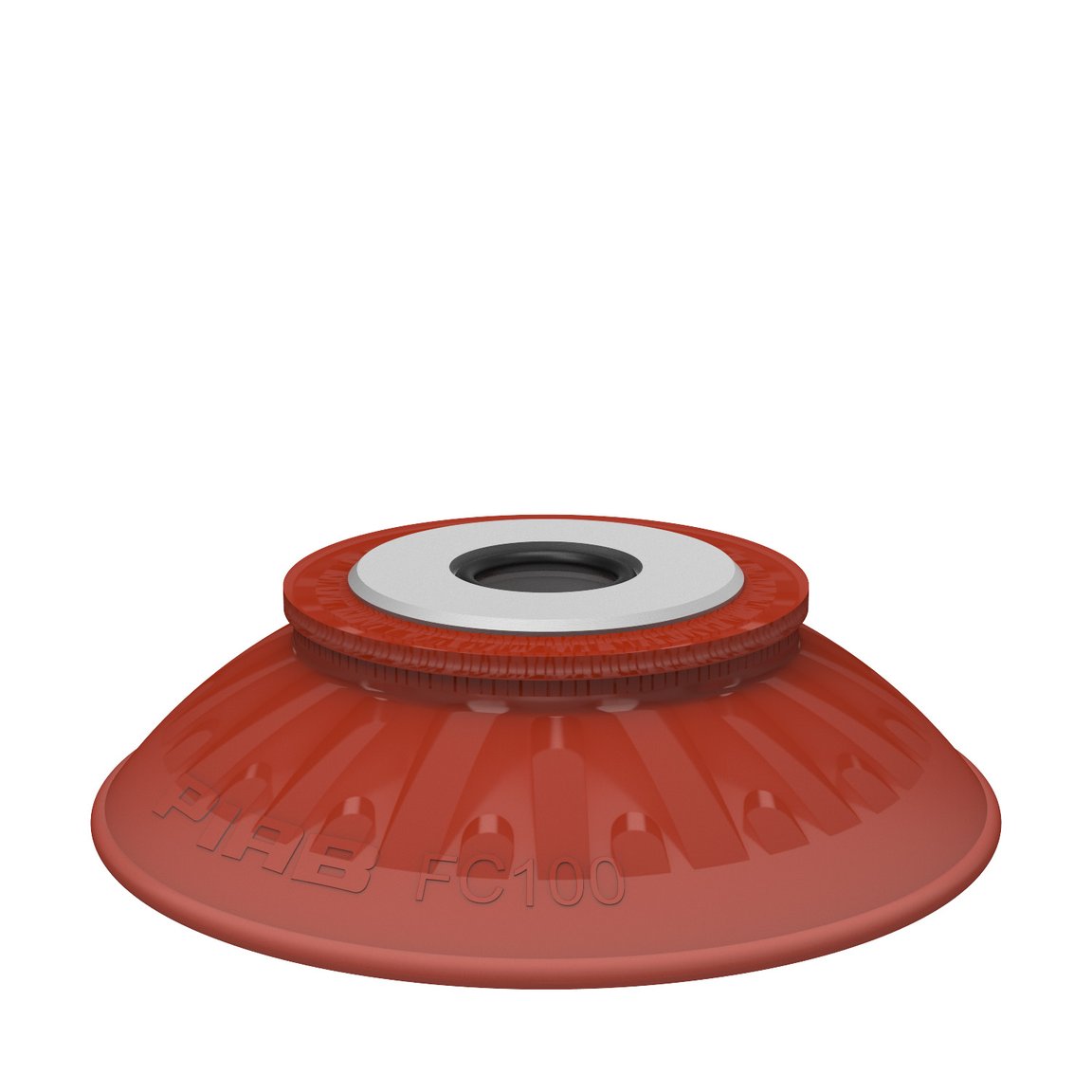

    0106835
  • Suction cup FC100P Polyurethane 40, thread insert G3/8" male, with mesh filter
    0106836
  • Suction cup FC100P Polyurethane 60, for tread insert
    0107304
  • Suction cup FC100P Polyurethane 60, thread insert G3/8" male, with mesh filter
    0107305
  • Suction cup FC100P Polyurethane 40, 3/8" NPSF female
    0108798
  • Suction cup FC100P Polyurethane 60, 3/8" NPSF female
    0108799
  • Suction cup FC100 Nitrile-PVC 60
    3150213P
  • Suction cup FC100 Nitrile-PVC 60, G3/8" male
    3250062P
  • Suction cup FC100 Nitrile-PVC 60, 1/8" NPSF female, with mesh filter
    0101880
  • Suction cup FC100 Nitrile-PVC 60, with washer
    3150094P
  • Suction cup FC100 Nitrile-PVC 60, G3/8" female, with mesh filter
    0101881
  • Suction cup FC100 Nitrile-PVC 60, 3/8" NPSF female, with mesh filter
    0101882
  • Suction cup FC100 Nitrile-PVC 60, G1/2" female, with mesh filter
    0101883

特徴

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
