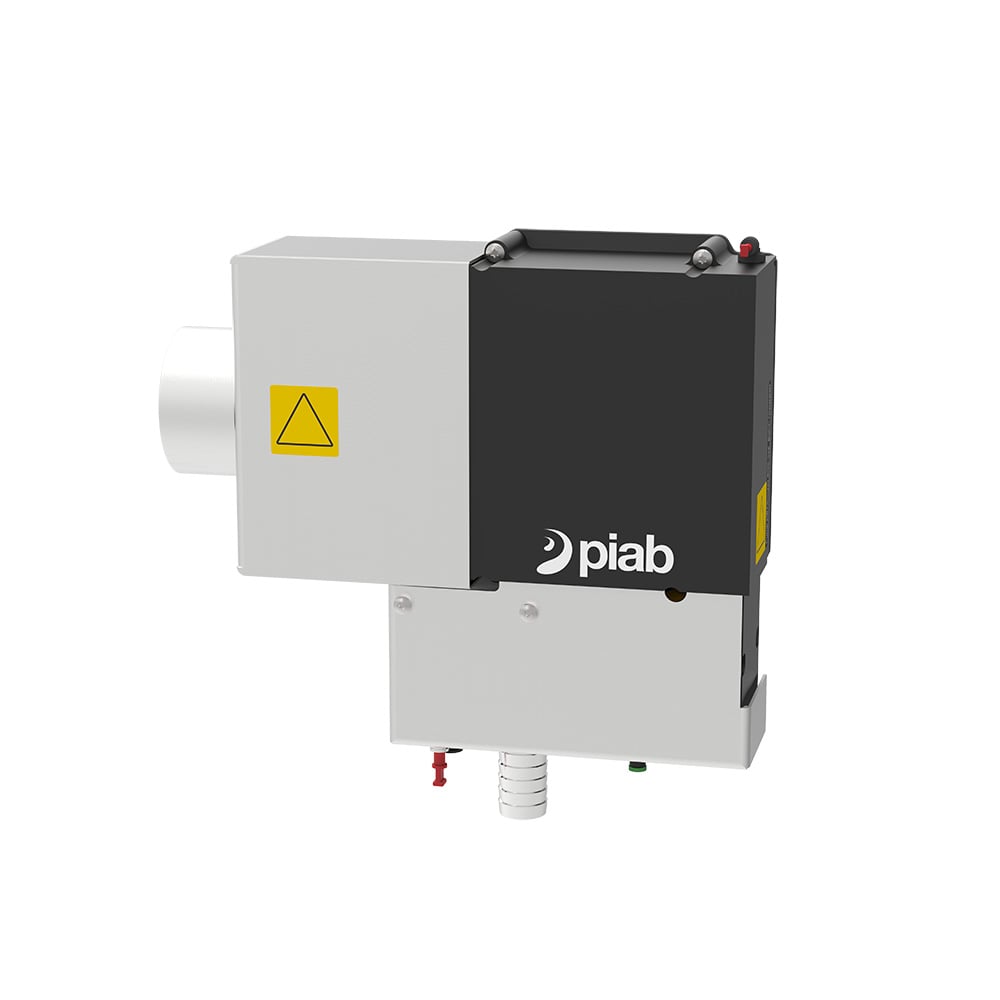

To optimize, upgrade or complete a conveyor, Piab offers also the vacuum pumps/generators as a stand alone.
Read moreFeed pressure | Air consumption | Vacuum flow (scfm) at different vacuum levels (-inHg) | Max vacuum | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
psi | scfm | 0 | 2 | 5 | 8 | 11 | 14 | 17 | 20 | 23 | 26 | -inHg |
58 | 10.59 | 42.38 | 24.58 | 16.1 | 10.17 | 6.78 | 3.39 | 0.85 | 0 | 0 | 0 | 17.72 |
72.5 | 12.71 | 48.31 | 27.97 | 18.65 | 11.87 | 7.2 | 5.3 | 2.97 | 1.53 | 0 | 0 | 20.67 |
87 | 14.83 | 50.85 | 29.66 | 22.037 | 14.41 | 7.63 | 5.085 | 4.24 | 2.97 | 0 | 0 | 22.15 |
Feed pressure | Air consumption | Evacuation time (s/cf) to reach different vacuum levels (-inHg) | Max vacuum | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
psi | scfm | 2 | 5 | 8 | 11 | 14 | 17 | 20 | 23 | 26 | -inHg |
58 | 141.58 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 17.72 |
72.5 | 169.9 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 20.67 |
87 | 198.22 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 22.15 |
