Item no: 01.12.310 3 VARIANTS

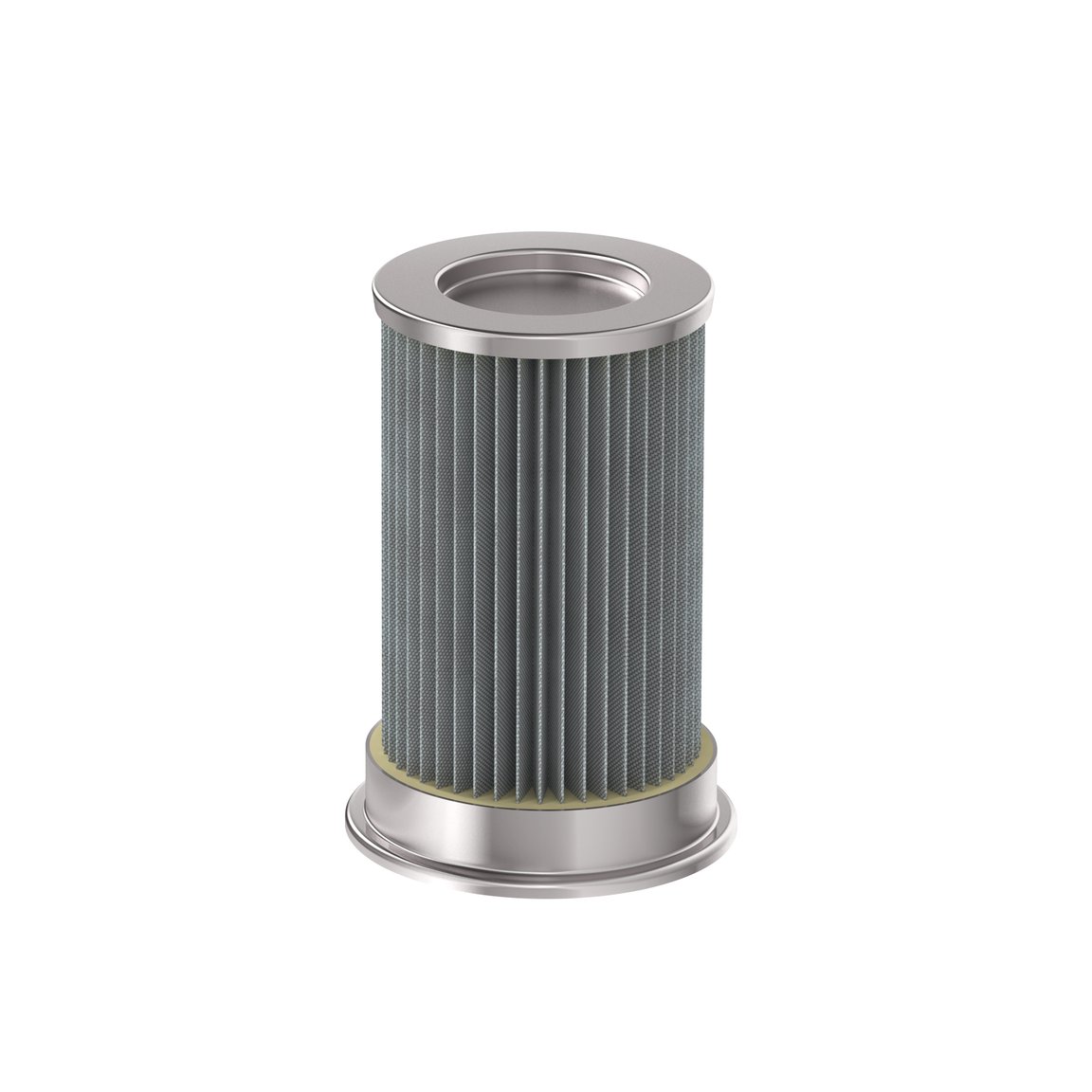

Pleated filter L=198

To filter dust and other small particles from the vacuum flow. Reduces the risk of operation breakdown or stoppage in the pump. There is a selection ATEX approved filters.

Check availability

Request quote

Downloads

VARIANTS

Features

Fulfils the requirements of FDA, EC No. 1935/2004 and EC No. 10/2011.
The filter is antistatic and in compliance with ATEX.
Suitable for extreme fine and free flowing powder, i.e. toner.

Specifications

General

Material

PUR, PTFE, EN14571, PL

Filter area

3.23 ft²

Particle size, min.

0.5 μm

Temperature, max.

176 °F

Weight

1.83 lb

Inner diameter

2.89 in

Length

8.031 in

Outer diameter

4.93 - 5.51 in

Dimensional drawings

This activity requires login
Please login or register to receive the full benefits of piab.com.
Resources

Data sheet

Pleated filter L=198

Manuals

Cleaning instructions for pleated filter_en
