Item number: 0210595
9 Variants

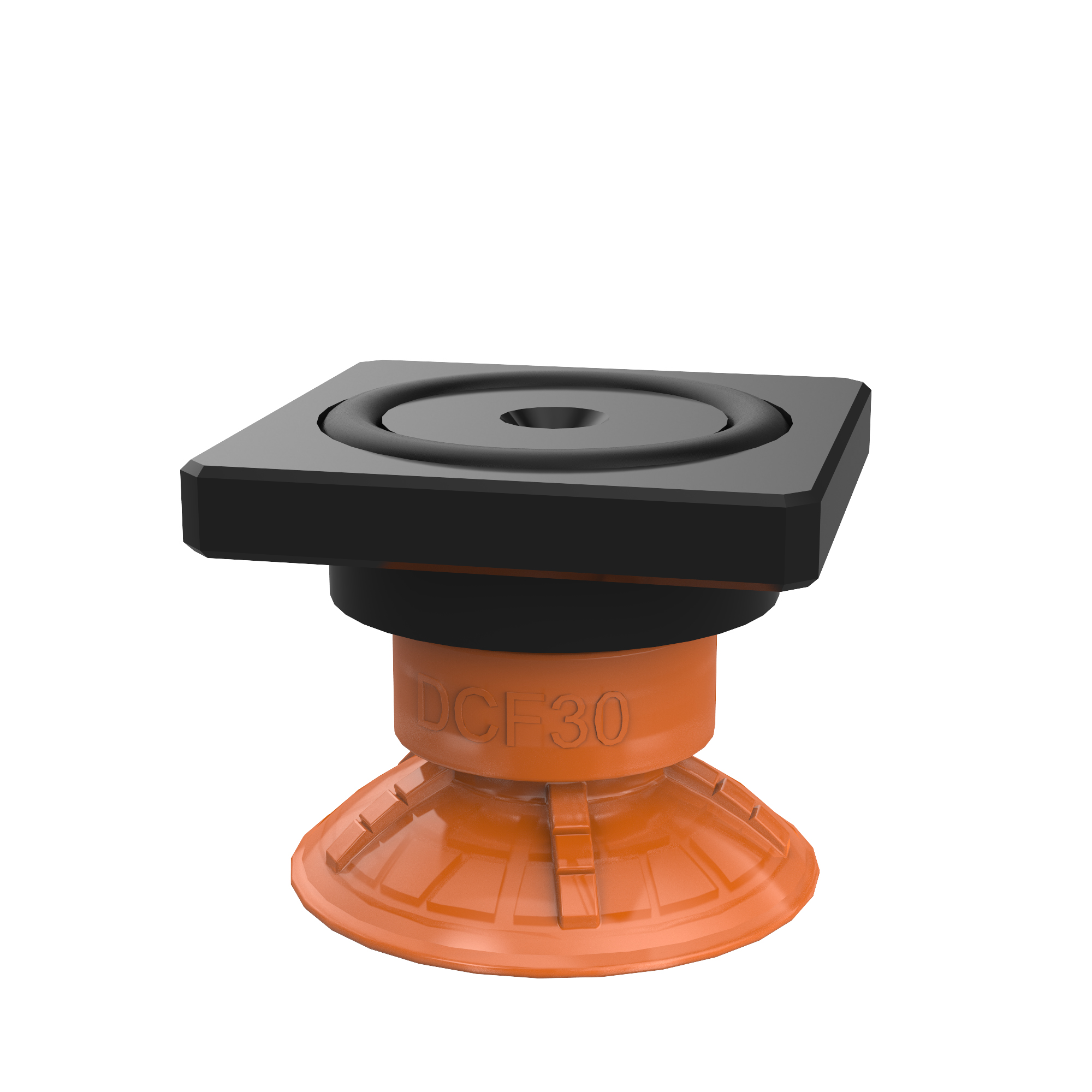

Suction cup DCF30P Polyurethane 60, T-slot
Login or create account to access all our content and features!
Select variant
- 0210171
- 0210588
- 0210589
- 0210590
- 0210591
- 0210592
- 0210593
- 0210594
- 0210595
Automotive
- Bodysides & framing
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
DCF
Volume
0.098 in³
Weight, min.
0.88 oz
Fitting
Material
Al
Fitting style
T-slot
Dimension
Height
0.84 in
Height 2 (Actuated)
0.69 in
Outer diameter, actuated
1.26 in
Outer diameter, min.
1.18 in
Performance - lifting forces
DCF30 Dry metal sheet
17.72 -inHg
6.74 lbf
3.82 lbf
26.58 -inHg
9.22 lbf
6.07 lbf
Performance - lifting forces
DCF30 Oily metal sheet
17.72 -inHg
5.85 lbf
2.7 lbf
26.58 -inHg
7.87 lbf
3.82 lbf
Material
Name
Polyurethane (PU60)
Color
Orange
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
