Item number: 0110347
21 Variants

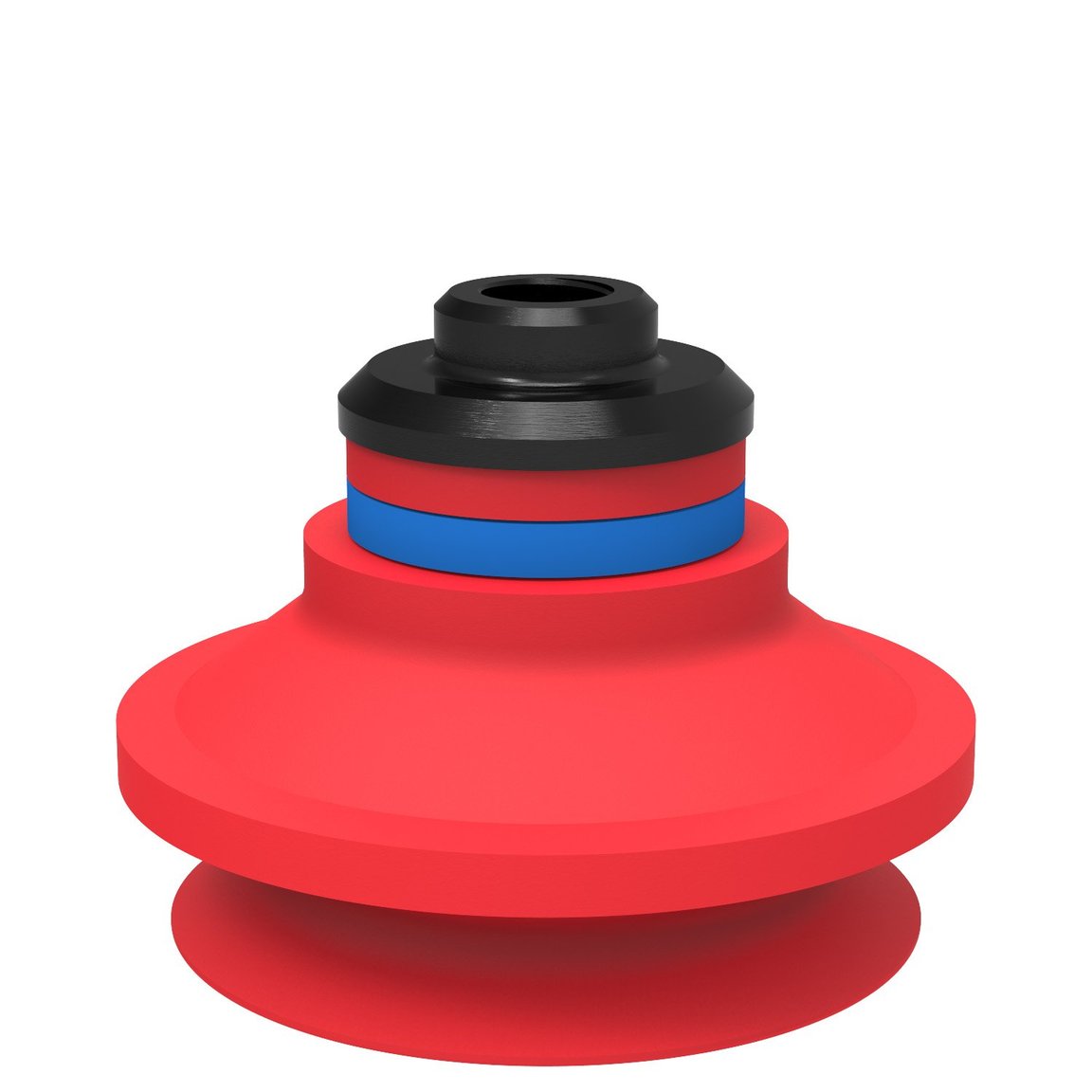

Suction cup B50-2 Silicone with filter, 1/8" NPSF female, PA
Login or create account to access all our content and features!
Select variant
- 0101109
- 0101110
- 0101656
- 0101657
- 0101658
- 0101659
- 0101660
- 0101661
- 0101662
- 0101663
- 0101669
- 0101670
- 0101671
- 0101672
- 0101673
- 0101674
- 0101675
- 0101676
- 0101677
- 0110347
- 0110957
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
- Filter disk made of PE.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
B
Volume
1.95 in³
Weight, min.
0.71 oz
Fitting
Fitting option
Filter disc
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
1.75 in
Outer diameter, actuated
2.32 in
Outer diameter, min.
2.039 in
Performance - lifting forces
B50-2
5.91 -inHg
7.42 lbf
5.44 lbf
17.72 -inHg
14.61 lbf
11.51 lbf
26.58 -inHg
18.43 lbf
13.67 lbf
Material
Name
Silicone, SIL 50° Shore A
Color
Red
Temperature
-40 - 392 °F
Hardness
50 °Shore A
Material resistance
Alcohol
++
Concentrated acids
-
Ethanol
n/a
Hydrolysis
+
Methanol
n/a
Oil
-
Oxidation
+++
Gasoline
-
Wear resistance
++
+++
