Item number: 0101475
38 Variants

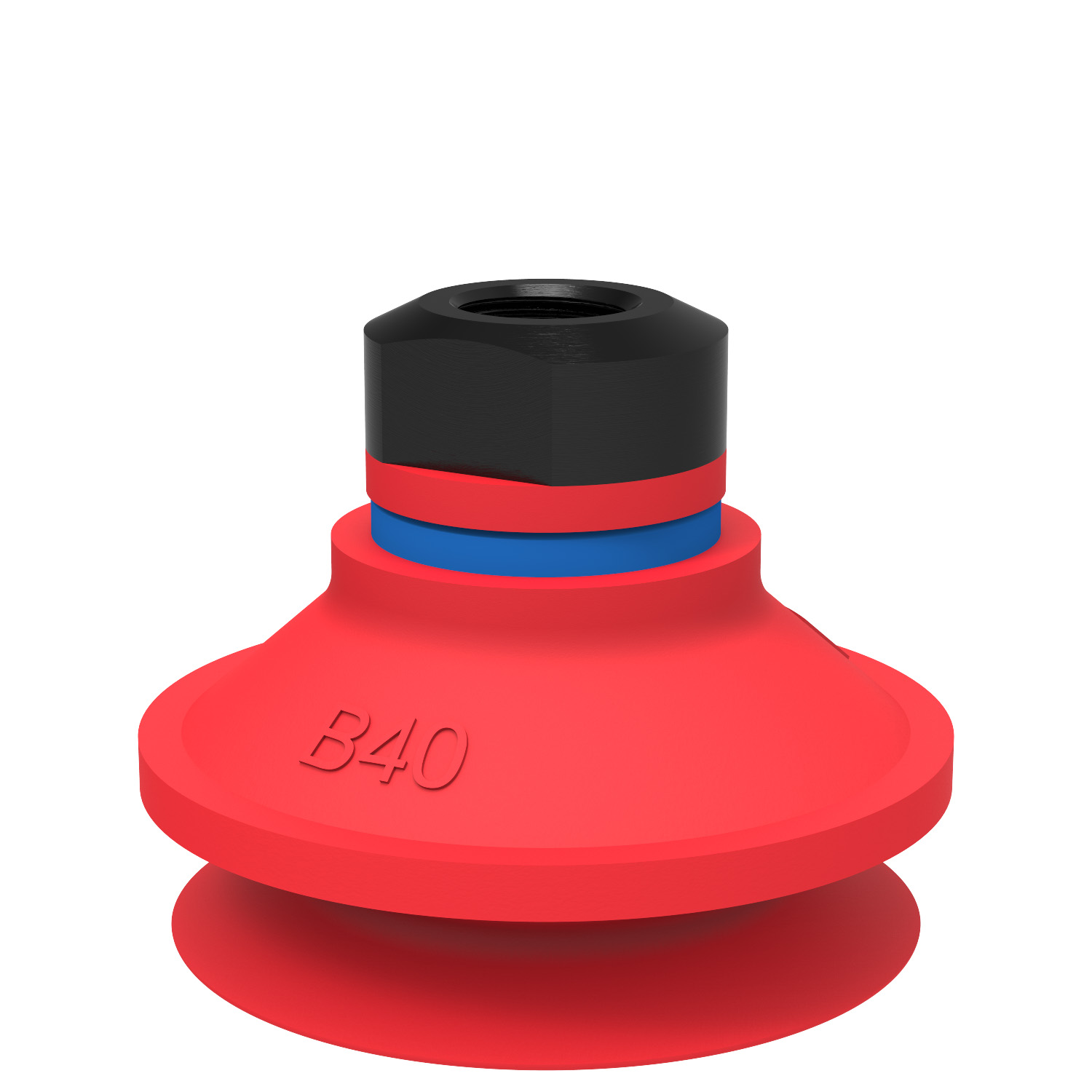

Suction cup B40 Silicone, 1/8" NPSF female, with mesh filter
Login or create account to access all our content and features!
Select variant
0101105
0101106
0101456
0101457
0101458
0101459
0101460
0101461
0101462
0101463
0101464
0101466
0101467
0101469
690923_1
0101471
0101472
0101473
0101474
0101475
0101476
0101477
0108081
0108082
0108169
0108170
0109843
0110337
9907166
9908658
9906571
9908774
9908775
9908776
9908777
9908778
9908779
9908780
Features
- Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- The lifting movement can be used to separate small and thin objects.
- Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
Logistics
Packaging
General
Material
Silicone (SIL)
Characteristics
Dry sheet metal , Plastic injection molded parts
Suction cup model
B
Volume
0.92 in³
Weight, min.
0.35 oz
Fitting
Fitting option
Filter mesh
Fitting size
1/8"
Fitting style
Female
Fitting type
NPSF-thread
Dimension
Height
1.42 in
Outer diameter, min.
1.69 in
Performance - lifting forces
B40
5.91 -inHg
4.95 lbf
3.84 lbf
17.72 -inHg
8.77 lbf
5.91 lbf
26.58 -inHg
11.016 lbf
6.86 lbf
Material
Name
Silicone, SIL 50° Shore A
Color
Red
Temperature
-40 - 392 °F
Hardness
50 °Shore A
Material resistance
Alcohol
++
Concentrated acids
-
Ethanol
n/a
Hydrolysis
+
Methanol
n/a
Oil
-
Oxidation
+++
Gasoline
-
Wear resistance
++
+++
Dimensional drawings
This activity requires login. Please login or register to receive the full benefits of piab.com.
CAD
CAD
Datasheet
PDF
PDF
Certificates
PDF
