Item number: 0207603
9 Variants

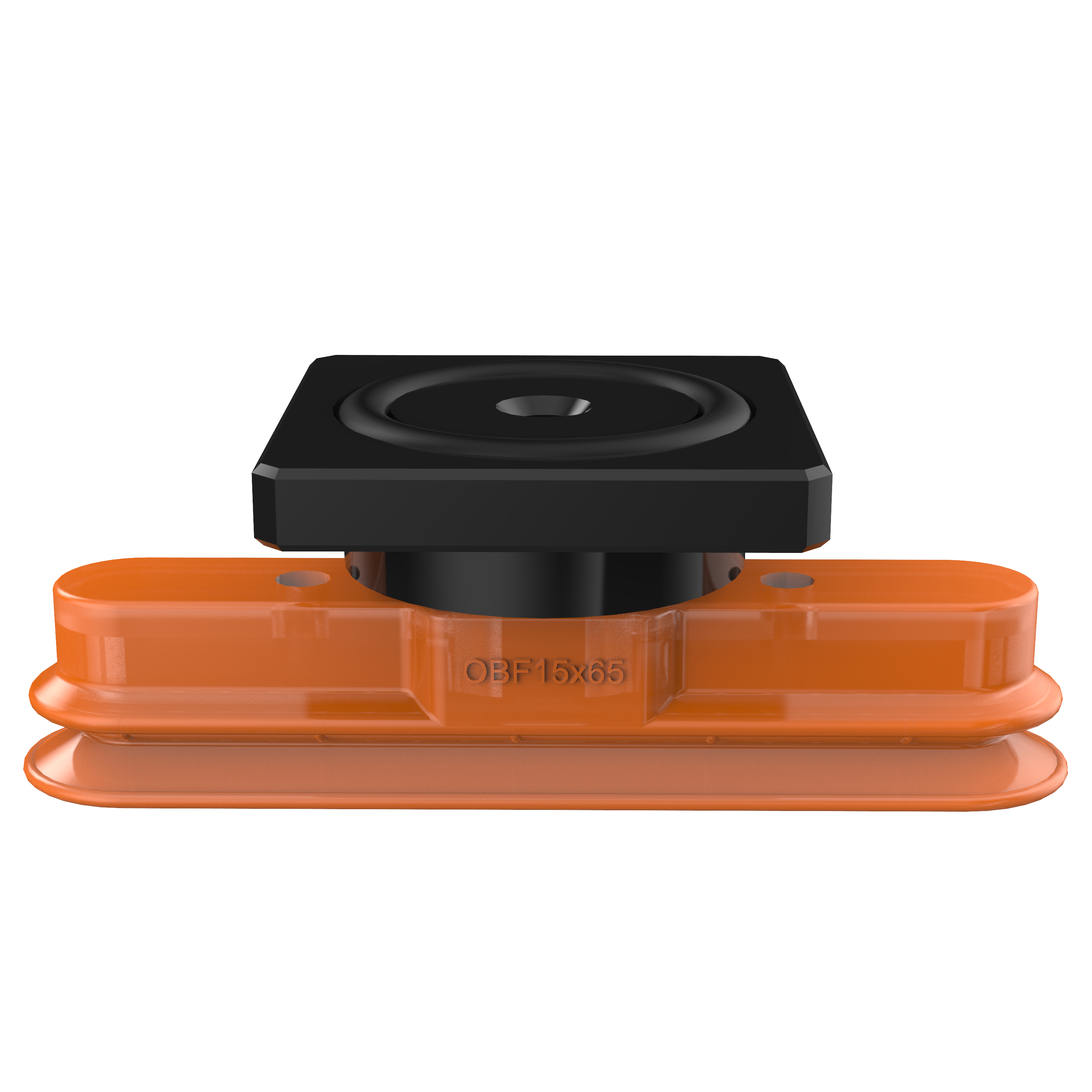

Suction cup OBF15x65P Polyurethane 60, T-slot
Login or create account to access all our content and features!
Select variant
0207607
0207609
0207605
0207615
0207613
0209502
0207611
0207599
0207603
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
OBF
Volume
0.16 in³
Weight, min.
0.67 oz
Fitting
Material
Al
Fitting option
None
Fitting size
None
Fitting style
T-slot
Fitting type
None
Dimension
Height
0.92 in
Length
2.6 in
Length, actuated
2.62 in
Width
0.59 in
Width, actuated
0.59 in
Performance - lifting forces
OBF15x65P Oily metal sheet
17.72 -inHg
6.97 lbf
1.57 lbf
26.58 -inHg
9.22 lbf
1.8 lbf
Performance - lifting forces
OBF15x65P Dry metal sheet
17.72 -inHg
9.22 lbf
6.97 lbf
26.58 -inHg
11.69 lbf
7.87 lbf
Material
Name
Polyurethane (PU60)
Color
Orange
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
