Item number: 0207583
9 Variants

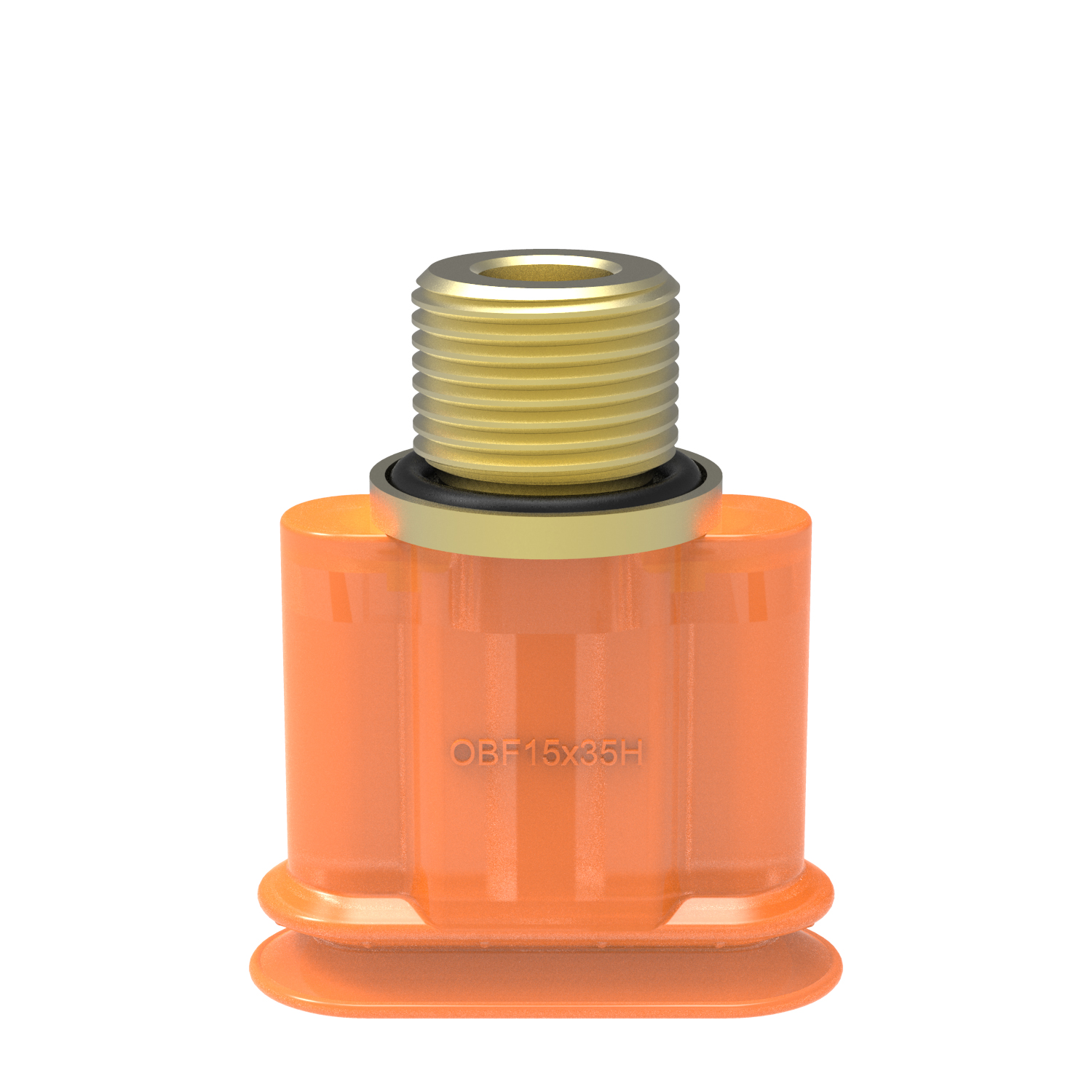

Suction cup OBF15x35P H Polyurethane 60, M10x1.5 male
Login or create account to access all our content and features!
Select variant
- 0207579
- 0207581
- 0207577
- 0207587
- 0207585
- 0209500
- 0207583
- 0207571
- 0207575
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
OBF
Volume
0.11 in³
Weight, min.
1.093 oz
Fitting
Material
Brass
Fitting option
None
Fitting size
M10×1.5
Fitting style
Male
Fitting type
M-thread
Dimension
Height
1.75 in
Length
1.42 in
Length, actuated
1.44 in
Width
0.59 in
Width, actuated
0.59 in
Performance - lifting forces
OBF15x35P H Dry metal sheet
17.72 -inHg
5.62 lbf
4.72 lbf
26.58 -inHg
6.97 lbf
5.62 lbf
Performance - lifting forces
OBF15x35P H Oily metal sheet
17.72 -inHg
4.27 lbf
1.12 lbf
26.58 -inHg
5.4 lbf
1.35 lbf
Material
Name
Polyurethane (PU60)
Color
Orange
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
