Item number: 0119129
6 Variants

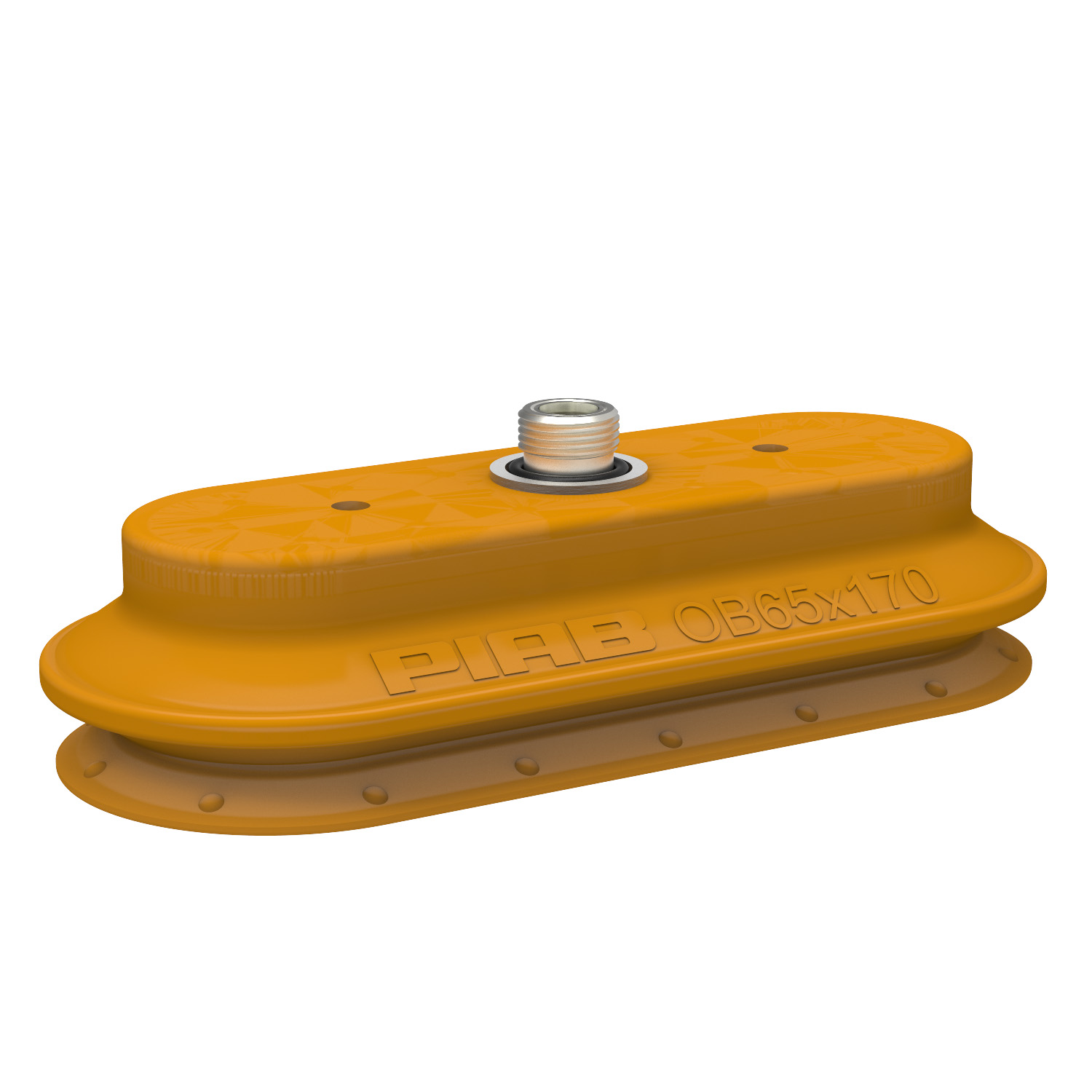

Suction cup OBF65x170P Polyurethane 55/60, G3/8" male, with mesh filter
Login or create account to access all our content and features!
Select variant
- 0122289
- 0119131
- 0119129
- 0121438
- 0213932
- 0213918
Features
- Special designed friction cups for oily surfaces, such as sheets in metal forming processes.
- Normal wear on friction cup will not affect the long term shear force performance.
- Best choice if > 0,1g/m2 press oil is used on the sheet.
- Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups.
- The "OBF" design is suitable for oblong objects with domed and flat surfaces, such as those encountered with body parts in the automotive industry.
- Can handle objects with height differences.
- Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
- DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
Automotive
- Bodysides & framing
- De-stacking
- Door on / off ergo tools
- Gas tank assembly and installation
- Glass assembly & installation
General
Material
Polyurethane (PU)
Characteristics
Oily sheet metal
Suction cup model
OBF
Volume
12.2 in³
Weight
10.19 - 10.93 oz
Fitting
Fitting option
Filter mesh
Fitting size
3/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
1.71 in
Length
7.36 in
Width (1)
3.23 in
Performance - lifting forces
OBF65x170P Oily steel plate
17.72 -inHg
90.6 lbf
120.95 lbf
26.58 -inHg
112.85 lbf
149.5 lbf
Performance - lifting forces
OBF65x170P Dry metal sheet
17.72 -inHg
89.25 lbf
98.24 lbf
26.58 -inHg
128.14 lbf
139.16 lbf
Material
Name
Polyurethane (PU55)
Color
Orange
Temperature
50 - 122 °F
Hardness
55 °Shore A
Material
Name
Polyurethane (PU60)
Color
GreenTransparent
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
Dimensional drawings
