Item number: 0109858
6 Variants

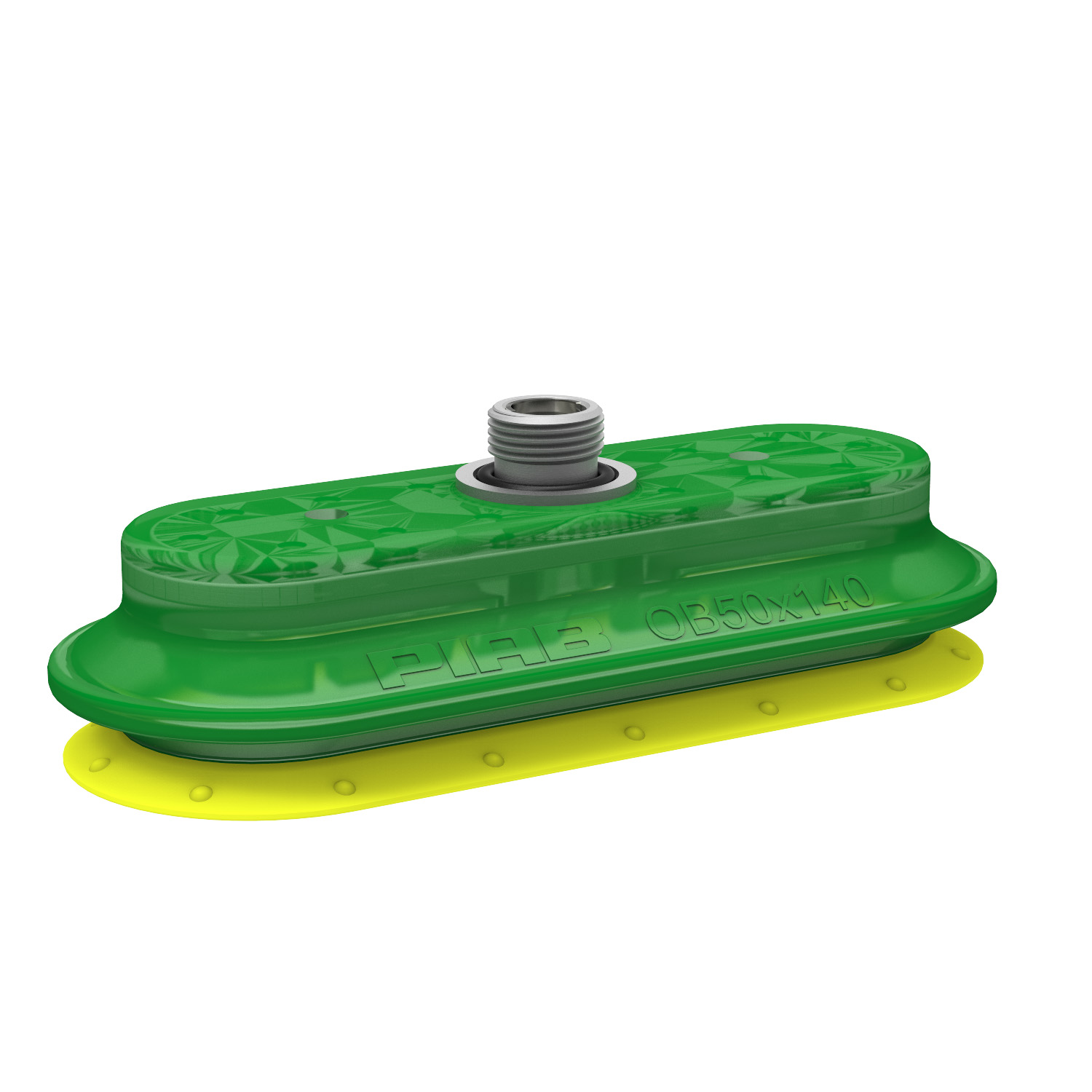

Suction cup OB50x140P Polyurethane 30/60, thread insert G3/8" male, with mesh filter
Login or create account to access all our content and features!
Select variant
- 0108674
- 0108675
- 0109858
- 0109859
- 0109914
- 0109915
Features
- Suitable for level adjustment. Can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
- Lifting movement to separate small and thin objects.
- Dual hardness allowing strength and stability in conjunction with softness and flexibility.
- DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
- The DURAFLEX® material is mark-free.
Automotive
- Plastic part removal
- Exterior and interior trim components assembly
Packaging
- Boxes and containers
- Card / lid feeding and sorting
- Case / carton erecting, case / carton opening closing
- Robot pick and place and packing
- Rotary carton feeding
- Slip sheet feeding
- Tray forming, tray unloading and loading
Plastics
- Plastic part removal
General
Material
Polyurethane (PU)
Characteristics
Corrugated / cardboard
Suction cup model
OB
Volume
5.8 in³
Weight, min.
4.55 oz
Fitting
Fitting option
Filter mesh
Fitting size
3/8"
Fitting style
Male
Fitting type
G-thread
Dimension
Height
1.75 in
Length
5.75 in
Outer diameter, min.
5.75 in
Width
2.32 in
Performance - lifting forces
OB50x140P PU30 PU60
5.91 -inHg
13.039 lbf
24.73 lbf
17.72 -inHg
52.83 lbf
58.45 lbf
26.58 -inHg
82.28 lbf
78.46 lbf
Material
Name
Polyurethane (PU30)
Color
Yellow
Temperature
50 - 122 °F
Hardness
30 °Shore A
Material
Name
Polyurethane (PU60)
Color
GreenTransparent
Temperature
50 - 122 °F
Hardness
60 °Shore A
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
Material resistance
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
-
Oil
+++
Oxidation
-
Gasoline
+
Wear resistance
+++
+++
