Item number: 0207617
10 Variants

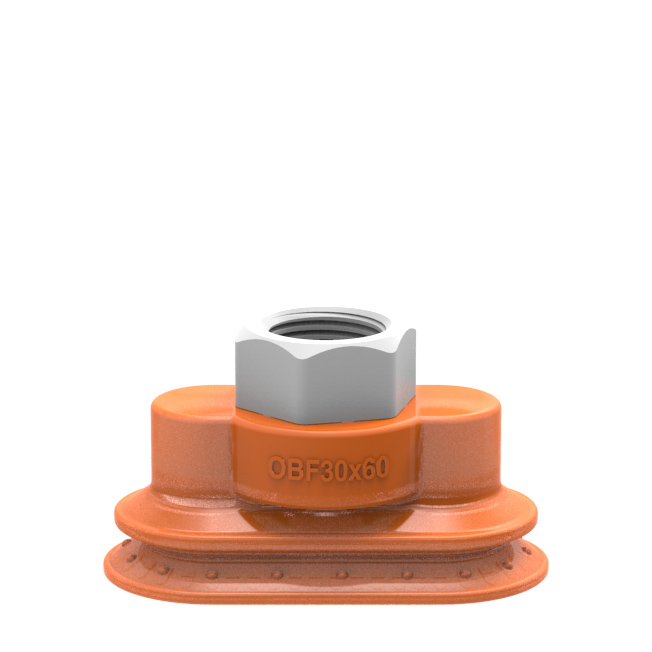

Suction cup OBF30x60P Polyurethane 60, G3/8" female plastic
Login or create account to access all our content and features!
Variants
- 0207617
- 0207733
- 0207734
- 0207735
- 0207736
- 0207737
- 0207738
- 0207739
- 0209490
- 0242506
Automobilbau
- Karosserieseiten und Rahmen
- Abstapeln
- Ergonomische Werkzeuge für die Türmontage/-demontage
- Montage und Installation von Treibstofftanks
- Montage und Installation von Glasteilen
General
Material
Polyurethan (PU)
Characteristics
Öliges Blech
Saugnapfmodell
OBF
Volumen
9.1 cm³
Gewicht, min.
19 g
Fitting
Material
PA66
Befestigungsoptionen
Kein
Anschlußgewinde
3/8"
Befestigungsart
Innengewinde
Befestigungstyp
G-Gewinde
Dimension
Höhe
33 mm
Länge
60 mm
Länge, betätigt
60.5 mm
Weite
30 mm
Weite, betätigt
30.6 mm
Performance - lifting forces
OBF30x60P Dry metal sheet
60 -kPa
60 N
74 N
90 -kPa
80 N
99 N
Performance - lifting forces
OBF30x60P Oily metal sheet
60 -kPa
43 N
32 N
90 -kPa
65 N
45 N
Material
Name
Polyurethane (PU60)
Farbe
Orange
Temperature
50 - 122 °F
Härtegrad
60 °Shore A
Material resistance
Alkohol
n/a
Konzentrierte Säuren
+
Etanol
+
Hydrolyse
+
Metanol
-
Öl
+++
Oxidation
-
Benzin
+
Verschleißfestigkeit
+++
+++
