Item number: 0207609
9 Variants

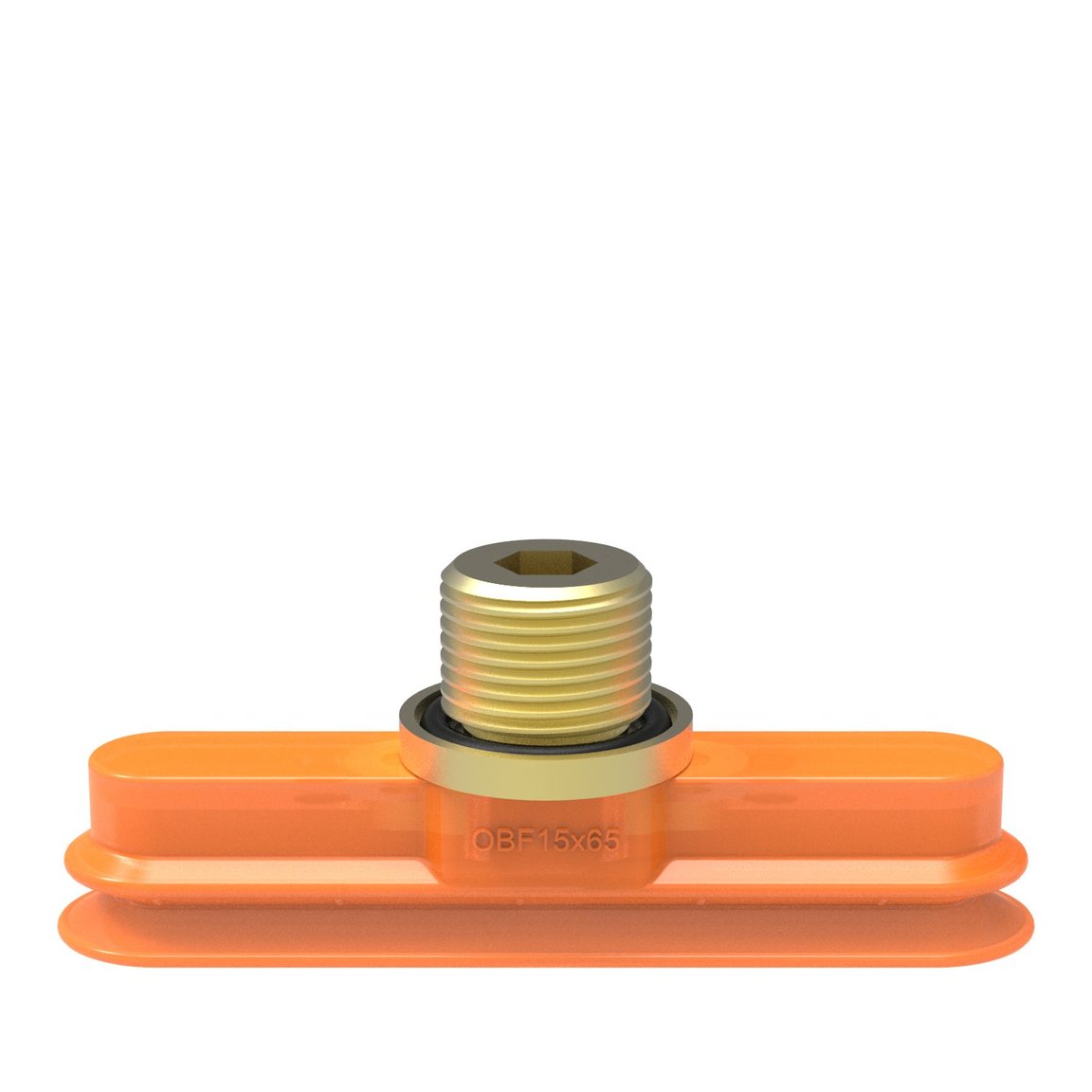

Suction cup OBF15x65P Polyurethane 60, G1/4" male
Login or create account to access all our content and features!
Variants
- 0207607
- 0207609
- 0207605
- 0207615
- 0207613
- 0209502
- 0207611
- 0207599
- 0207603
Automobilbau
- Karosserieseiten und Rahmen
- Abstapeln
- Ergonomische Werkzeuge für die Türmontage/-demontage
- Montage und Installation von Treibstofftanks
- Montage und Installation von Glasteilen
General
Material
Polyurethan (PU)
Characteristics
Öliges Blech
Saugnapfmodell
OBF
Volumen
2.6 cm³
Gewicht, min.
26 g
Fitting
Material
Brass
Befestigungsoptionen
Kein
Anschlußgewinde
1/4"
Befestigungsart
Aussengewinde
Befestigungstyp
G-Gewinde
Dimension
Höhe
26.1 mm
Länge
66 mm
Länge, betätigt
66.5 mm
Weite
15 mm
Weite, betätigt
15 mm
Performance - lifting forces
OBF15x65P Oily metal sheet
60 -kPa
31 N
7 N
90 -kPa
41 N
8 N
Performance - lifting forces
OBF15x65P Dry metal sheet
60 -kPa
41 N
31 N
90 -kPa
52 N
35 N
Material
Name
Polyurethane (PU60)
Farbe
Orange
Temperature
50 - 122 °F
Härtegrad
60 °Shore A
Material resistance
Alkohol
n/a
Konzentrierte Säuren
+
Etanol
+
Hydrolyse
+
Metanol
-
Öl
+++
Oxidation
-
Benzin
+
Verschleißfestigkeit
+++
+++
