Item number: 0210627
9 Variants

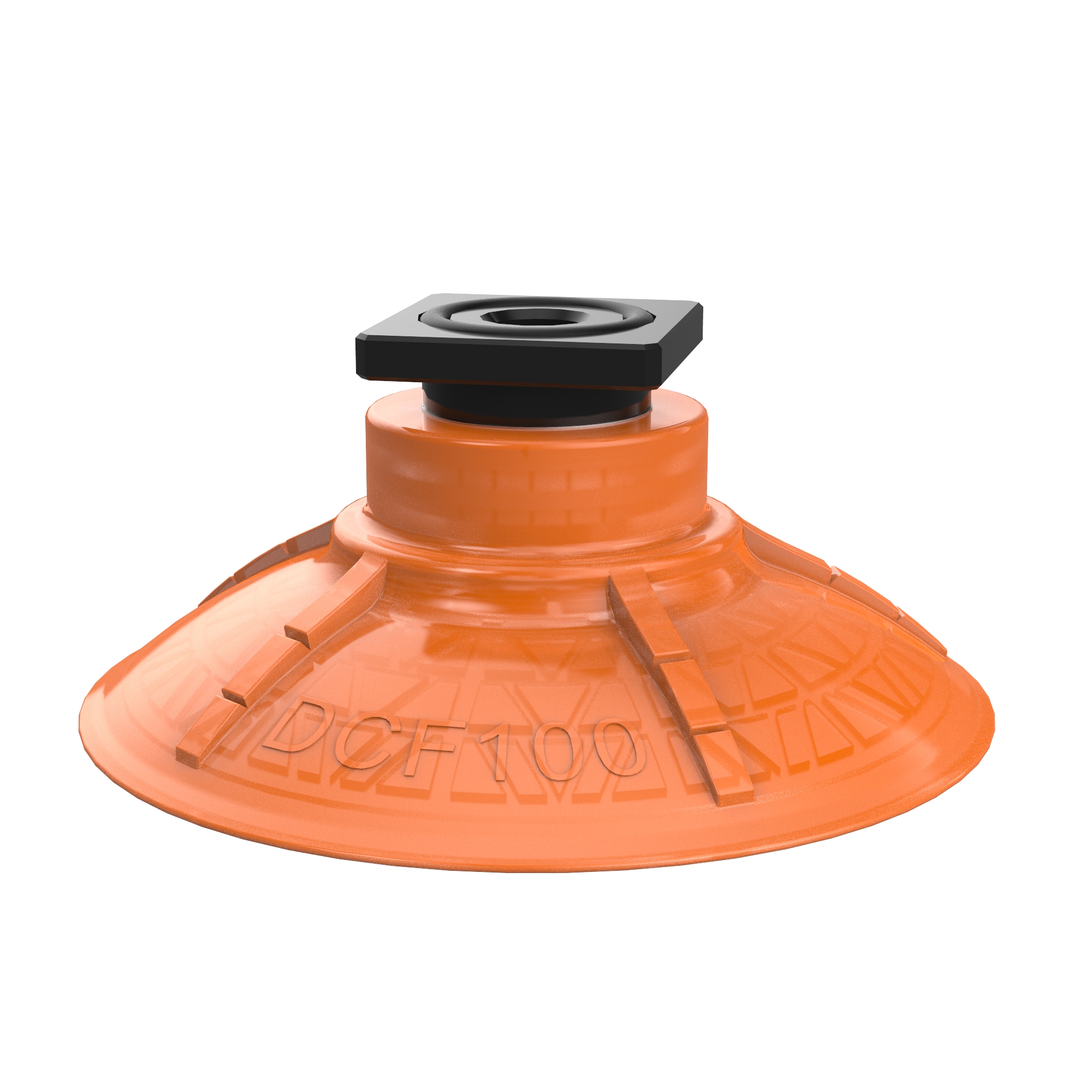

Suction cup DCF100P Polyurethane 60, T-slot with mesh filter

Login or create account to access all our content and features!

Variants

  • 0210172
  • 0210620
  • 0210621
  • 0210622
  • 0210623
  • 0210624
  • 0210625
  • 0210626
  • 0210627

Features

  • Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
  • Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
  • Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
  • Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
  • Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
  • DURAFLEX® is a material that features the elasticity of rubber and wear resistance of polyurethane. The material has a fantastic elastic memory, even after hundreds of thousand cycles.
