Item number: 0122288
7 Variants

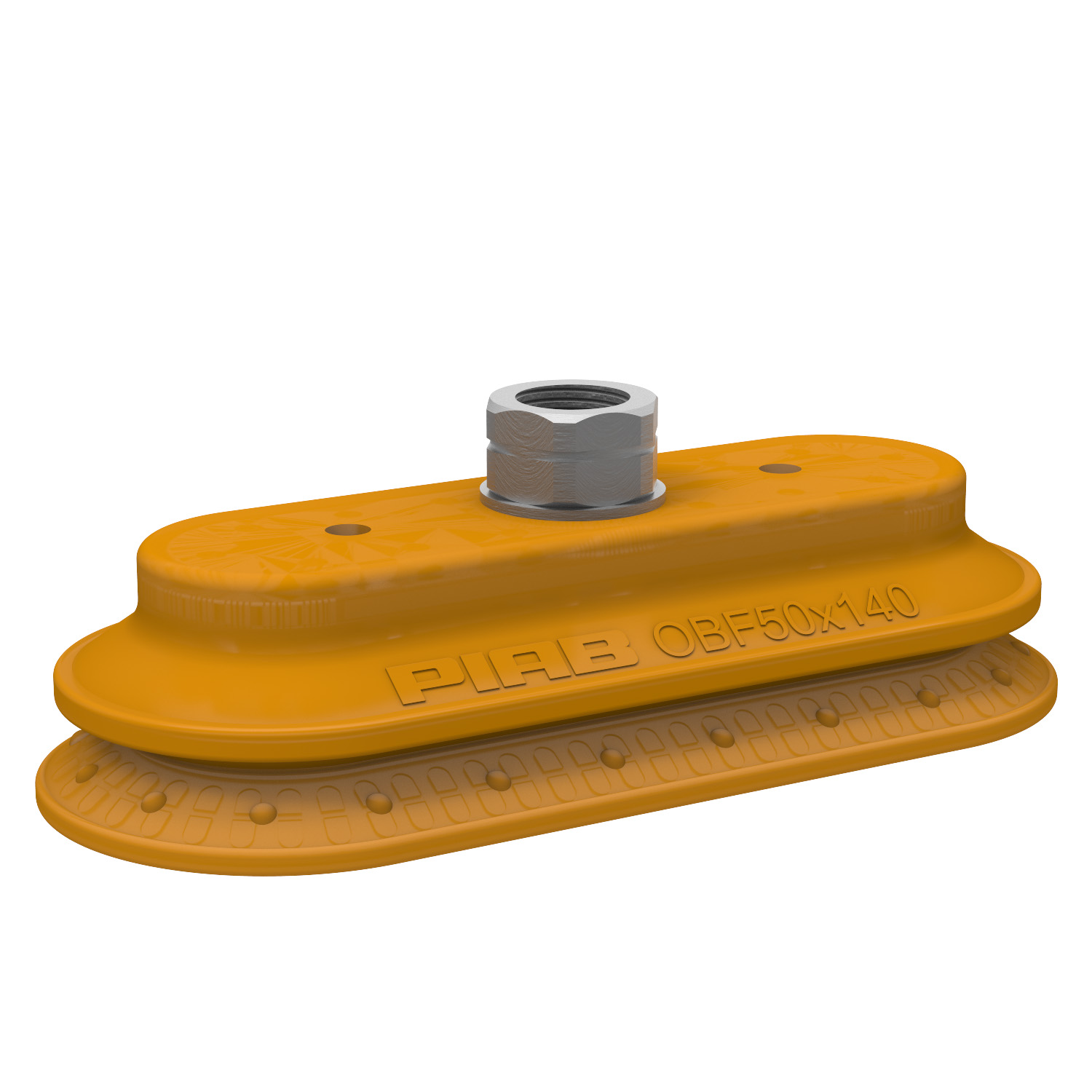

Suction cup OBF50X140P Polyurethane 55/60, 3/8" NPT female
专为油质表面设计的摩擦吸盘,适用于搬运金属成型工艺中的板材。归功于其强劲的油质表面抓取性能,该吸盘的剪切力承受能力普遍达到同类传统吸盘的2到4倍。OBF-P吸盘专为带平整和略凸表面的椭圆形工件而设计,如汽车行业中常见的车身零件。可搬运存在高度差异的工件。这种DURAFLEX®吸盘采用专门研制的无痕材料制成,将橡胶的弹性...
Read more
Login or create account to access all our content and features!
Variants
- 0122288
- 0119125
- 0121437
- 0119127
- 0213931
- 0213917
- 0213921
汽车
- 车身和车架
- 卸垛
- 车门开/关人体工学工具
- 气罐组装与安装
- 玻璃组装与安装
General
物料
PU型聚氨酯
Characteristics
油质钣金
吸盘型号
OBF
容积
95 cm³
最小重量
172 - 190 g
Fitting
接头选件
无
接头尺寸
3/8"
接头类型
内螺纹
接头类型
NPT螺纹
Dimension
高度
49.5 mm
长度
157 mm
宽度 (1)
67 mm
Performance - lifting forces
OBF50x140P Oily steel plate
60 -kPa
246 N
271 N
90 -kPa
372 N
347 N
Performance - lifting forces
OBF50x140P Dry metal sheet
60 -kPa
325 N
328 N
90 -kPa
438 N
415 N
Material
型号
Polyurethane (PU55)
颜色
Orange
Temperature
50 - 122 °F
硬度
55 °Shore A
Material
型号
Polyurethane (PU60)
颜色
GreenTransparent
Temperature
50 - 122 °F
硬度
60 °Shore A
Material resistance
酒精
n/a
浓酸
+
乙醇
+
水解作用
+
甲醇
-
油
+++
氧化
-
汽油
+
耐磨性
+++
+++
Material resistance
酒精
n/a
浓酸
+
乙醇
+
水解作用
+
甲醇
-
油
+++
氧化
-
汽油
+
耐磨性
+++
+++
