Item no: 0200443

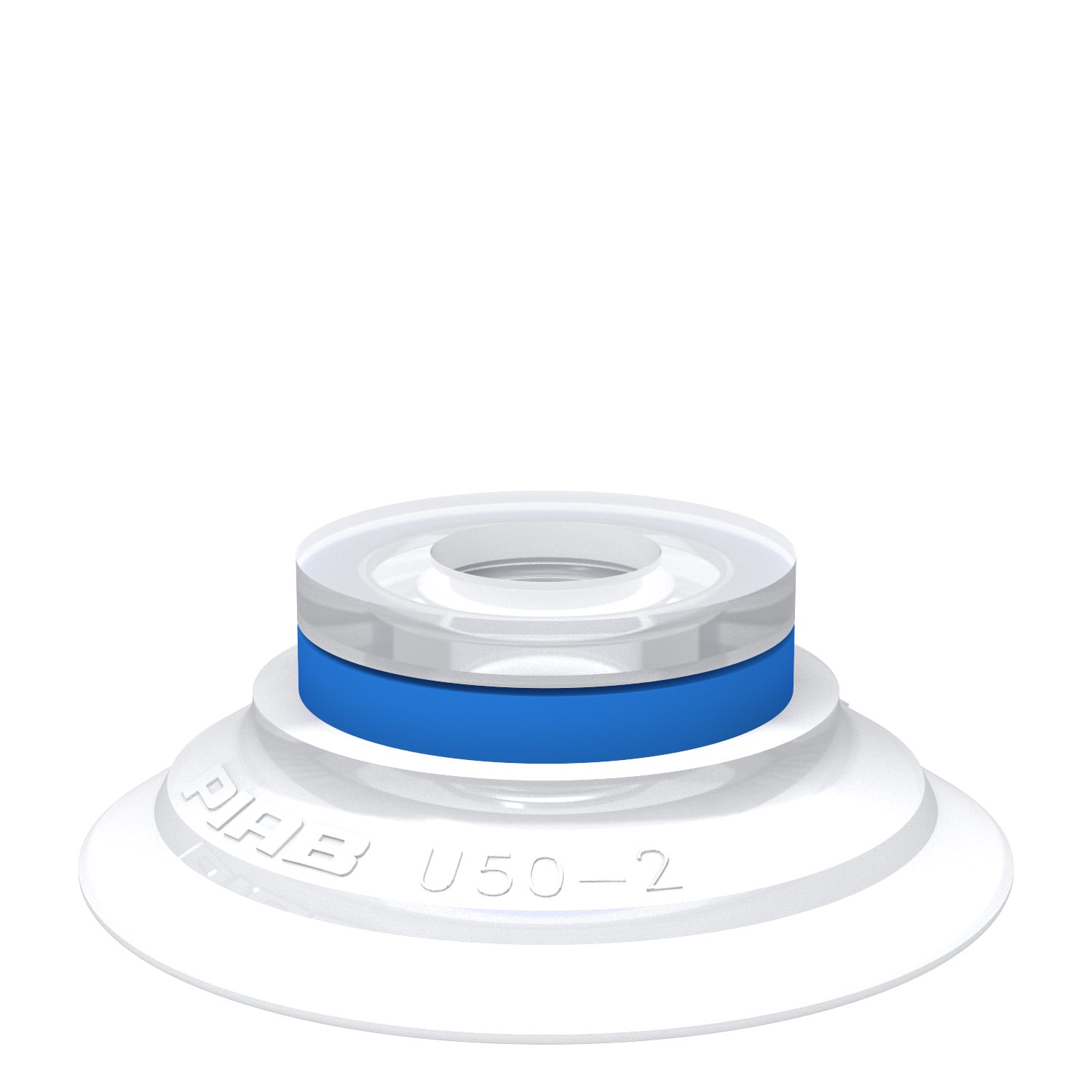

Suction cup U50-2 Silicone FCM
The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. This cup is transparent with no addition of pigments. For handling objects with flat or slightly curved surfaces.
Read more-
Description
The material is approved by FDA (FDA 21 CFR 177.2600. ) and meets EU's regulation EU 1935/2004. This cup is transparent with no addition of pigments. For handling objects with flat or slightly curved surfaces.
-
Features
- The silicone material complies with FDA 21 CFR 177.2600 & EU 1935/2004.
- Suitable for objects with flat or slightly curved surfaces.
- Also used for concave objects.
-
Specifications
General
ApplicationFood contact materials (FDA & EU), non-detectableSuction cup shapeUniversalMaterialSilicone (SIL FDA)Suction cup modelUWeight10 gVolume12 cm³Suction cup modelU50-2Movement, vertical max.6 mmCurve radius, min.35 mmFitting
Fitting optionNoneFitting sizeNoneFitting styleNoneFitting typeNoneDimension
Height17.5 mmOuter diameter51.4 mmPerformance - lifting forces
U50-2
20 -kPa60 -kPa90 -kPa20 N37 N44 NMaterial
NameSILFDAColourTransparentTemperature-40 - 200 °CHardness50 °Shore ASILFDAAlcohol++Concentrated acids-Ethanoln/aHydrolysis+Methanoln/aOil-Oxidation+++Petrol-Wear resistance++Weather and ozone+++Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
-
